![Yamaha F200 AETX [14/90] Fig 6 valve](/img/pdf.png)
Yamaha F200 AETX [14/90] Fig 6 valve
![Yamaha F200 AETX [14/90] Fig 6 valve](/views2/1241098/page14/bge.png)
10

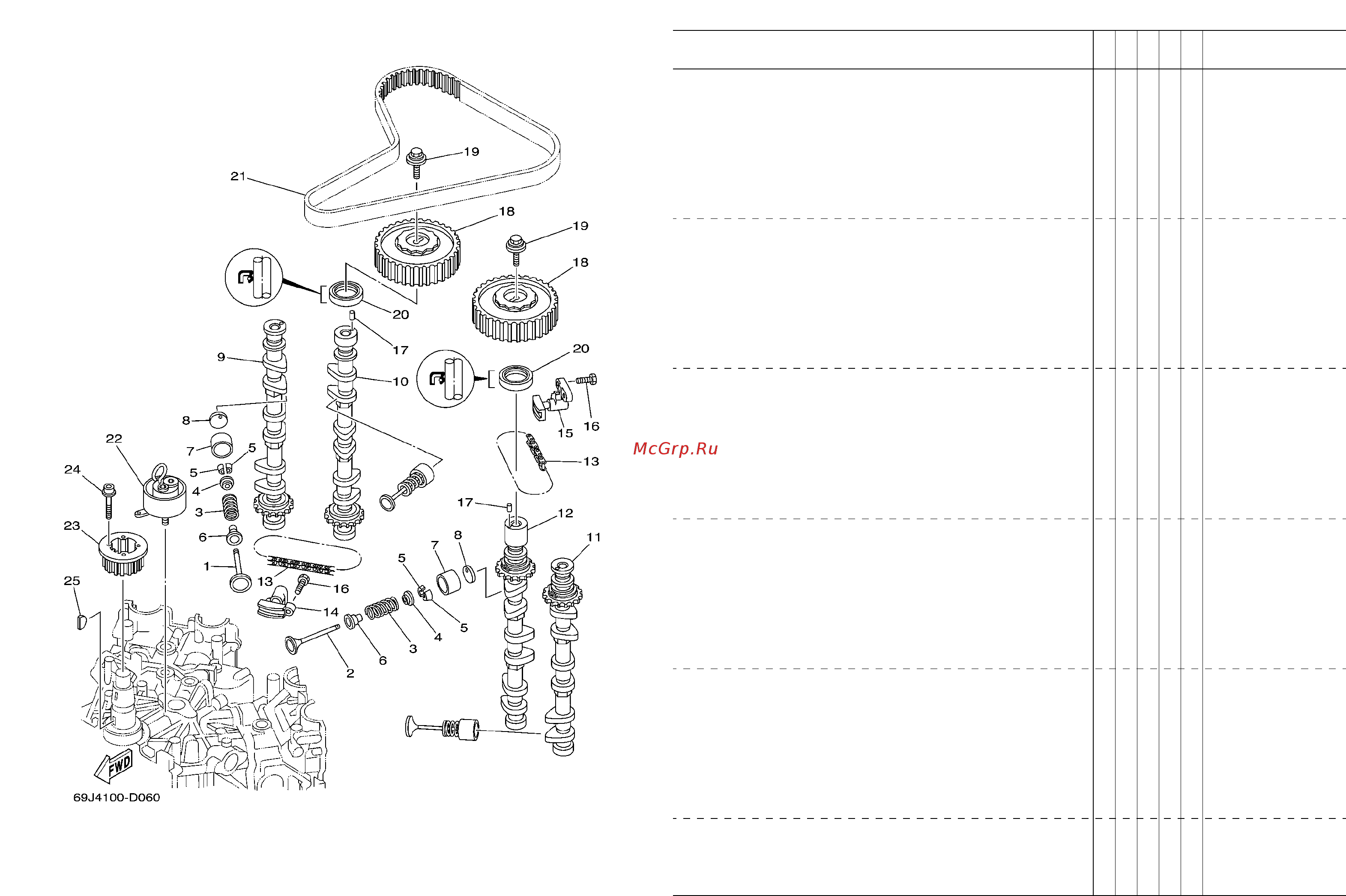

FIG. 6 VALVE
REF.
NO.
PART NO. DESCRIPTION
69J9
60L9
69K9
60M9
REMARKS
1
69J–12111–00
VALVE, INTAKE 12 12 12 12
2
69J–12121–00
VALVE, EXHAUST 12 12 12 12
3
69J–12113–01
SPRING, VALVE INNER 24 24 24 24
4
69J–12117–01
RETAINER, VALVE SPRING 24 24 24 24
5
69J–12118–00
COTTER, VALVE 48 48 48 48
6
69J–12119–00
SEAL, VALVE STEM 24 24 24 24
7
69J–12153–00
LIFTER, VALVE 24 24 24 24
8
6S1–12168–00
PAD, ADJUSTING (2.320) 24 24 24 24 UR
6S1–12168–10
PAD, ADJUSTING (2.340) 24 24 24 24 UR
6S1–12168–20
PAD, ADJUSTING (2.360) 24 24 24 24 UR
6S1–12168–30
PAD, ADJUSTING (2.380) 24 24 24 24 UR
6S1–12168–40
PAD, ADJUSTING (2.400) 24 24 24 24 UR
6S1–12168–50
PAD, ADJUSTING (2.420) 24 24 24 24 UR
6S1–12168–60
PAD, ADJUSTING (2.440) 24 24 24 24 UR
6S1–12168–70
PAD, ADJUSTING (2.460) 24 24 24 24 UR
6S1–12168–80
PAD, ADJUSTING (2.480) 24 24 24 24 UR
6S1–12168–90
PAD, ADJUSTING (2.500) 24 24 24 24 UR
6S1–12168–A0
PAD, ADJUSTING (2.520) 24 24 24 24 UR
6S1–12168–B0
PAD, ADJUSTING (2.540) 24 24 24 24 UR
6S1–12168–C0
PAD, ADJUSTING (2.560) 24 24 24 24 UR
6S1–12168–D0
PAD, ADJUSTING (2.580) 24 24 24 24 UR
6S1–12168–E0
PAD, ADJUSTING (2.600) 24 24 24 24 UR
6S1–12168–F0
PAD, ADJUSTING (2.620) 24 24 24 24 UR
6S1–12168–G0
PAD, ADJUSTING (2.640) 24 24 24 24 UR
6S1–12168–H0
PAD, ADJUSTING (2.660) 24 24 24 24 UR
6S1–12168–J0
PAD, ADJUSTING (2.680) 24 24 24 24 UR
6S1–12168–K0
PAD, ADJUSTING (2.700) 24 24 24 24 UR
