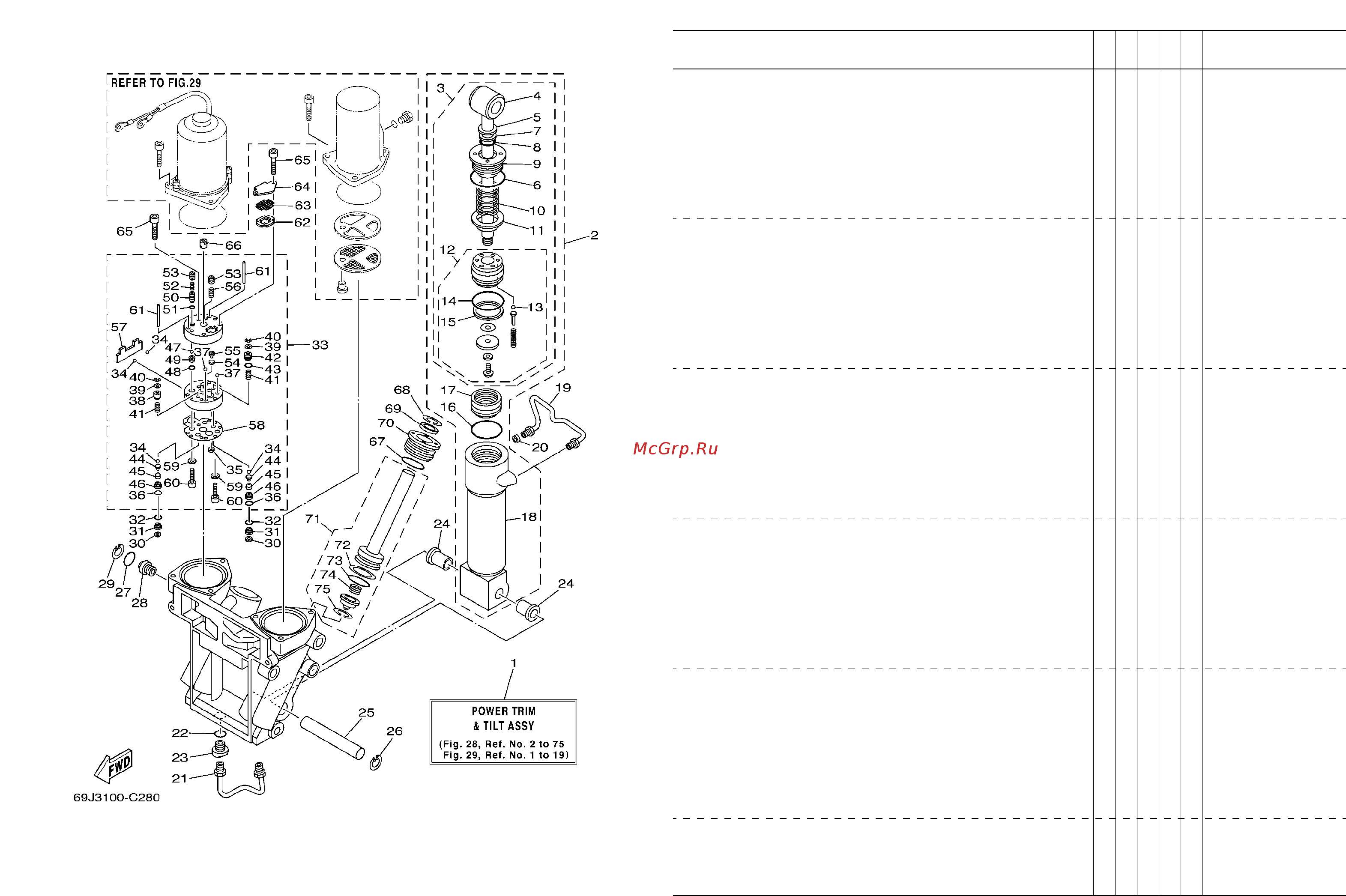

FIG. 28 POWER TRIM & TILT ASSY 1
REF.
NO.
PART NO. DESCRIPTION
69J9
60L9
69K9
60M9
REMARKS
1
69J–43800–02–8D
POWER TRIM & TILT ASSY 1 1 1 1
2
69J–43840–01
POWER TILT ASSY 1 1 1 1
3
69J–43810–01
.TILT PISTON SUB ASSY 1 1 1 1
4
69J–43801–00
..ROD 1 1 1 1
5
93106–19N50
..OIL SEAL 1 1 1 1
6
6H1–43861–00
..O-RING 1 1 1 1
7
6H1–43872–00
..RING, BACK UP 1 1 1 1
8
61A–4389H–00
..O-RING 1 1 1 1
9
61A–43811–00
..SCREW, CYLINDER END 1 1 1 1
10
69J–4384H–00
..SPRING 1 1 1 1
11
69J–4382E–00
..ADAPTOR 2 1 1 1 1
12
69J–4380P–01
..PISTON SUB ASSY 1 1 1 1
13
93505–32038
...BALL 5 5 5 5
14
61A–43861–00
...O-RING 1 1 1 1
15
61A–43871–00
...RING, BACK UP 1 1 1 1
16
61A–43861–00
.O-RING 1 1 1 1
17
6H1–43814–00
.PISTON, FREE 1 1 1 1
18
61A–43813–01
.CYLINDER, TILT 1 1 1 1
19
61A–43835–01
PIPE 1 1 1 1
20
69J–4388J–00
PLUG 2 1 1 1 1
21
69J–43833–00
PIPE 1 1 1 1
22
93210–17239
O-RING 1 1 1 1
23
69J–4388E–00
BOLT ,SCREW 1 1 1 1
24
90386–18M14
BUSH 2 2 2 2
25
61A–43818–00
PIN, LOWER SHOCK MOUNT 1 1 1 1
26
61A–43876–00
RING, SNAP 1111
27
93210–18397
O-RING 1 1 1 1
