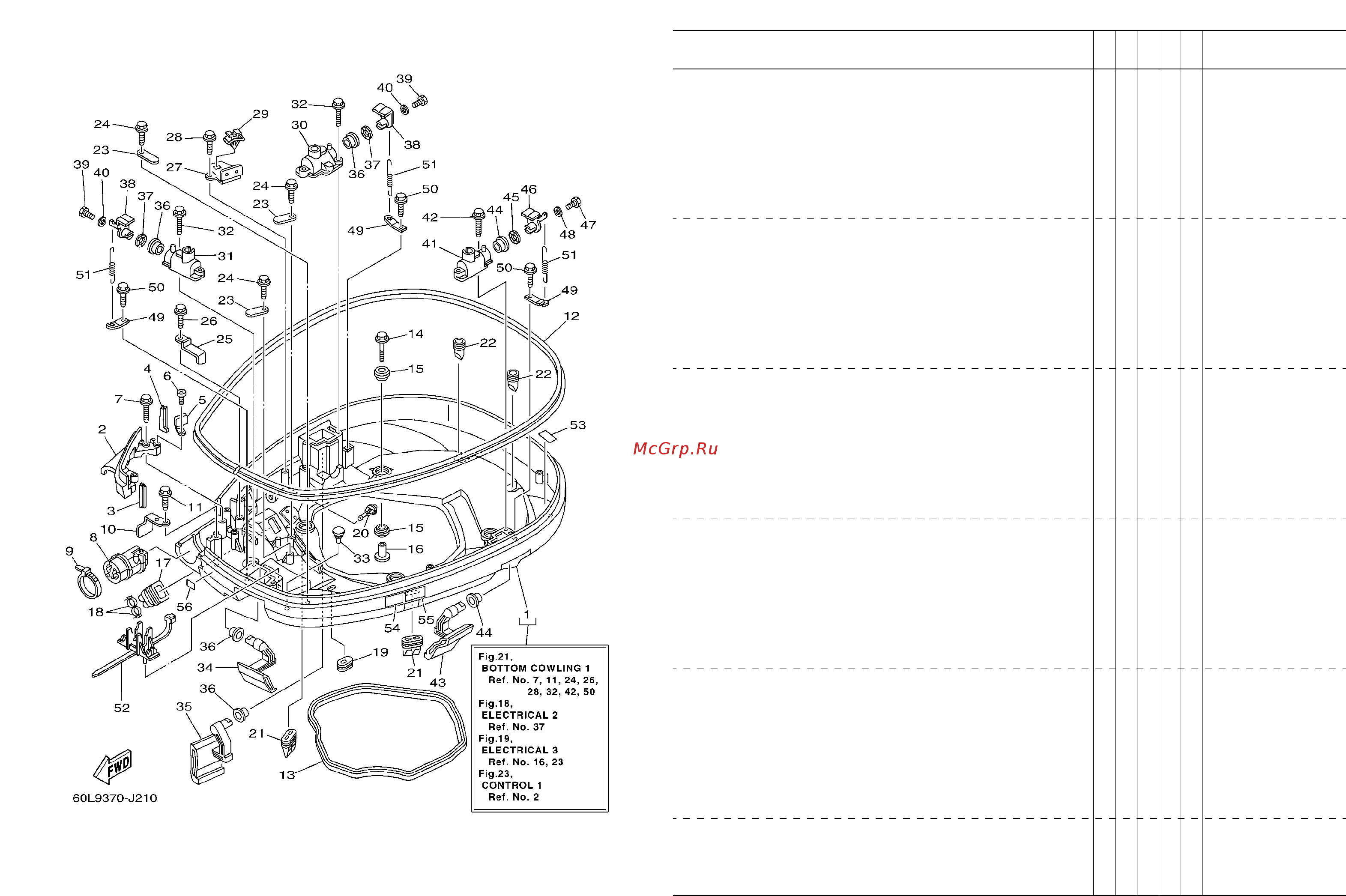

FIG. 21 BOTTOM COWLING 1
REF.
NO.
PART NO. DESCRIPTION
69J9
60L9
69K9
60M9
REMARKS
1
69J–42710–02–8D
BOTTOM COWLING ASSY 1 1 1 1
2
69J–42738–02–8D
PLATE, FITTING 1 1 1 1
3
6P2–42717–00
RUBBER, SEAL 2 1 1 1 1
4
6P2–42718–00
RUBBER, SEAL 3 1 1 1 1
5
69J–42744–11
STAY 1111
6
97885–06010
SCREW, PAN HEAD 1 1 1 1
7
90109–06M82
BOLT 2222
8
69J–42725–01
GROMMET 1 1 1 1
9
90465–13M30
CLAMP 1 1 1 1
10
64D–42738–10
PLATE, FITTING 1 1 1 1
11
90109–06M82
BOLT 1111
12
6P2–42615–00
SEAL 1 1 1 1
13
69J–42716–00
RUBBER, SEAL 1 1 1 1 1
14
90119–08M22
BOLT, WITH WASHER 4 4 4 4
15
90480–22M81
GROMMET 8 8 8 8
16
90387–08M37
COLLAR 4444
17
6H1–42726–21
GROMMET 1 1 1 1
18
90465–11M10
CLAMP 2 2 2 2
19
61A–42727–00
GROMMET 1 1 1 1
20
6P2–44391–00
NIPPLE, HOSE 1 1 1 1
21
69J–42717–00
RUBBER, SEAL 2 2 2 2 2
22
61A–42717–00
RUBBER, SEAL 2 2 2 2 2
23
6E5–82588–00
PLATE 3 3 3 3
24
90109–06M81
BOLT 3333
25
90462–20001
CLAMP 1 1 1 1
26
90109–06M86
BOLT 1111
27
69J–82554–01
STAY, NEUTRAL SWITCH 1 1 1 1
