Fluke 726 [39/80] Lower display frequency measurement test 725 and 726

Calibrators

Performance Tests

Lower Display Frequency Measurement Test (725 and 726)

1. Set the 5520A to source a 10 kHz, 1 V peak-to-peak square wave (use the blue

softkey under the wave type to change the wave shape).

2. Press  on the UUT (for 726) until MEASURE and kHz appear on the lower

display.

3. Make the connections shown in Figure 6.

4. Verify that the UUT frequency reads between 9.98 kHz and 10.02 kHz.

5. Press STBY on the 5520A.

aal04f.eps

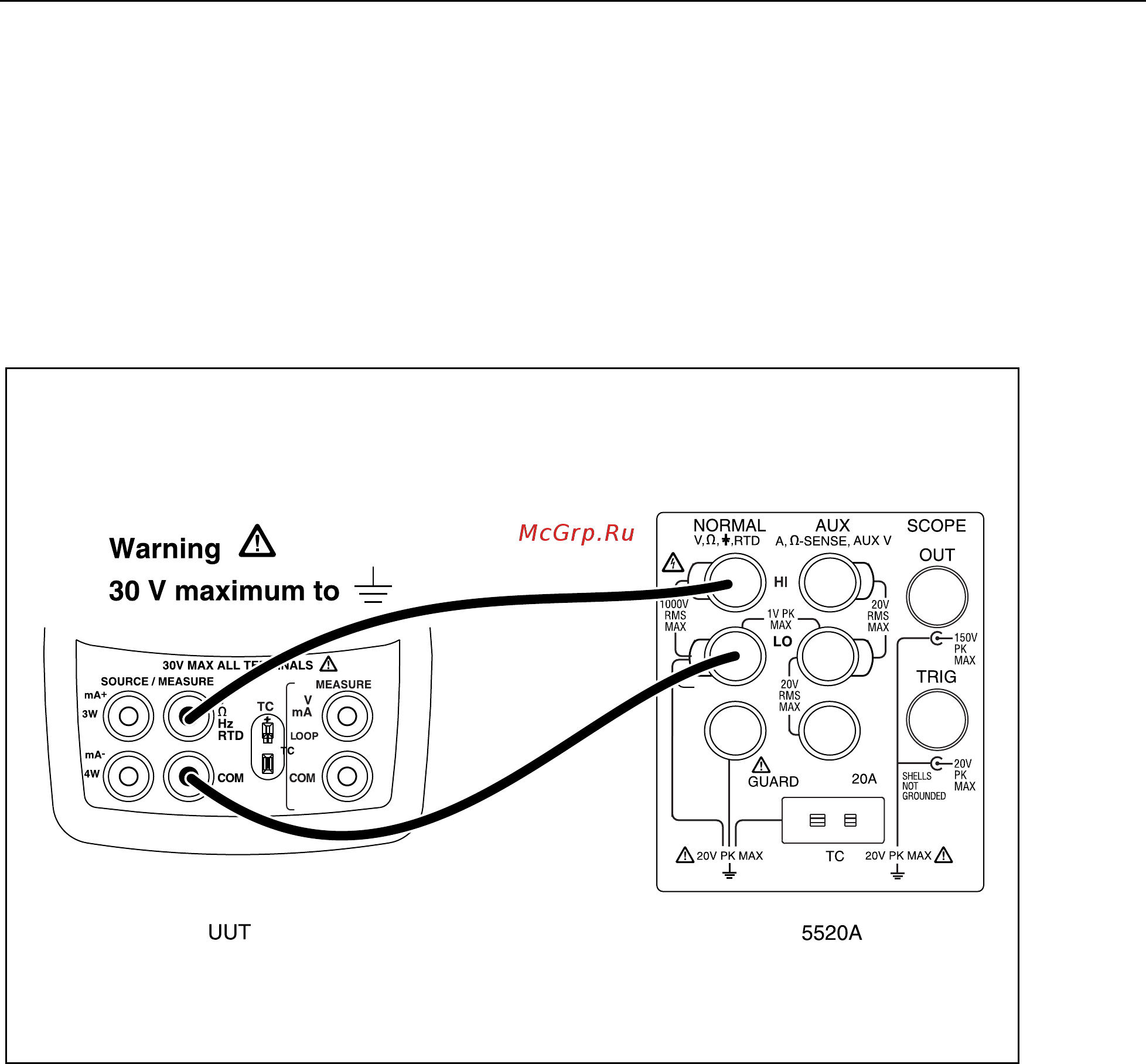

Figure 6. Lower Display Frequency Test Connections
