724/725/726

Calibration Manual

Cal RTD Low Range

Connect the UUT as shown in Figure 21.

aal09f.eps

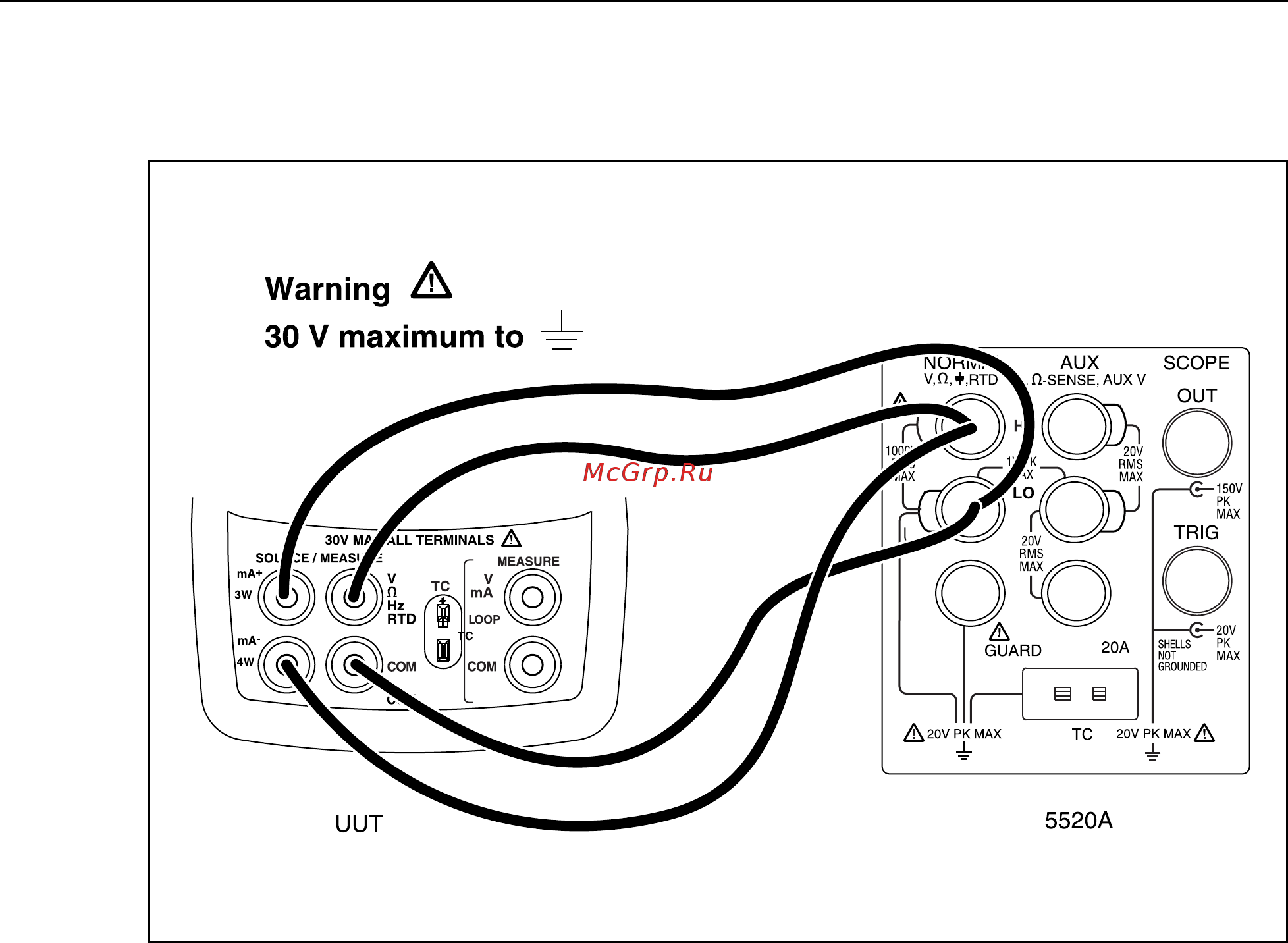

Figure 21. RTD Low Range Calibration Connections

From the Calibration Menu, enter the cal step for Cal RTD Low Range. The PC displays:

Apply 15 ohms to 4 wire jacks

press space bar to continue

Set the Fluke 5520A to output 15.00 Ohms, 2-wire output with 2-wire comp off, then

press the space bar on the PC. After a short while, the PC displays:

Apply 350 ohms to 4 wire jacks

press space bar to continue

Set the Fluke 5520A to output 350.00 Ohms then press the space bar on the PC. After a

short while, the Calibrator will return to the Calibration Menu.
