Fluke 726 [67/80] Calibrating isolated voltage input

Calibrators

Calibration Adjustment

Calibrating Isolated Voltage Input

Connect the UUT as shown in Figure 25.

aal03f.eps

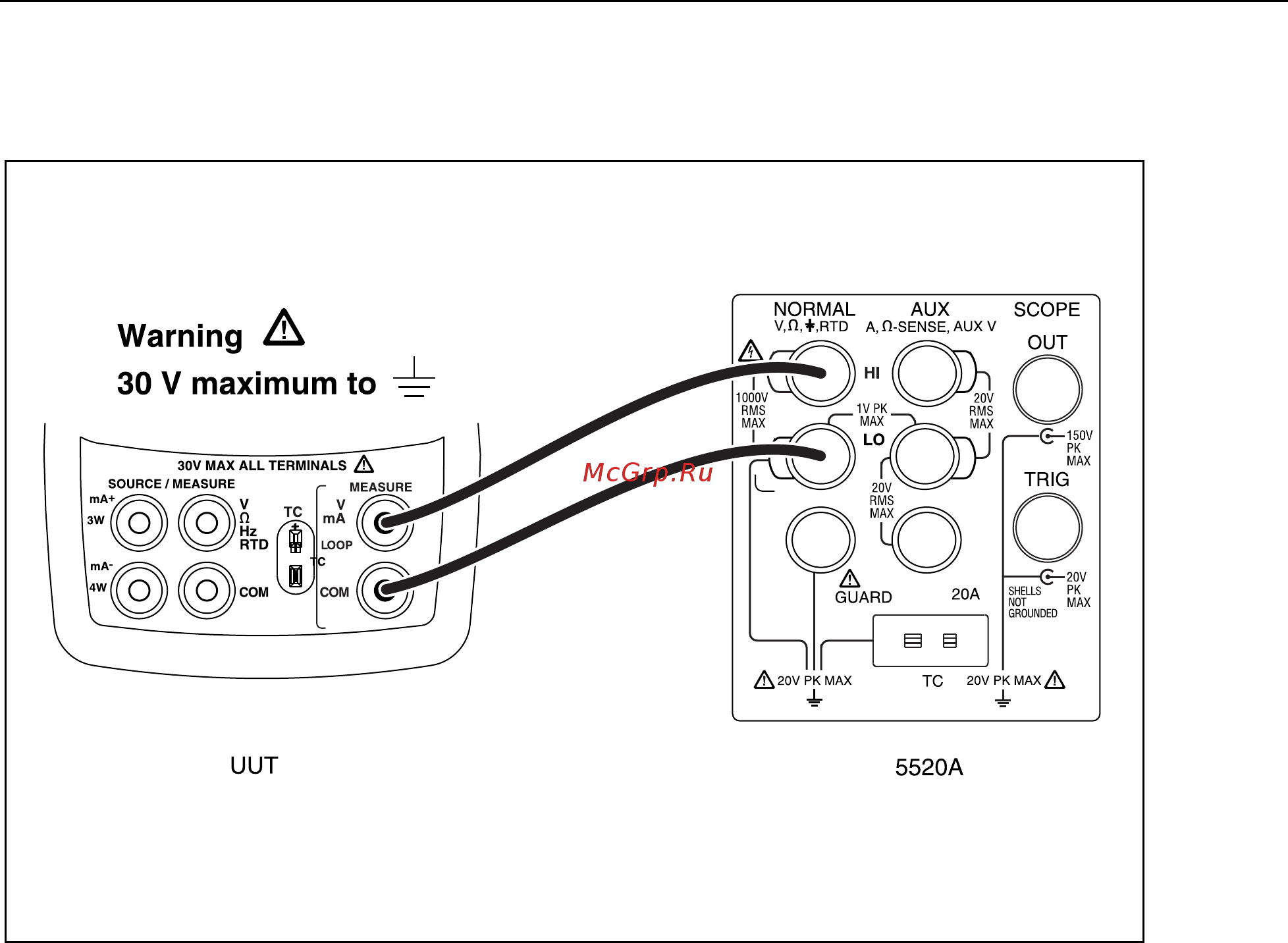

Figure 25. Isolated Voltage Input Calibration Connections

After making the proper connections, type “2” then press the Enter key on the PC

keyboard. Input directions are displayed at the bottom of the calibration menu:

Enter Selection:

Input 0 Volts, Press Enter When Stable

Input 30 Volts, Press Enter When Stable

Use the 5520A to input 0 V and then 30 V.
