Performance Tests

Lower Display mA Source Tests (725 and 726)

1. Press  on the UUT until SOURCE appears on the lower display; then press 

until mA appears on the lower display. If necessary, press  until SOURCE appears

on the lower display.

2. Set the Fluke 8508A to measure dc current.

3. Connect the UUT and the Fluke 8508A as shown in Figure 11.

4. Use the arrow keys on the UUT to set the UUT to the currents in Table 15 and verify

that the Fluke 8508A readings are within the limits shown.

aal12f.eps

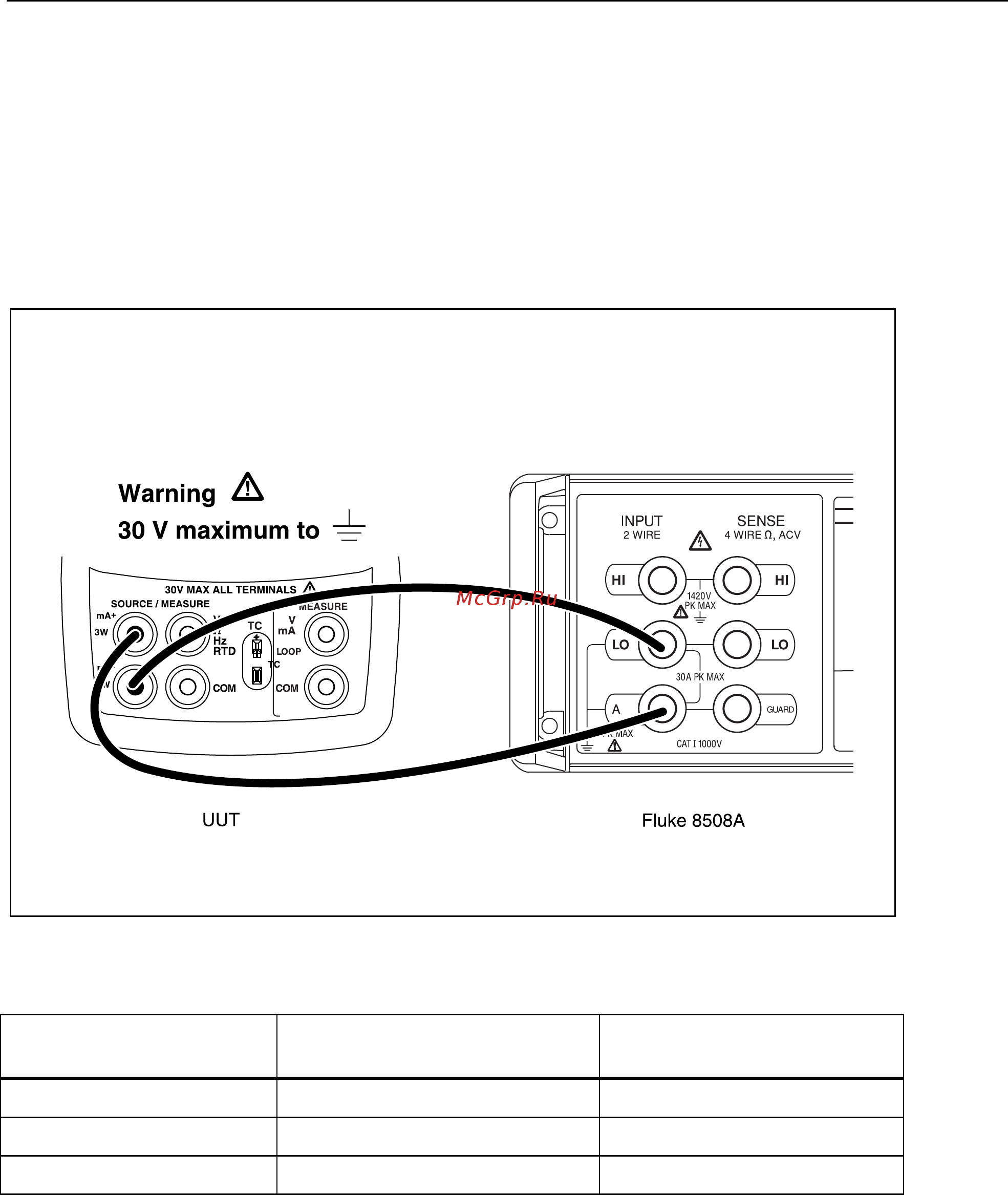

Figure 11. Lower Display mA Source Connections

Table 15. Lower Display mA Source Readings

UUT Outputs

724/725

Fluke 8508A Readings

726

Fluke 8508A Readings

4.000 mA 3.9972 mA to 4.0028 mA 3.9976 mA to 4.0024 mA

12.000 mA 11.9956 mA to 12.0044 mA 11.9968 mA to 12.0032 mA

24.000 mA 23.9932 mA to 24.0068 mA 23.9956 mA to 24.0044 mA
