Fluke 726 [53/80] Cal ma input fluke 725 only

Calibrators

Calibration Adjustment

Cal mA Input (Fluke 725 Only)

Connect the UUT as shown in Figure 15.

aal06f.eps

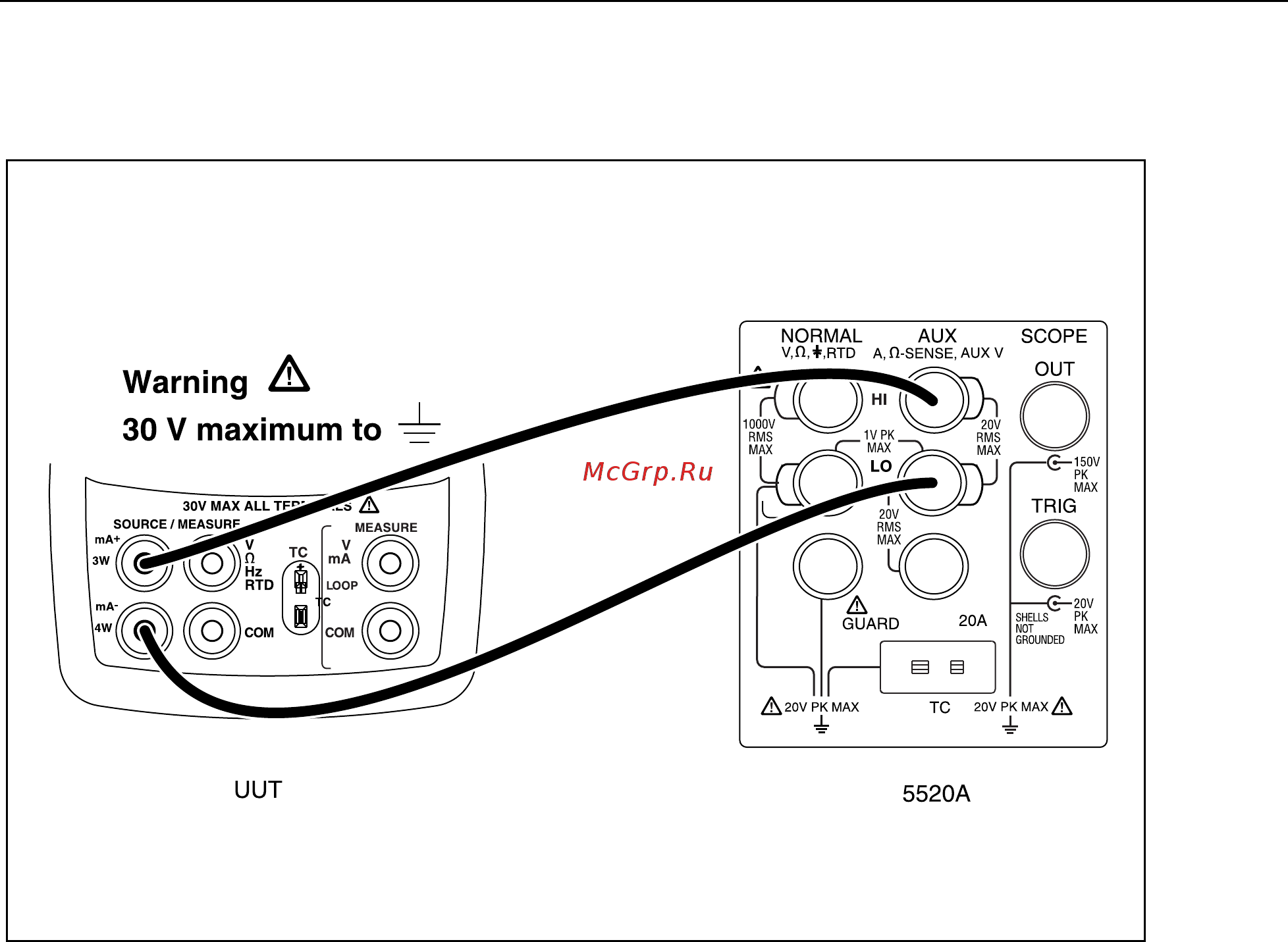

Figure 15. mA Input Calibration Connections

From the Calibration Menu, type the cal step for Cal mA Input. The PC displays:

Enter 0 ma - press space bar to continue

Set the Fluke 5520A to output 0.000 mA, let the reading settle a few seconds, then press

the space bar on the PC. After a short while, the PC displays the following calibration

constant and new prompt:

Offset = -337

Enter 24.00 ma - press space bar to continue

Set the Fluke 5520A to output 24.000 mA, let the reading settle a few seconds, then

press the space bar on the PC. After a short while, the UUT displays the following

calibration constants and new prompt:

diff = (Counts - Offset)

8106924 = 8106587 - -337

mA per count = 0.000003

press space bar to continue

Press the space bar to return to the Calibration Menu.
