Fluke 726 [71/80] Calibrating voltage output

Calibrators

Calibration Adjustment

Calibrating Voltage Output

Connect the UUT as shown in Figure 29.

aal08f.eps

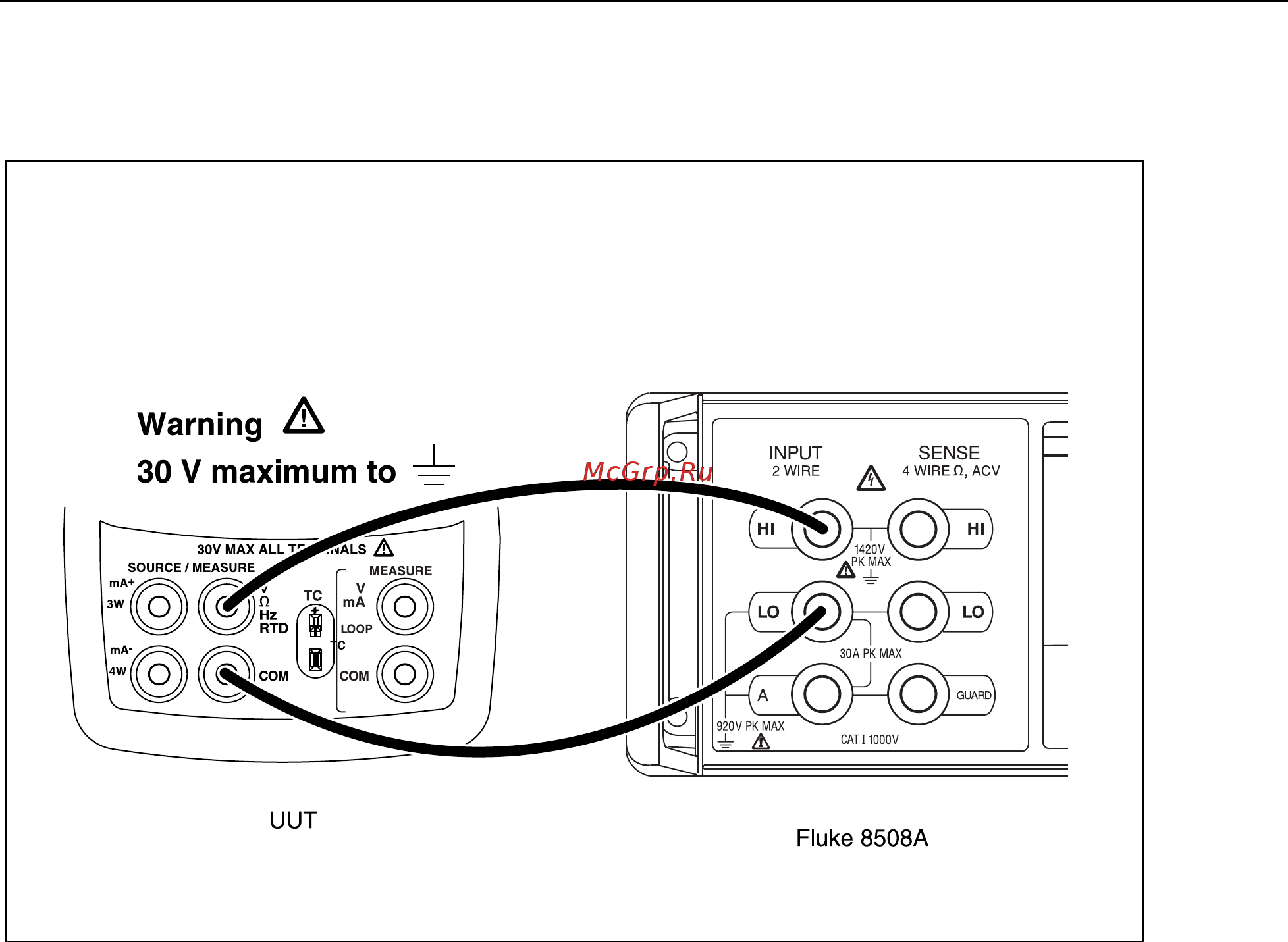

Figure 29. Voltage Output Calibration Connections

After making the proper connections, type “6” for 726/725 or “4” for 724, and then press

the Enter key on the PC keyboard. Input directions are displayed at the bottom of the

calibration menu:

Enter Selection:

First Calibration Point. Enter Volts displayed:

Second Calibration Point. Enter Volts displayed:

Use the 8508A to measure the two calibration points. Enter each of the two calibration

points as prompted.
