Fluke 726 [74/80] Calibrating ohms measure

724/725/726

Calibration Manual

Calibrating Ohms Measure

Connect the UUT as shown in Figure 32.

aal09f.eps

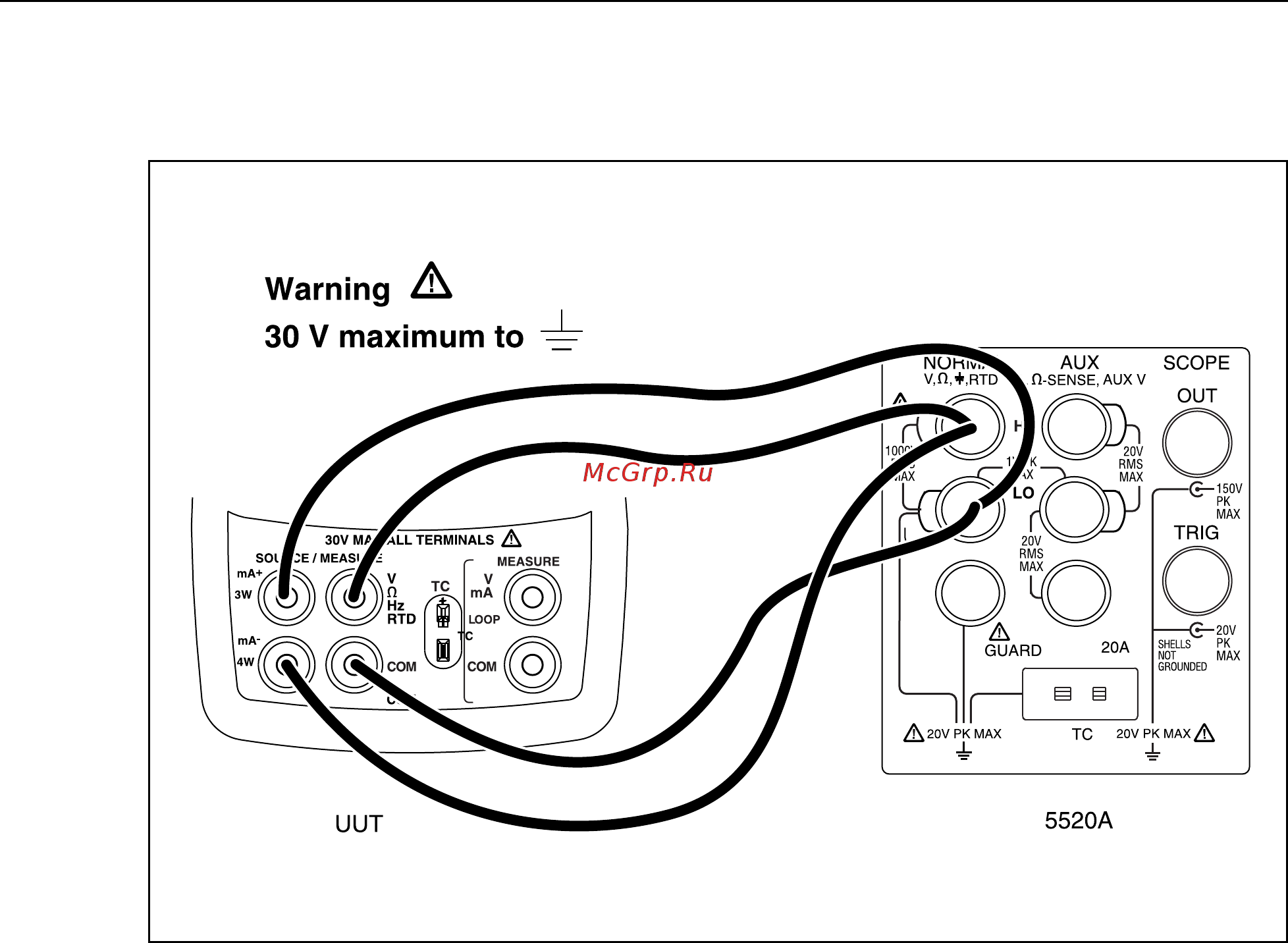

Figure 32. Ohms Measure Calibration Connections

After making the proper connections, type “9” for 726/725 or “6” for 724, and then press

the Enter key on the PC keyboard. Input directions are displayed at the bottom of the

calibration menu:

Enter Selection:

Input 15 Ohms, Press Enter When Stable

Input 400 Ohms, Press Enter When Stable

Input 4000 Ohms, Press Enter When Stable

Use the 5520A to input 15 Ω, 400 Ω, and finally 4000 Ω. The Enter key must be applied

prior to advancing between steps.
