Fluke 726 [58/80] Cal ohms hi source

724/725/726

Calibration Manual

Cal Ohms Hi Source

Connect the UUT as shown in Figure 20.

aal13f.eps

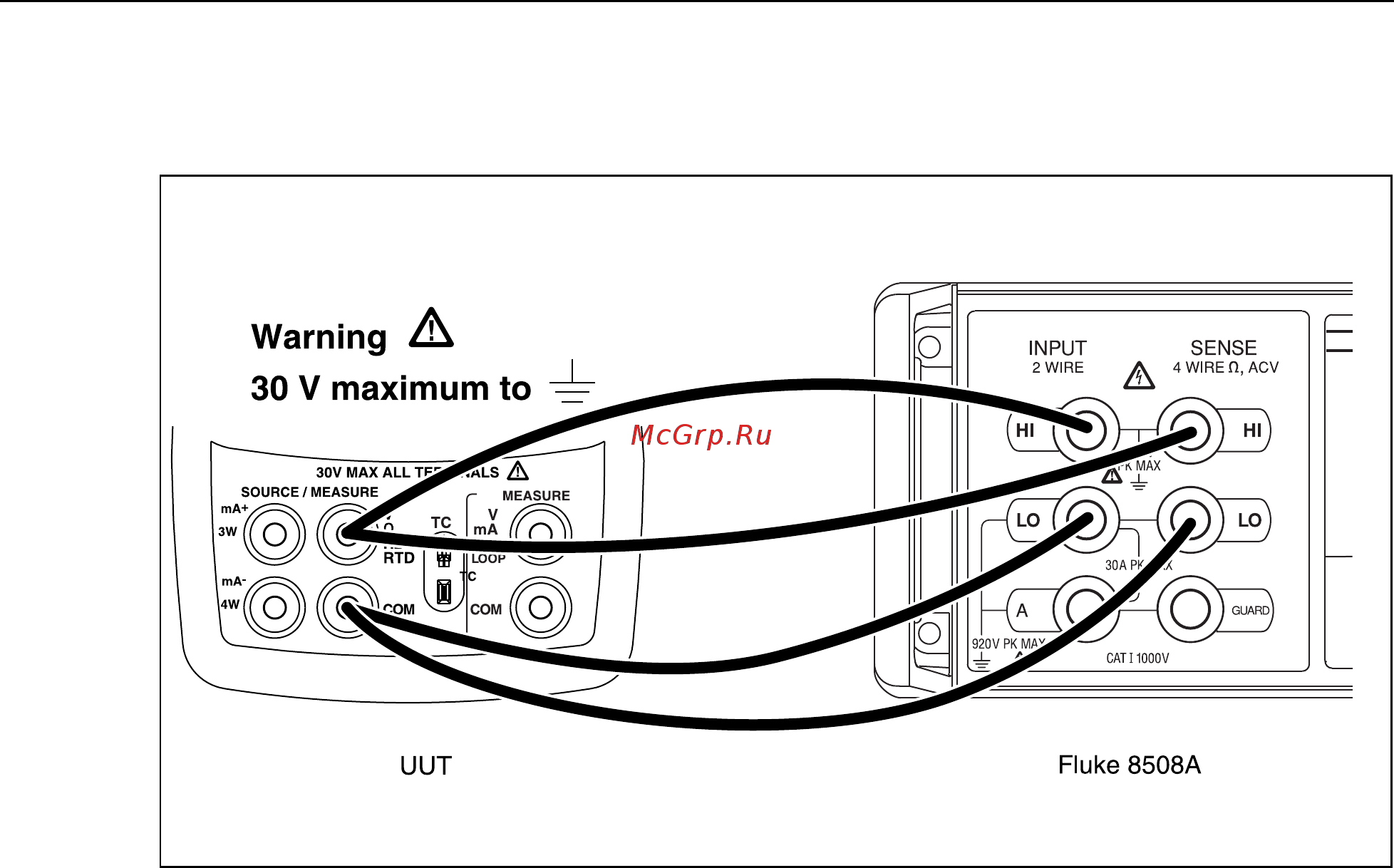

Figure 20. Ohms Hi Source Calibration Connections

From the Calibration Menu, enter the cal step for Cal Ohms Hi Source. The PC displays:

2500 into DAC. Enter Ohms displayed :

Set the Fluke 8508A to read 4-terminal Ohms. Lock the 8508A 20 kΩ range with LOI off.

When the reading on the Fluke 8508A has stabilized, enter the value in Ohms on the PC,

then press Enter. After a short while, the PC displays:

Max value into DAC. Enter Ohms value displayed :

Enter the resistance reading from the Fluke 8508A in the PC, then press Enter. After a

short while, the PC displays the following calibration constants and new prompt:

0.050685 = 3309.000015 - 0.365000 )/ 65279.00 Ohms per count = 0.050685

- press space bar to continue

Press the space bar to return to the Calibration Menu.
