724/725/726

Calibration Manual

Calibrating Thermocouple mV Input

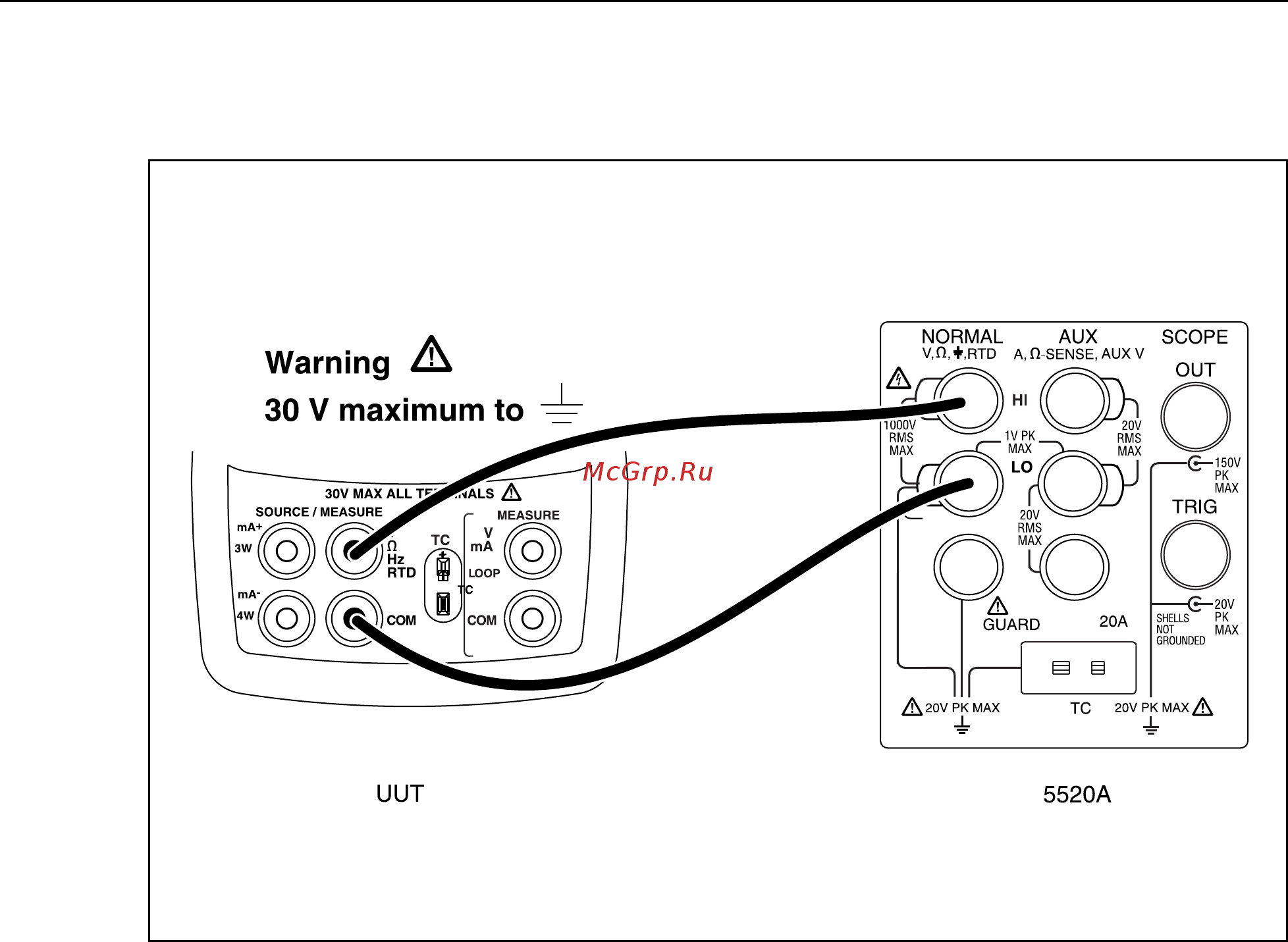

Connect the UUT as shown in Figure 34.

aal04f.eps

Figure 34. Thermocouple mV Input Calibration Connections

After making the proper connections, type “11” for 726/725 or “9” for 724, and then press

the Enter key on the PC keyboard. Input directions are displayed at the bottom of the

calibration menu:

Enter Selection:

Input –10mV, Press Enter When Stable

Input 90mV, Press Enter When Stable

Use the 5520A to input –10 mV and then 90 mV.

Note

A 725 with V3.0 prompts for 75 mV, but 90 mV should be applied. V3.1

shows the correct 90 mV applied.
