Fluke 726 [77/80] Calibrating thermocouple cjc

Calibrators

Calibration Adjustment

Calibrating Thermocouple CJC:

Connect the UUT as shown in Figure 35. For the lag bath setup, see Figure 36.

aal11f.eps

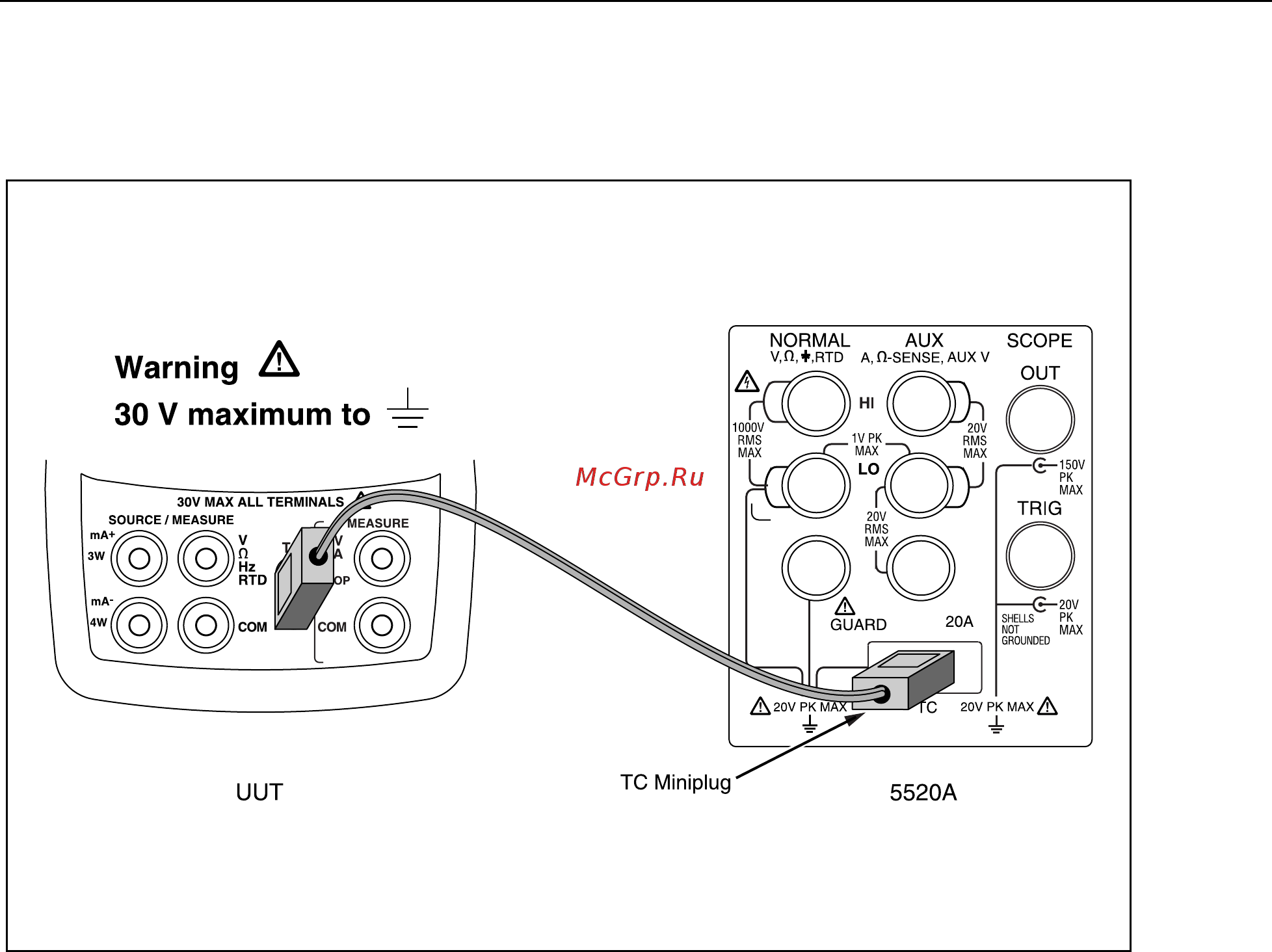

Figure 35. Thermocouple CJC Calibration Connections

The calibration of the TC CJC (Cold Junction Compensation) is a critical part of the

calibration process, it is important that the thermocouple junction be allowed to

completely stabilize. Usually this takes a minimum of five minutes.

After the proper connections have been made, type “12” for 726/725 or “10” for 724, and

then press the Enter key on the PC keyboard. Use a lag bath to source a stable

temperature the 726. Enter the value of the temperature and the main calibration menu

will reappear. The temperature scale used is ITS-90.
