Fluke 726 [63/80] Cal iso ma

Calibrators

Calibration Adjustment

Cal ISO mA

Connect the UUT as shown in Figure 23.

aal05f.eps

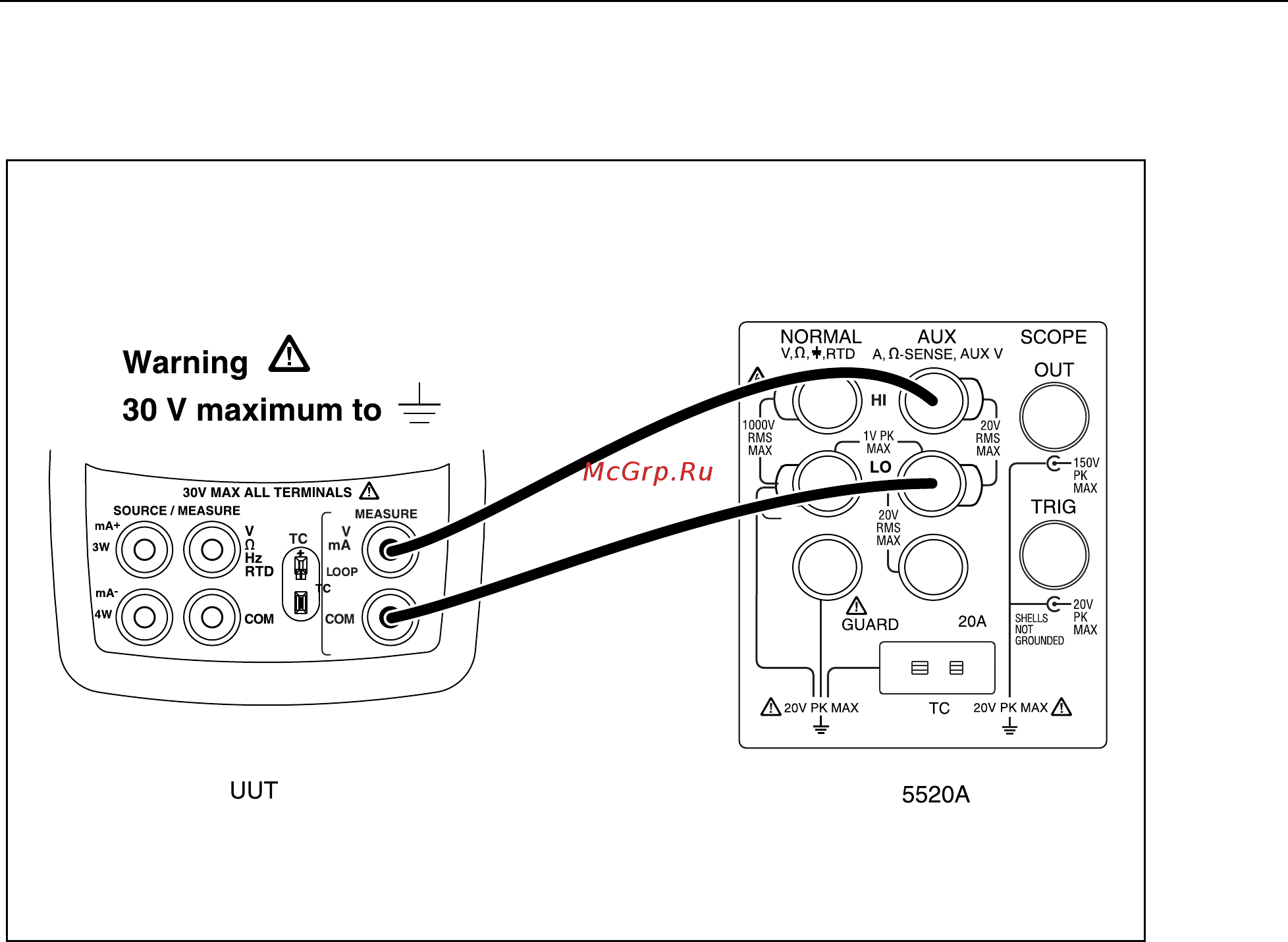

Figure 23. ISO mA Calibration Connections

From the Calibration Menu, enter the cal step for Cal ISO mA. The PC displays:

Enter 0 ma - press space bar to continue

Set the Fluke 5520A to output 0.0000 mA. After a short while, the PC displays the

following calibration constants and prompt:

Offset = -323

Enter 24.00 ma - press space bar to continue

Set the Fluke 5520A to output 24.0000 mA then press the space bar on the PC. After a

short while, the PC displays the following calibration constants:

diff = (Counts - Offset)

32133 = 31810 - -323

mA per count = 0.000747

- press space bar to continue

Press the space bar to return to the Calibration Menu.

Adjustment is completed. Turn the UUT off, then back on, to return to normal operation.
