Fluke 726 [55/80] Cal mv input

Calibrators

Calibration Adjustment

Cal mV Input

Connect the UUT as shown in Figure 17.

aal04.eps

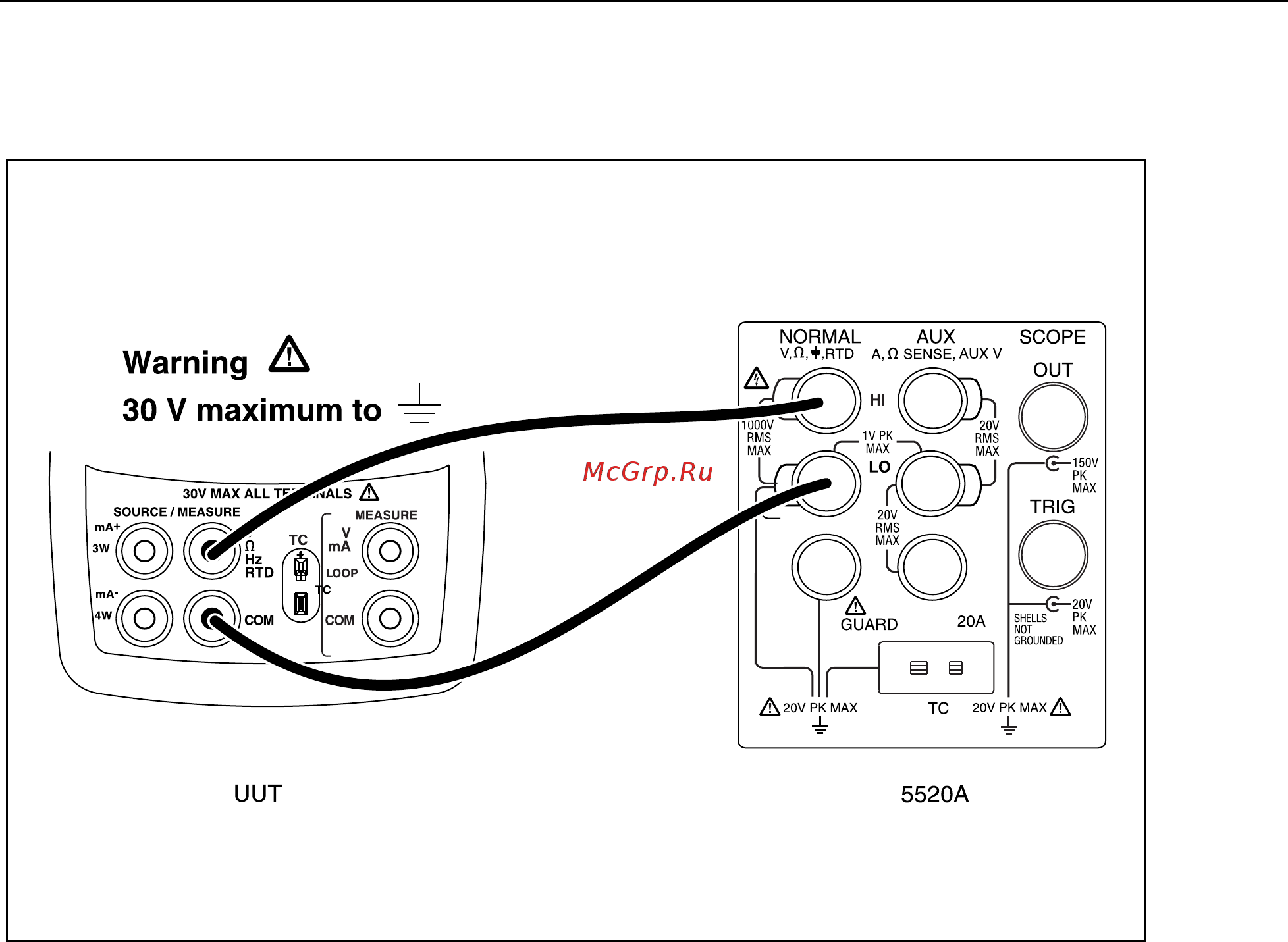

Figure 17. mV Input Calibration Connections

From the Calibration Menu, type the number or letter for Cal mV Input. The PC displays:

Enter 0 mV - press space bar to continue

Set the Fluke 5520A to output 0.000 mV, let the output settle then press the space bar on

the PC. After a short while, the PC displays the following calibration constant and new

prompt:

Offset = -714

Enter 90.00 mV - press space bar to continue

Set the Fluke 5520A to output 90.000 mV, let the output settle, then press the space bar

on the PC. After a short while, the PC displays the following calibration constants and

new prompt:

diff = (Counts - Offset)

7513104 = 7512390 - -714

mV per count = 0.000012

-press space bar to continue

Press the space bar to return to the Calibration Menu.
