Fluke 726 [69/80] Calibrating ma output fluke 725 and 726 only

Calibrators

Calibration Adjustment

Calibrating mA Output (Fluke 725 and 726 only)

Connect the UUT as shown in Figure 27.

aal12f.eps

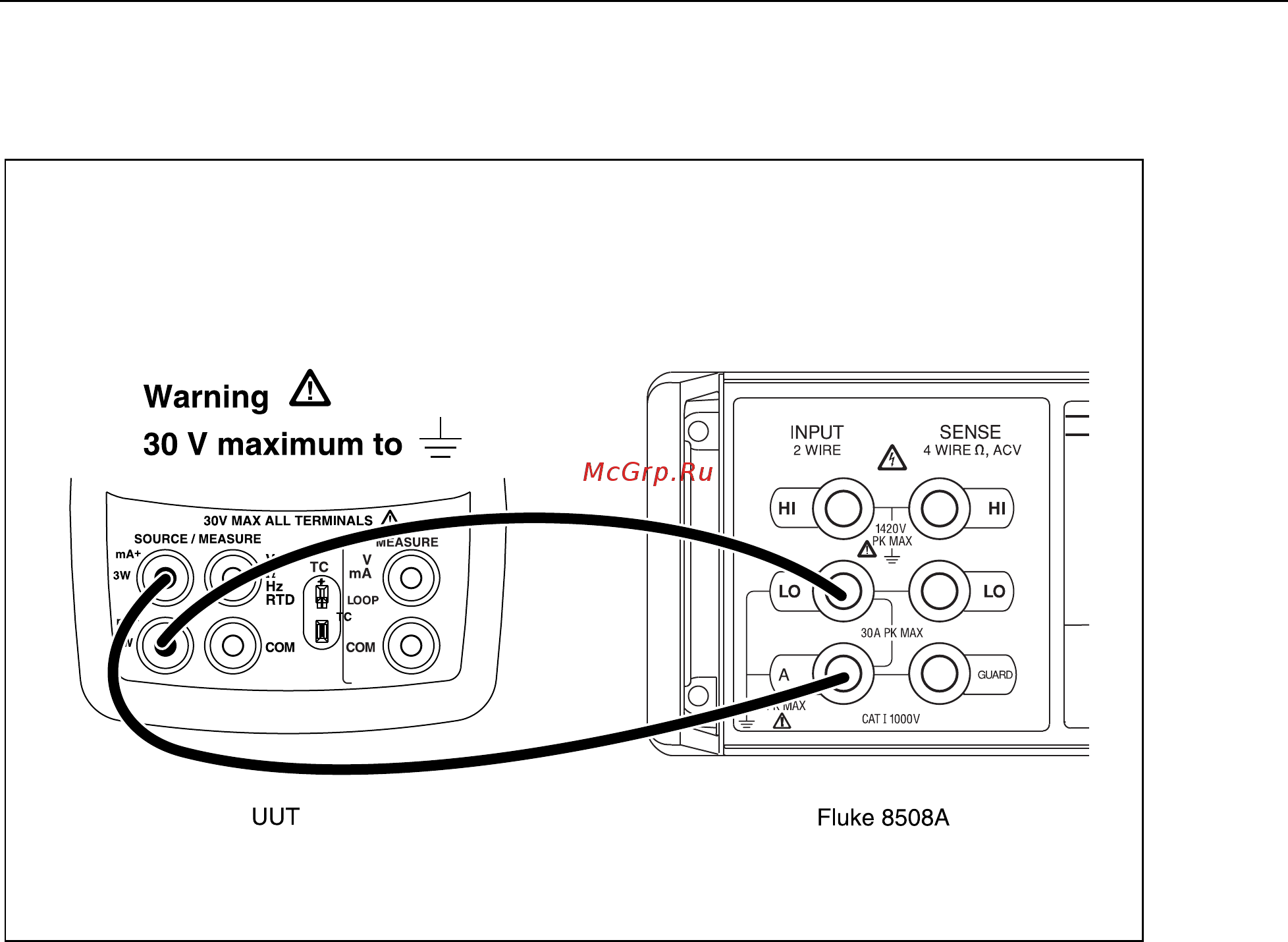

Figure 27. mA Output Calibration Connections

After making the proper connections, type “4” then press the Enter key on the PC

keyboard. Input directions are displayed at the bottom of the calibration menu:

Enter Selection:

First Calibration Point. Enter mA displayed:

Second Calibration Point. Enter mA displayed:

Use the 8508A to measure the two calibration points. Enter each of the two calibration

points as prompted.
