Fluke 726 [73/80] Calibrating high ohms source

Calibrators

Calibration Adjustment

Calibrating High Ohms Source

Connect the UUT as shown in Figure 31.

aal13f.eps

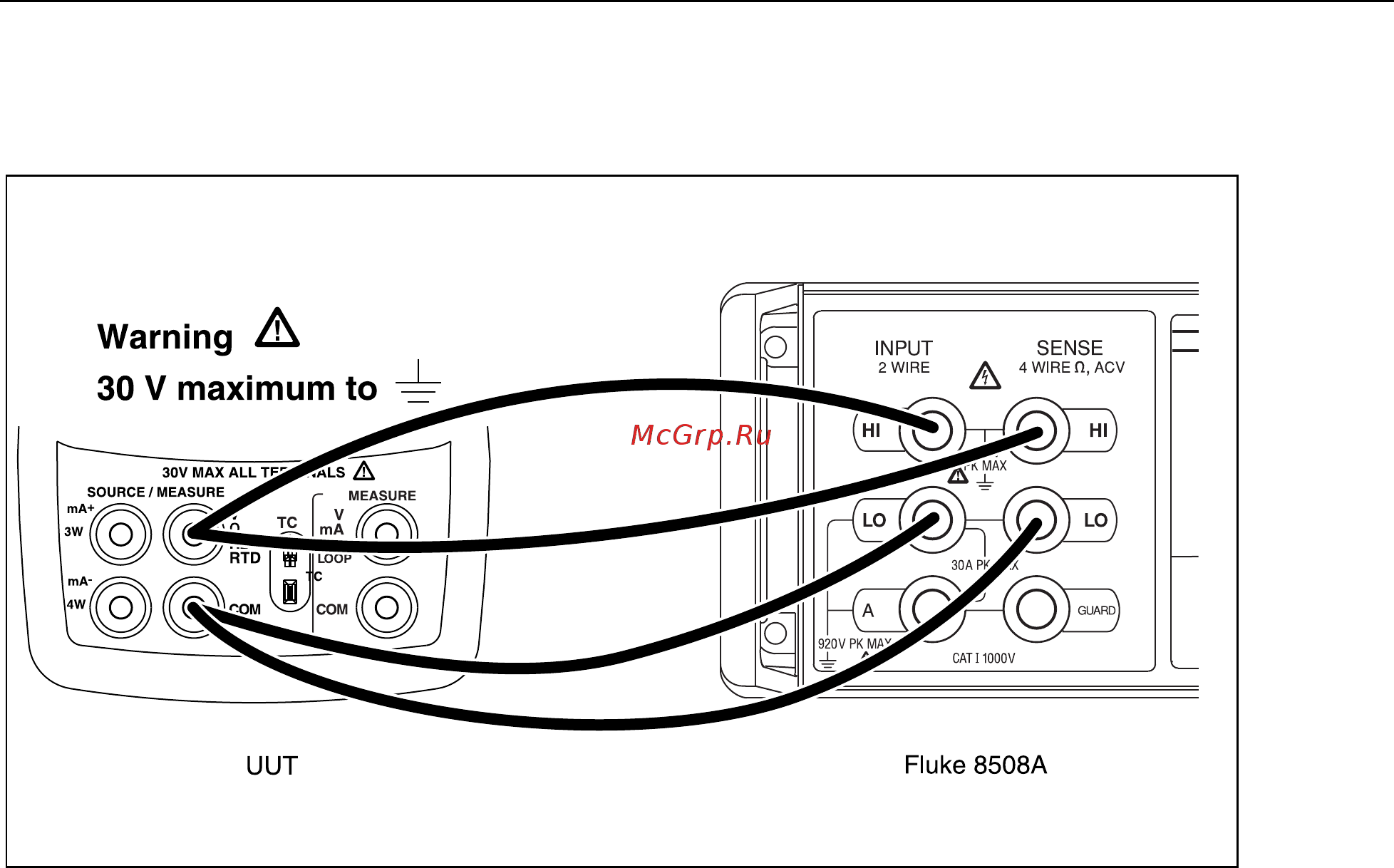

Figure 31. High Ohms Source Calibration Connections

After making the proper connections, type “8” then press the Enter key on the PC

keyboard. Input directions are displayed at the bottom of the calibration menu:

Enter Selection:

First Calibration Point. Enter Ohms displayed:

Second Calibration Point. Enter Ohms displayed

The 8508A should be locked in the 20 kΩ range (0.1 mA excitation). Enter each of the

two calibration points as prompted.

Note

For best accuracy, use 8508A 20 k

range, 4-wire, LOI Off
