DGS-3048 Gigabit Ethernet Switch Manual

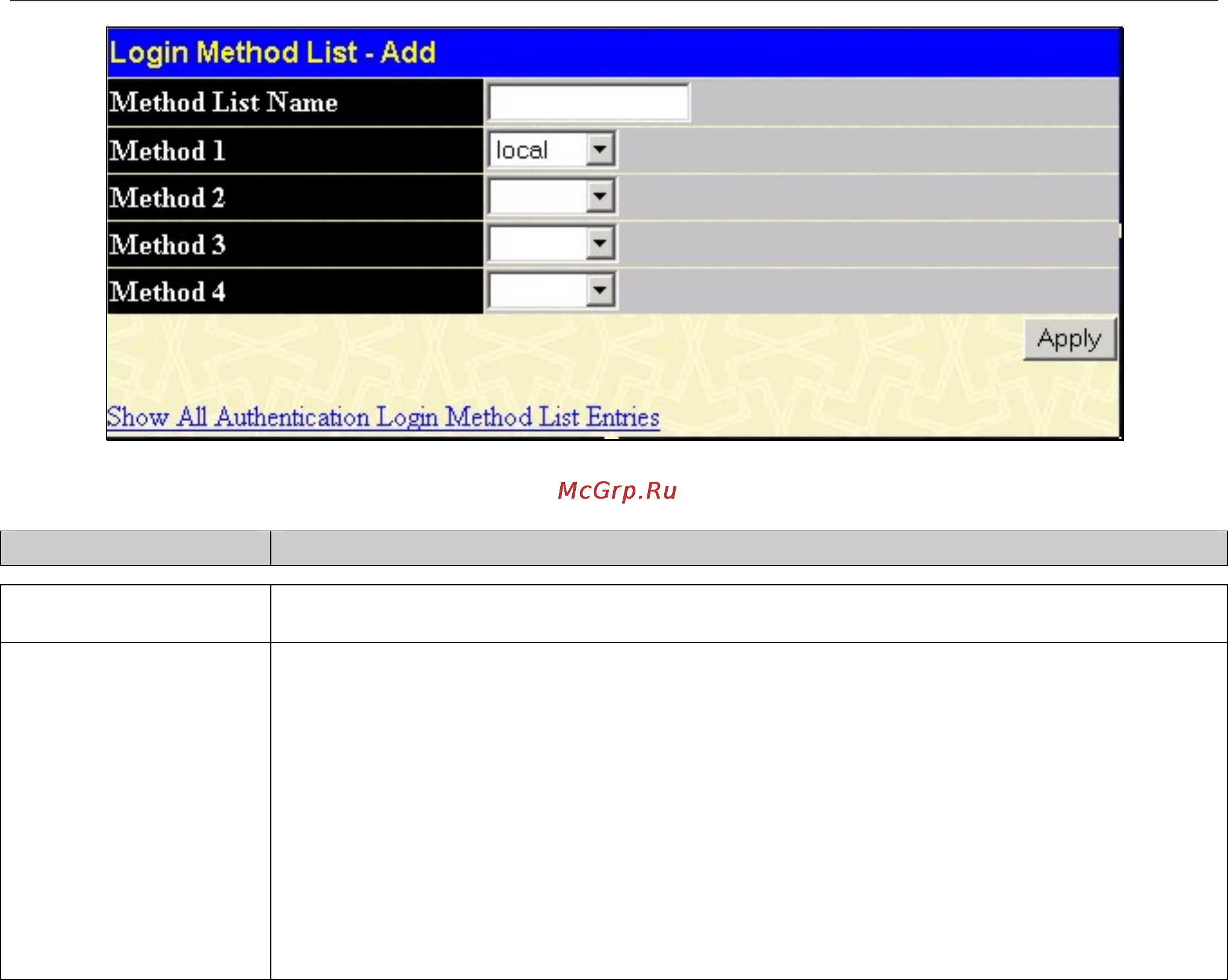

Figure 10- 15. Login Method List – Add Window
To define a Login Method List, set the following parameters and click
Apply:
Parameter Description
Method List Name
Enter a method list name defined by the user of up to 15 characters.
Method 1, 2, 3, 4
The user may add one, or a combination of up to four of the following authentication
methods to this method list:
tacacs+ - Adding this parameter will require the user to be authenticated using the
TACACS+ protocol from a remote TACACS+ server.
radius - Adding this parameter will require the user to be authenticated using the
RADIUS protocol from a remote RADIUS server.
local - Adding this parameter will require the user to be authenticated using the local
user account database on the Switch.
none - Adding this parameter will require no authentication to access the Switch.
90
