DGS-3048 Gigabit Ethernet Switch Manual
held for the port will age out. The user may set a hop count from 1 to 20. The
default is 20.
Forwarding BPDU
This field can be Enabled or Disabled. When Enabled, it allows the forwarding of
STP BPDU packets from other network devices. The default is Enabled.
Click Apply to implement changes made.
NOTE: The Hello Time cannot be longer than the Max. Age. Otherwise, a
configuration error will occur. Observe the following formulas when setting
the above parameters:
Max. Age ≤ 2 x (Forward Delay - 1 second)
Max. Age ≥ 2 x (Hello Time + 1 second)
STP Port Settings
STP can be set up on a port per port basis. To view the following window click Administration > Spanning Tree > STP
Port Settings:

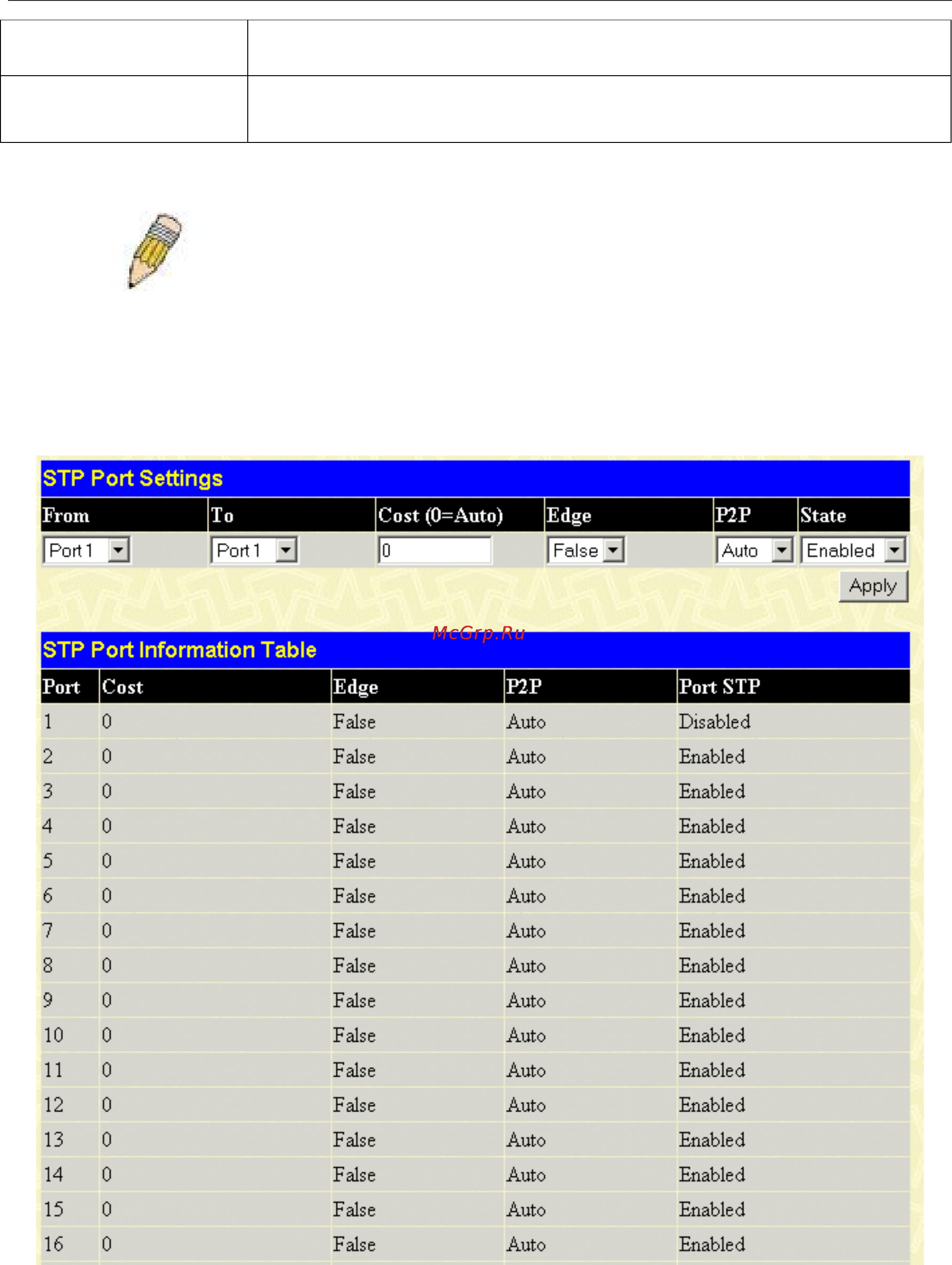

Figure 8- 22. STP Port Settings Window
66
