DGS-3048 Gigabit Ethernet Switch Manual
Some settings, though, require you to restart the Switch before they will take effect. Restarting the Switch erases all settings
in RAM and reloads the stored settings from the NV-RAM. Thus, it is necessary to save all setting changes to NV-RAM
before rebooting the Switch.
To retain any configuration changes permanently, click the Save Changes link. The following window will appear:

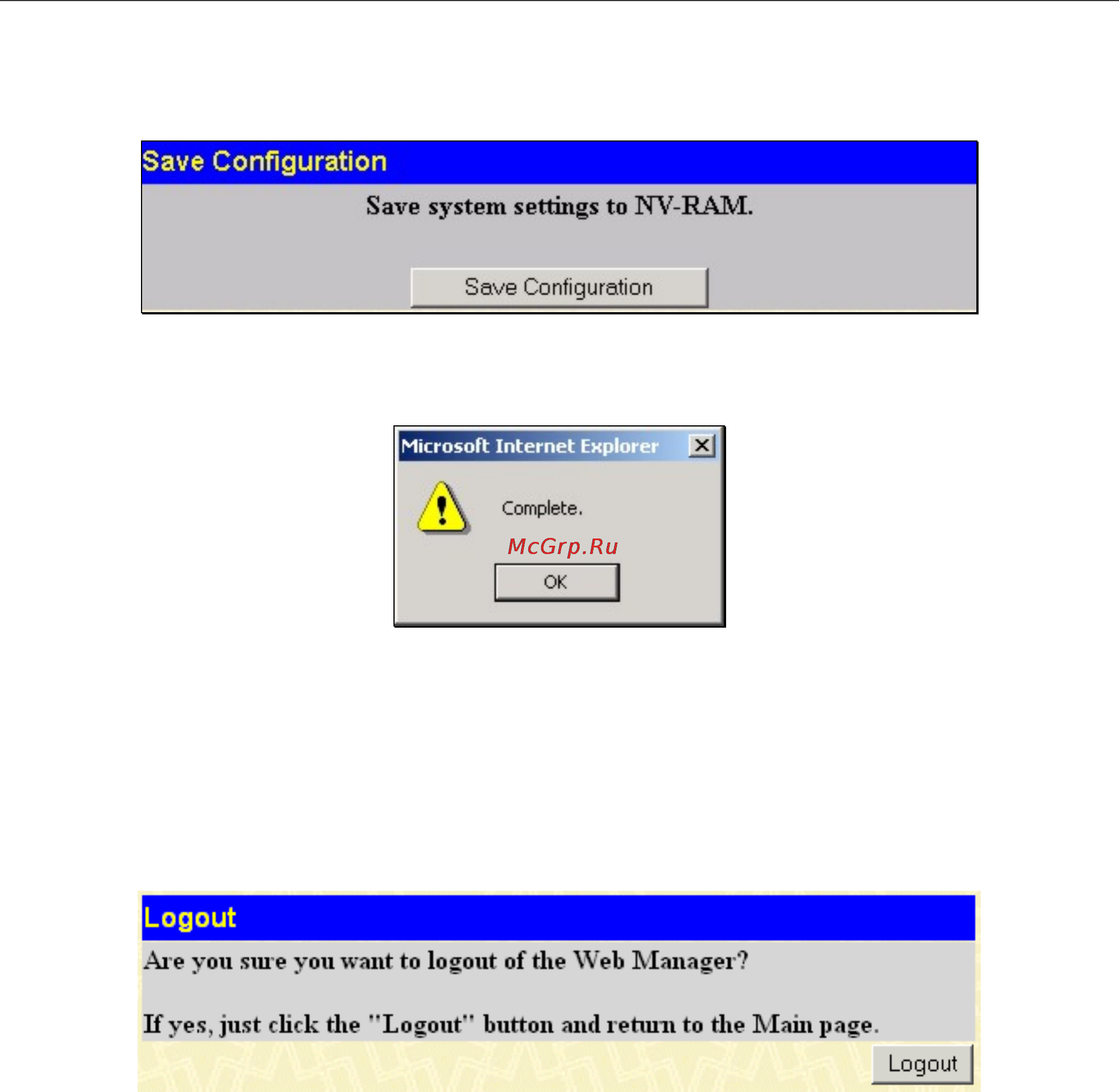

Figure 11- 15. Save Configuration Window
Click the Save Configuration button to save the current Switch configuration in NV-RAM. The following dialog box will
confirm that the configuration has been saved:
Figure 11- 16. Save Configuration Confirmation Dialog box
Click the OK button to continue.
Once the Switch configuration settings have been saved to NV-RAM, they become the default settings for the Switch. These
settings will be used every time the Switch is rebooted.
Logout
Use the Logout page to logout of the Switch's Web-based management agent by clicking on the Logout button.
Figure 11- 17. Logout Web Setups Window
110
