DGS-3048 Gigabit Ethernet Switch Manual

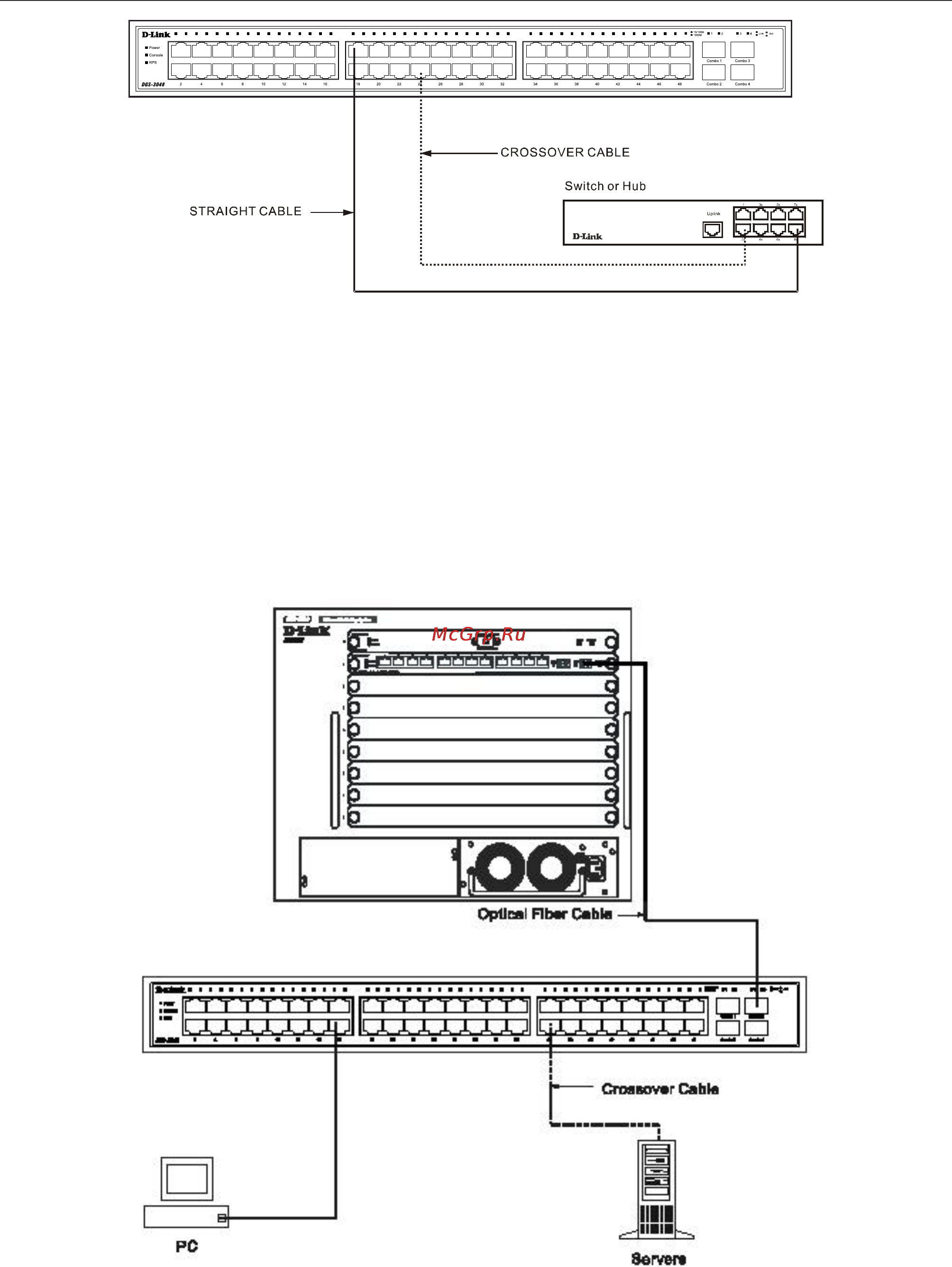

Figure 4-2. Switch Connected to a Normal (non-Uplink) Port on a Hub or Switch Using a Straight or
Crossover Cable
Switch to Core Router Switch
This connection can be accomplished using the following fiber optic media:
• SFP Transceiver for 1000BASE-LX Single-mode fiber module (10km)
• SFP Transceiver for 1000BASE-SX Multi-mode fiber module (550m)
• SFP Transceiver for 1000BASE-LHX Single-mode fiber module (40km)
• SFP Transceiver for 1000BASE-ZX Single-mode fiber module (80km)
Figure 4-3 Switch Connected by an Optical Fiber Cable to a Core Router Switch, with a Server Connected
by Crossover Cable and a PC Connected by a Category 3, 4, 5, or 5e UTP/STP cable
9
