DGS-3048 Gigabit Ethernet Switch Manual
Port Configuration
Port Settings
Port settings can be done in the following window. To open the Port Configuration Window click on the Port
Configuration folder and choose the Port Settings link.

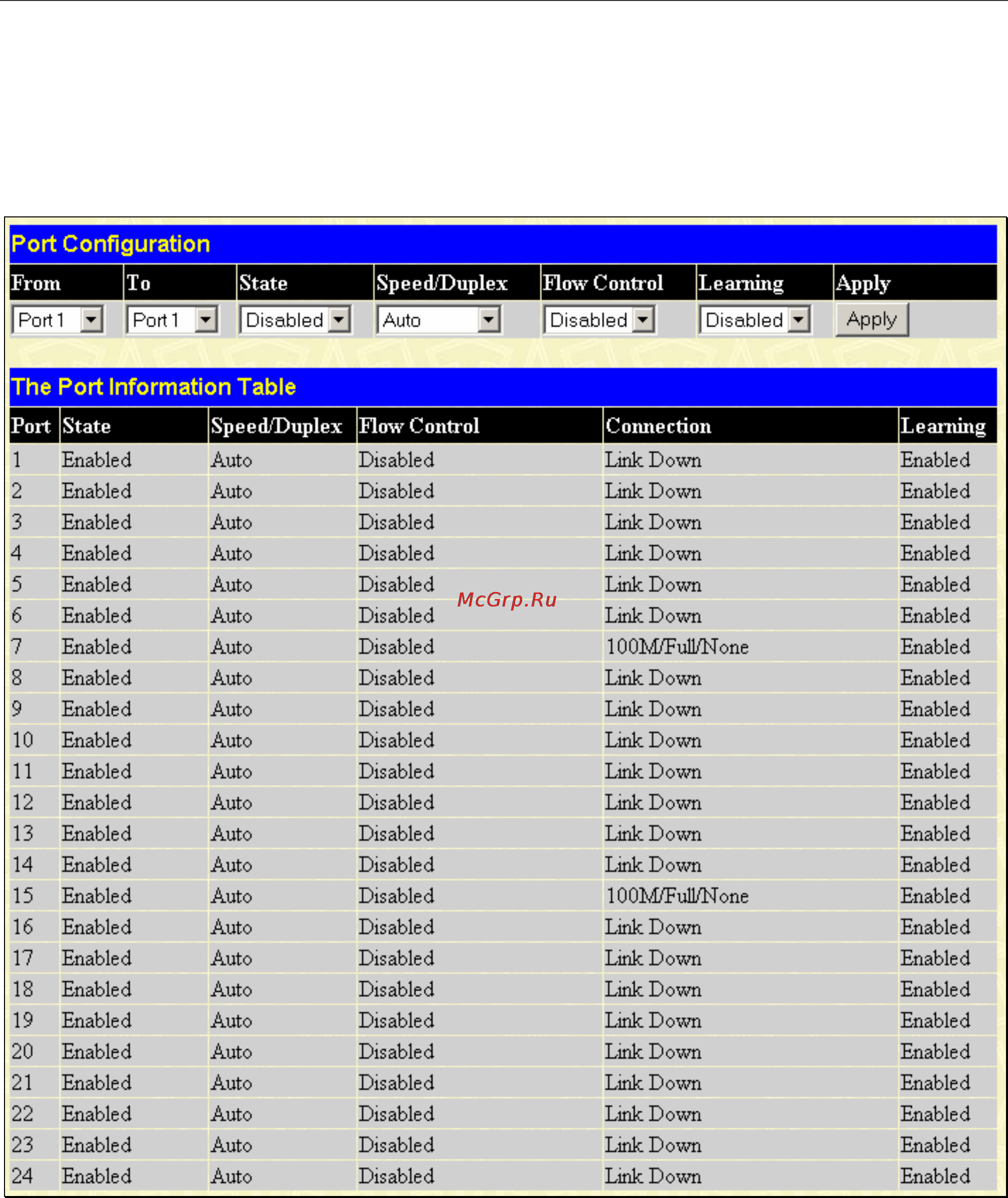

Figure 7- 3. Port Configuration Window
To configure Switch ports:
1. Choose the port or sequential range of ports using the From and To pull-down menus.
2. Use the remaining pull-down menus to configure the parameters described below:
23
