DGS-3048 Gigabit Ethernet Switch Manual
Router Port
This displays the Switch's ports that are currently configured as router ports. A router port configured by a user (using the
console or Web-based management interfaces) is displayed as a static router port, designated by an S. A router port that is
dynamically configured by the Switch is designated by D. To view the following window, open the Monitoring folder and
click the Browse Router Port link.

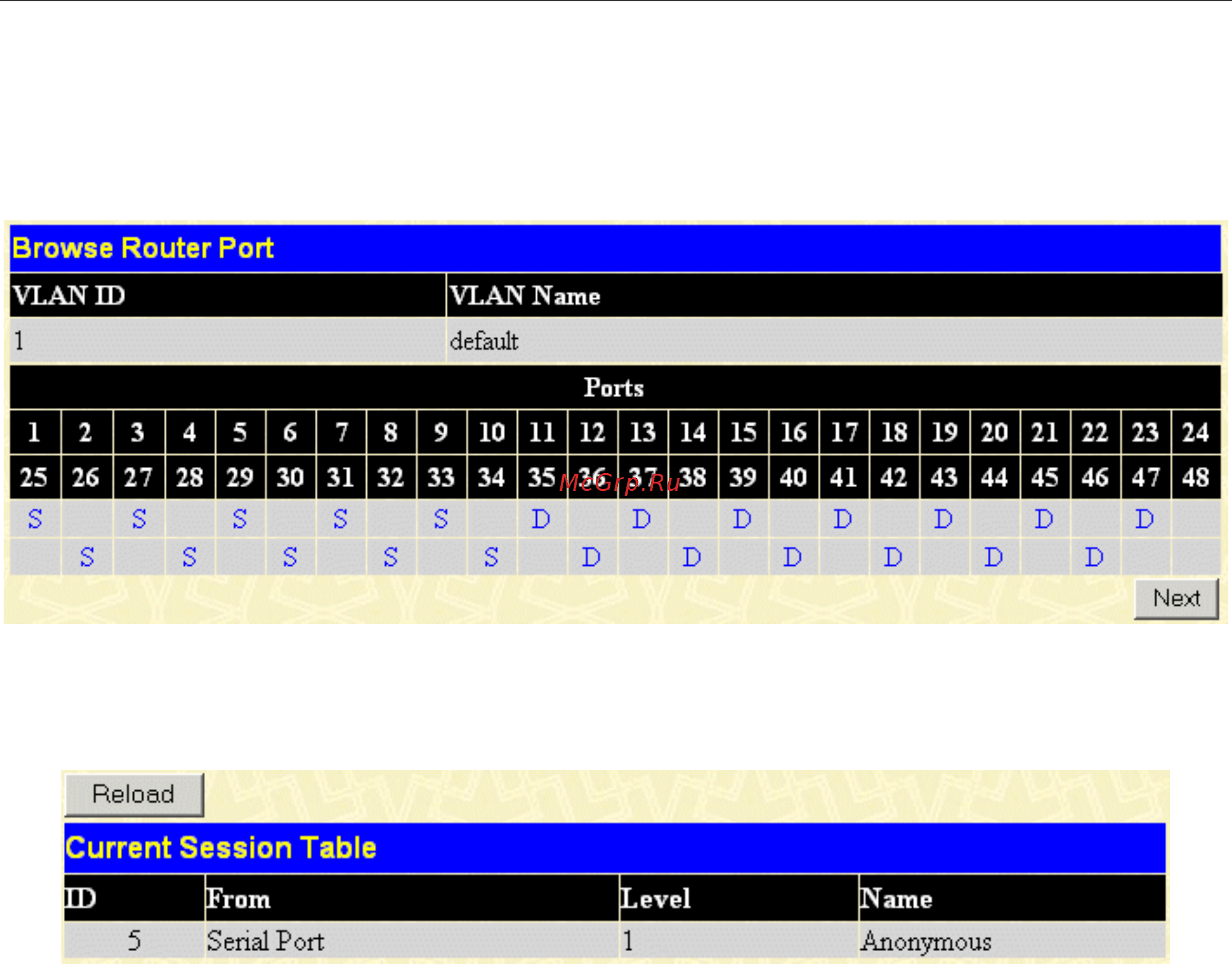

Figure 11-7. Browse Router Port Window
Session Table
Figure 11-8. Current Session Table Window
This window displays a list of all the users that are currently logged-in.
104
