DGS-3048 Gigabit Ethernet Switch Manual
7
Administration
The first Web Manager main folder is Administration and includes the following windows and sub-folders: IP Address,
Switch Information
, Advanced Settings, Port Configuration, Port Mirroring, Link Aggregation, IGMP Snooping,
Spanning Tree, Forwarding & Filtering, VLANs, SNTP Settings, QoS, MAC Notification, System Log Server, Port
Access Entity, and Static ARP Settings,
as well as secondary windows.
Switch Information

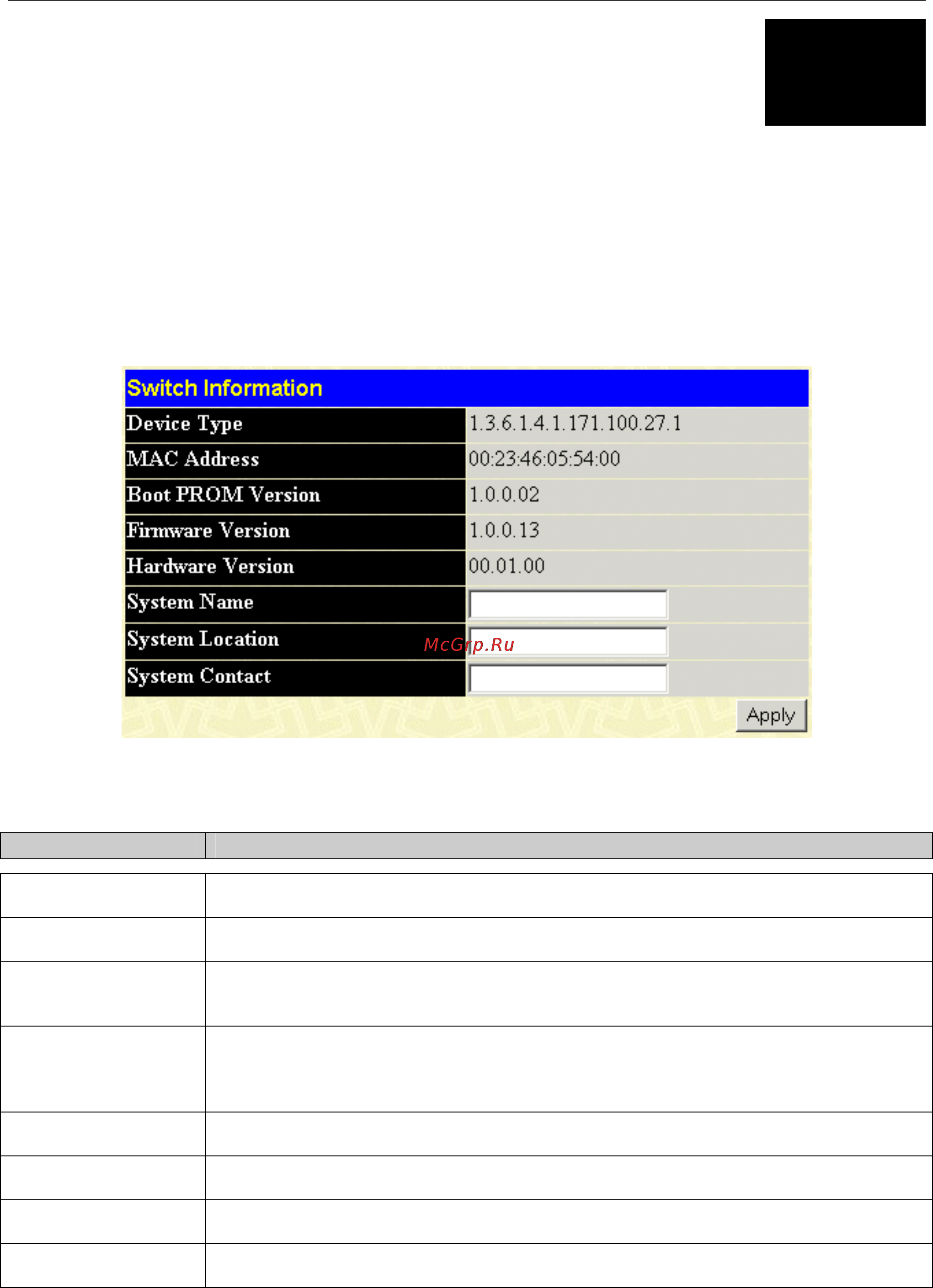

Figure 7- 1. Switch Information (Basic Settings) W indow
This window is used to enter name, location, and contact information. Click
Apply to activate the new settings.
The information is described as follows:
Parameter Description
Device Type
A description of the Switch type.
MAC Address
The Ethernet address for the device. Also known as the physical address.
Boot PROM Version
Version number for the firmware chip. This information is needed for new runtime
software downloads.
Firmware Version
Version number of the firmware installed on the Switch. This can be updated by using
the
TFTP Services window in the Administration folder (Administration → TFTP
Services →
).
Hardware Version
Version of the Switch hardware.
System Name
Defines the user-defined device name. The field range is 0-160 characters.
System Location
System’s location.
System Contact
Name of the person to contact should there be any problems or questions with the
21
