DGS-3048 Gigabit Ethernet Switch Manual
IGMP Snooping Group
IGMP Snooping allows the Switch to read the Multicast Group IP address and the corresponding MAC address from IGMP
packets that pass through the Switch. The number of IGMP reports that were snooped is displayed in the Reports field.
To view the IGMP Snooping Table, click IGMP Snooping Group in the Monitoring menu:

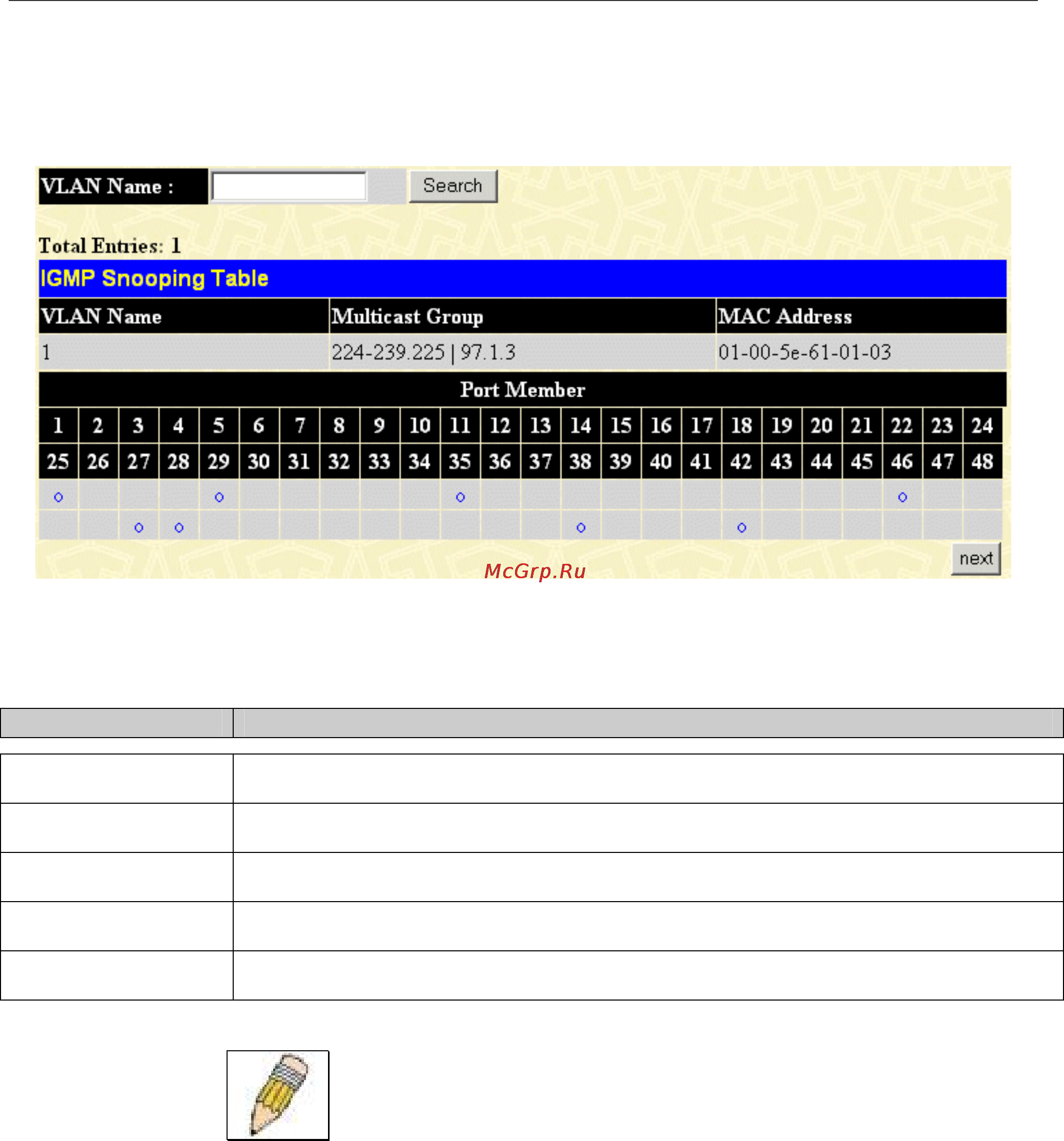

Figure 11-11. IGMP Snooping Table Window
The user may search the IGMP Snooping Table by VLAN ID (VID) by entering the VID in the top left hand corner and
clicking Search.
The following field can be viewed:
Parameter Description
VLAN ID
The VLAN ID (VID) of the multicast group.
Multicast Group
The IP address of the multicast group.
MAC Address
The MAC address of the multicast group.
Queries
Ports
These are the ports where the IGMP packets were snooped are displayed.
NOTE: To configure IGMP snooping for the DGS-3048, go to the
Configuration folder and select IGMP Snooping. Configuration and other
information concerning IGMP snooping may be found in this manual under
IGMP.
IGMP Snooping Forwarding
This window will display the current IGMP snooping forwarding table entries currently configured on the Switch. To view
the following screen, open the Monitoring folder and click the IGMP Snooping Forwarding link.
107
