DGS-3048 Gigabit Ethernet Switch Manual

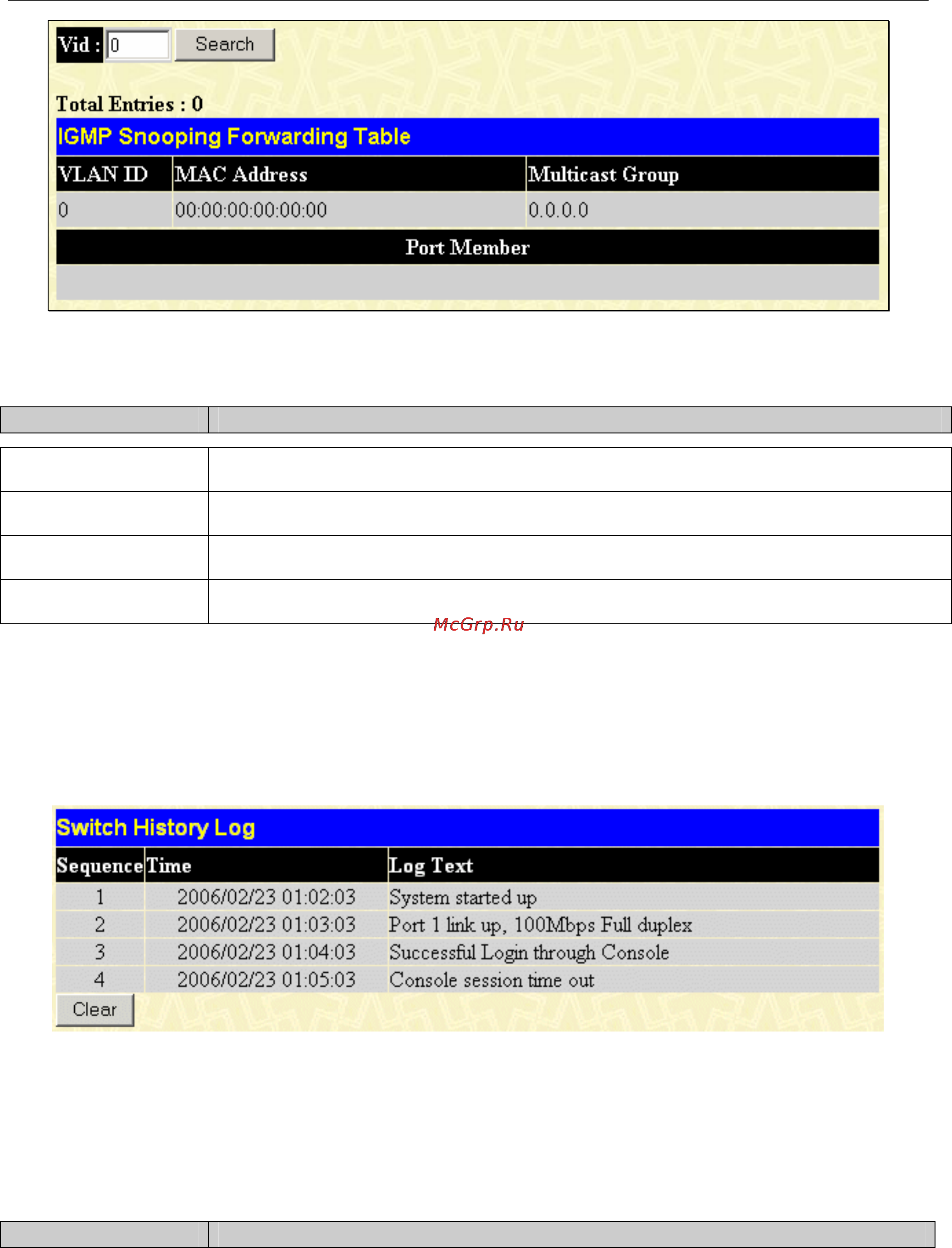

Figure 11-12. IGMP Snooping Forwarding Table Window
The user may search the IGMP Snooping Forwarding Table by VID clicking the top left hand corner Search button.
The following field can be viewed:
Parameter Description
VLAN ID
The VLAN ID (VID) of the multicast group.
Multicast Group
The IP address of the multicast group.
MAC Address
The MAC address of the multicast group.
Port Map
These are the ports where the IGMP packets were snooped are displayed.
Switch History Log
The Web manager allows the Switch's history log, as compiled by the Switch's management agent, to be viewed. To view
the Switch history log, open the Monitoring folder and click the Switch Log link
Figure 11-13. Switch History Window
The Switch can record event information in its own logs, to designated SNMP trap receiving stations, and to the PC
connected to the console manager. Click Next to go to the next page of the Switch History Log. Clicking Clear will allow
the user to clear the Switch History Log.
The information is described as follows:
Parameter Description
108
