DGS-3048 Gigabit Ethernet Switch Manual

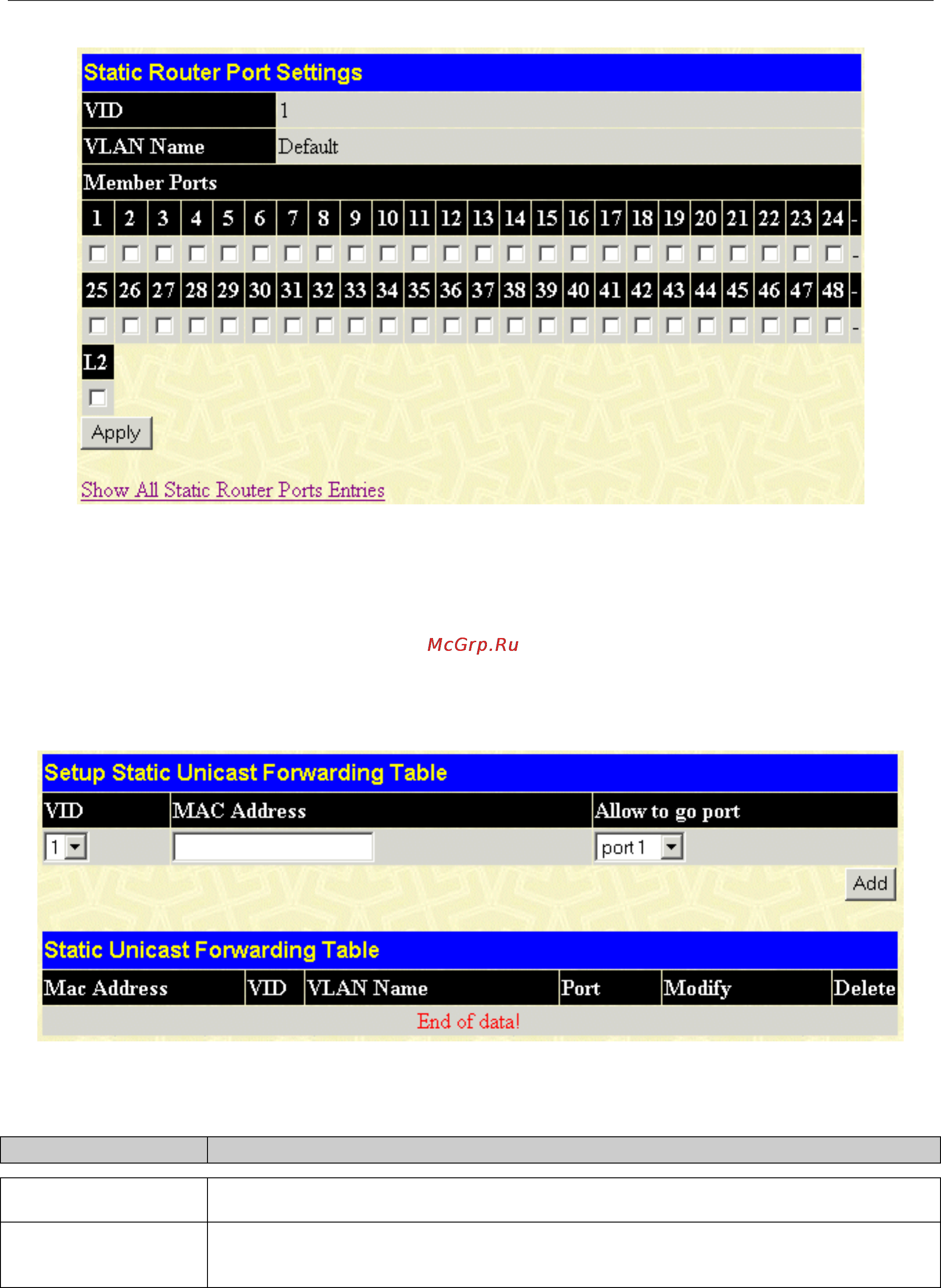

Figure 8- 15. Current Static Router Port Window (Modify)
Forwarding and Filtering
Unicast Forwarding
Open the Forwarding folder in the Configuration menu and click on the Unicast Forwarding link. This will open the
Setup Static Unicast Forwarding Table window, as shown below:
Figure 8- 16. Setup Static Unicast Forwarding Table window
To add or edit an entry, define the following parameters and then click
Add/Modify:
Parameter Description
VID (VLAN ID)
The VLAN ID number of the VLAN on which the above Unicast MAC address resides.
MAC Address
The MAC address to which packets will be statically forwarded. This must be a unicast
MAC address.
60
