D-Link DGS-3048 [103/147] Enable method lists

DGS-3048 Gigabit Ethernet Switch Manual

Enable Method Lists

The Enable Method Lists window is used to set up Method Lists to promote users with user level privileges to

Administrator (Admin) level privileges using authentication methods on the Switch. Once a user acquires normal user level

privileges on the Switch, he or she must be authenticated by a method on the Switch to gain administrator privileges on the

Switch, which is defined by the Administrator. A maximum of eight (8) Enable Method Lists can be implemented on the

Switch, one of which is a default Enable Method List. This default Enable Method List cannot be deleted but can be config-

ured.

The sequence of methods implemented in this command will affect the authentication result. For example, if a user enters a

sequence of methods like TACACS+ - RADIUS - Local Enable, the Switch will send an authentication request to the first

TACACS+ host in the server group. If no verification is found, the Switch will send an authentication request to the second

TACACS+ host in the server group and so on, until the list is exhausted. At that point, the Switch will restart the same

sequence with the following protocol listed, RADIUS. If no authentication takes place using the RADIUS list, the Local

Enable password set in the Switch is used to authenticate the user.

Successful authentication using any of these methods will give the user an "Admin" privilege.

NOTE: To set the Local Enable Password, see the next section, entitled

Local Enable Password.

To view the following table, click

Security > Access Authentication Control > Enable Method Lists:

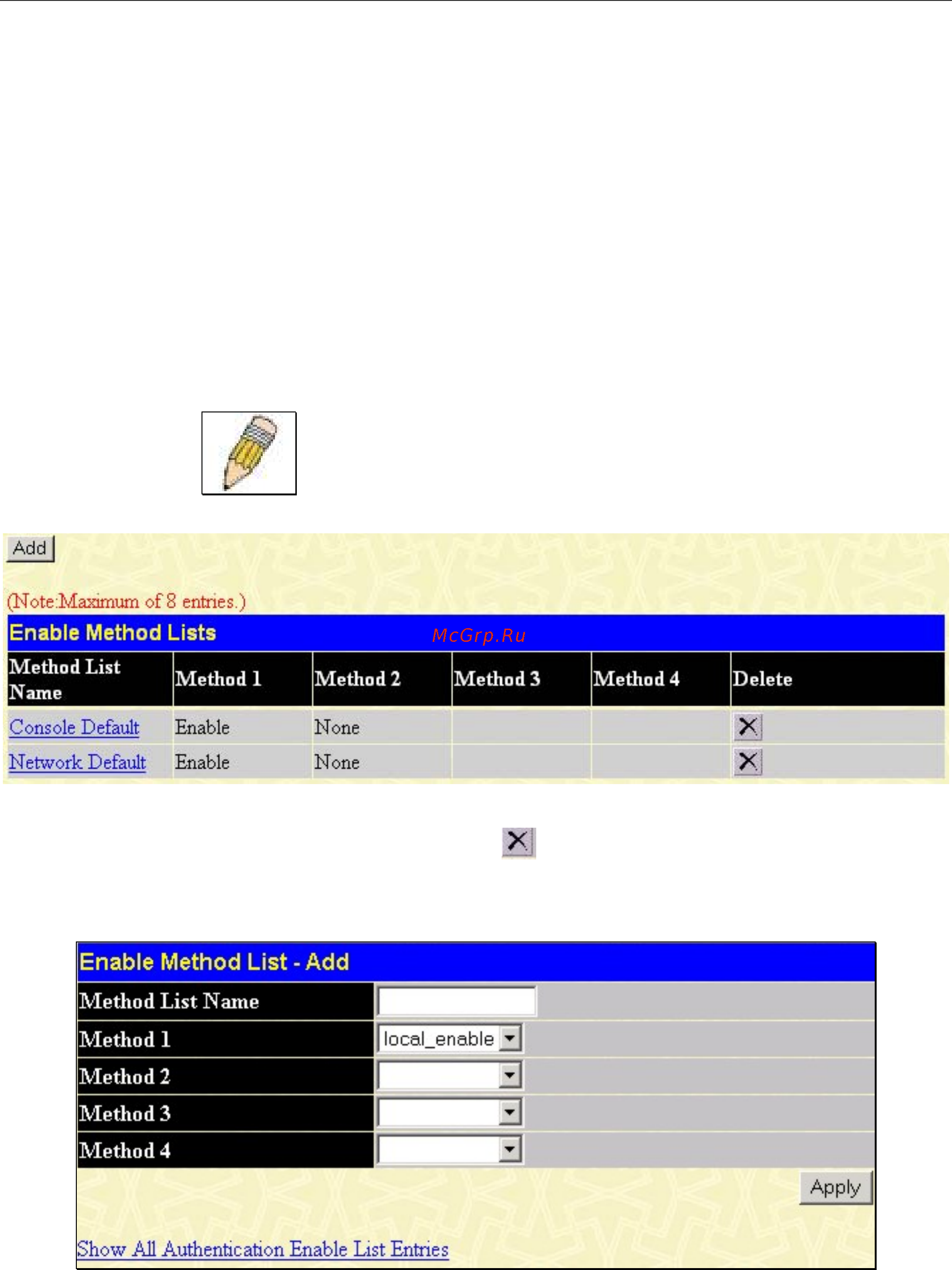

Figure 10- 16. Enable Method List Settings Window

To delete an Enable Method List defined by the user, click the

under the Delete heading corresponding to the entry

desired to be deleted. To modify an Enable Method List, click on its hyperlinked Method List Name. To configure a Method

List, click the

Add button.

Both actions will result in the same window to configure:

Figure 10- 17. Enable Method List - Add Window

To define an Enable Login Method List, set the following parameters and click

Apply:
