DGS-3048 Gigabit Ethernet Switch Manual
Parameter Description
Utilization
The percentage of the total available bandwidth being used on the port.
Port Utilization
The Utilization window displays the percentage of the total available bandwidth being used on the port.
To view the port utilization, open the Monitoring folder and then click the Port Utilization link:

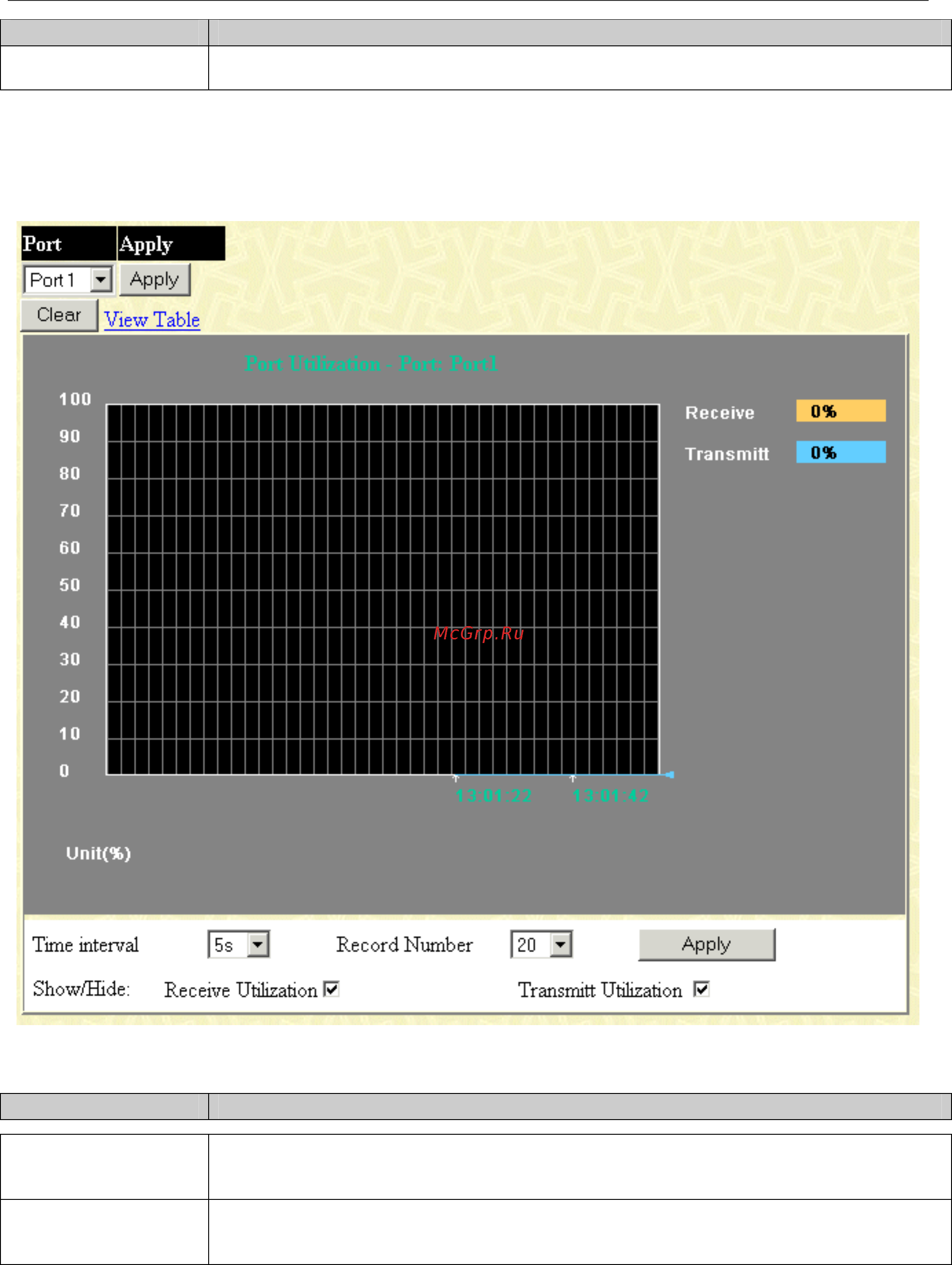

Figure 11-2. Utilization Window
The following fields can be set:
Parameter Description
Time Interval
Select the desired setting between 1s and 60s, where "s" stands for seconds. The
default value is one second.
Record Number
Select the number of times the Switch will be polled between 20 and 200. The default
value is 200.
99
