DGS-3048 Gigabit Ethernet Switch Manual
Power Failure
As a precaution in the event of a power failure, unplug the Switch. When power is resumed, plug the Switch back in.
External Redundant Power System
The Switch supports an external redundant power system.

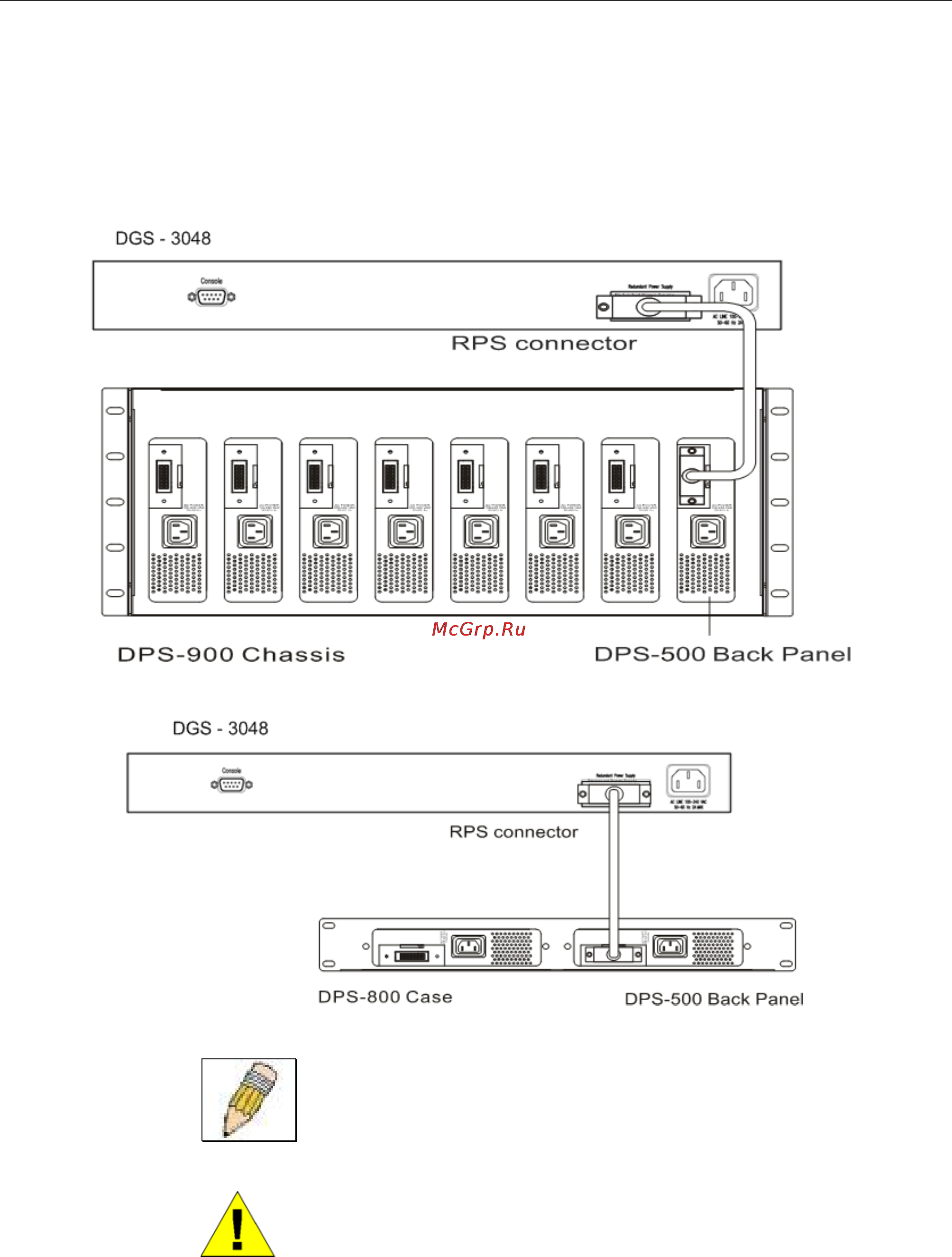

Figure 2-3. DPS-500 in DPS-900 Case with DGS-3048
Figure 2-4. DPS-500 in DPS-800 Case with DGS-3048
NOTE: See the DPS-500 documentation for more information.
CAUTION: Do not use the Switch with any redundant power system other
than the DPS-500.
5
