DGS-3048 Gigabit Ethernet Switch Manual
Transmitted (TX)
Click the Transmitted (TX) link in the Packets folder of the Monitoring menu to view the following graph of packets
transmitted from the Switch.

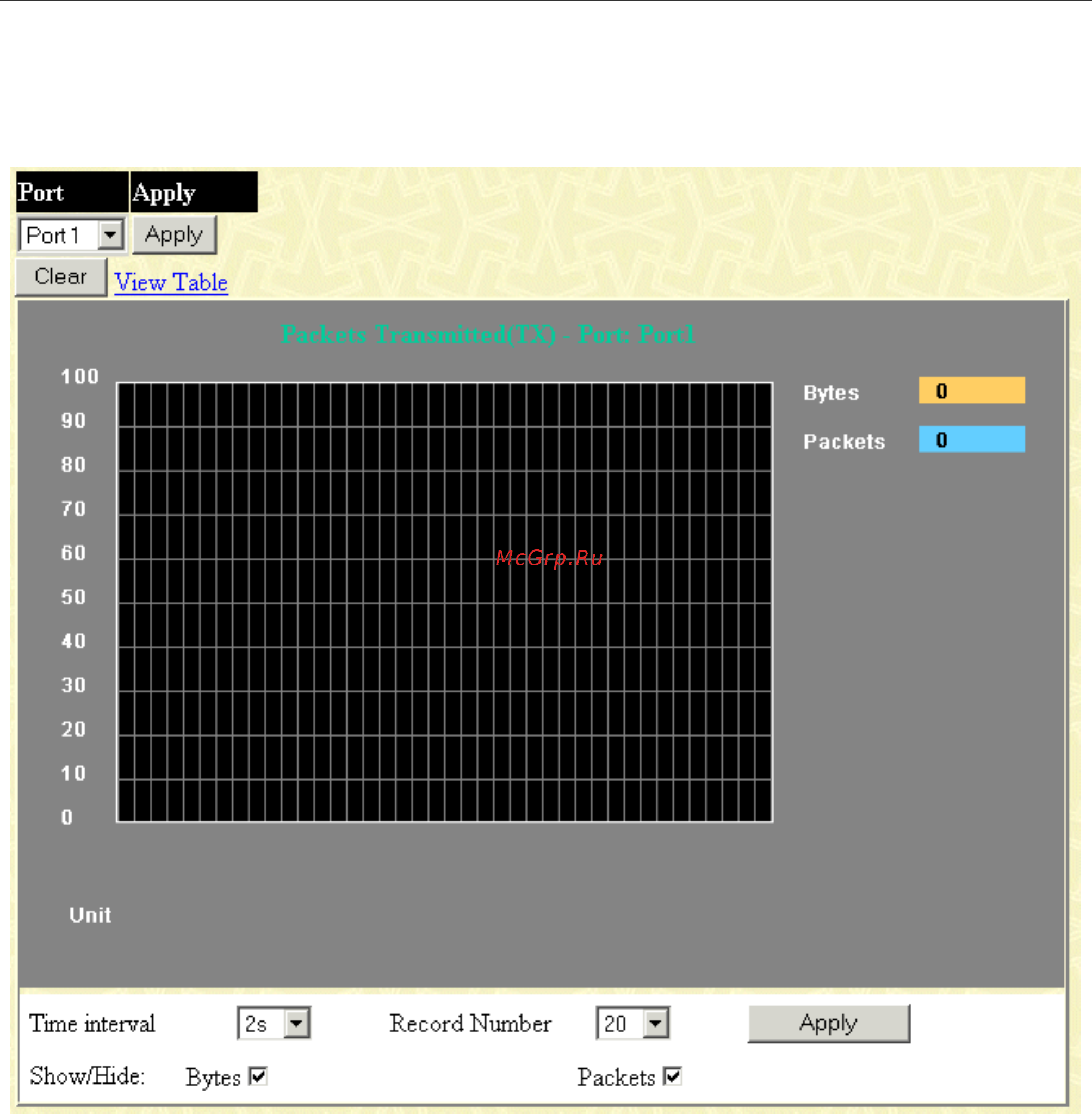

Figure 11-5. Tx Packets Analysis Window (line graph for Bytes and Packets)
102
