DGS-3048 Gigabit Ethernet Switch Manual
Size
The Web Manager allows packets received by the Switch, arranged in six groups and classed by size, to be viewed as either
a line graph or a table. Two windows are offered.

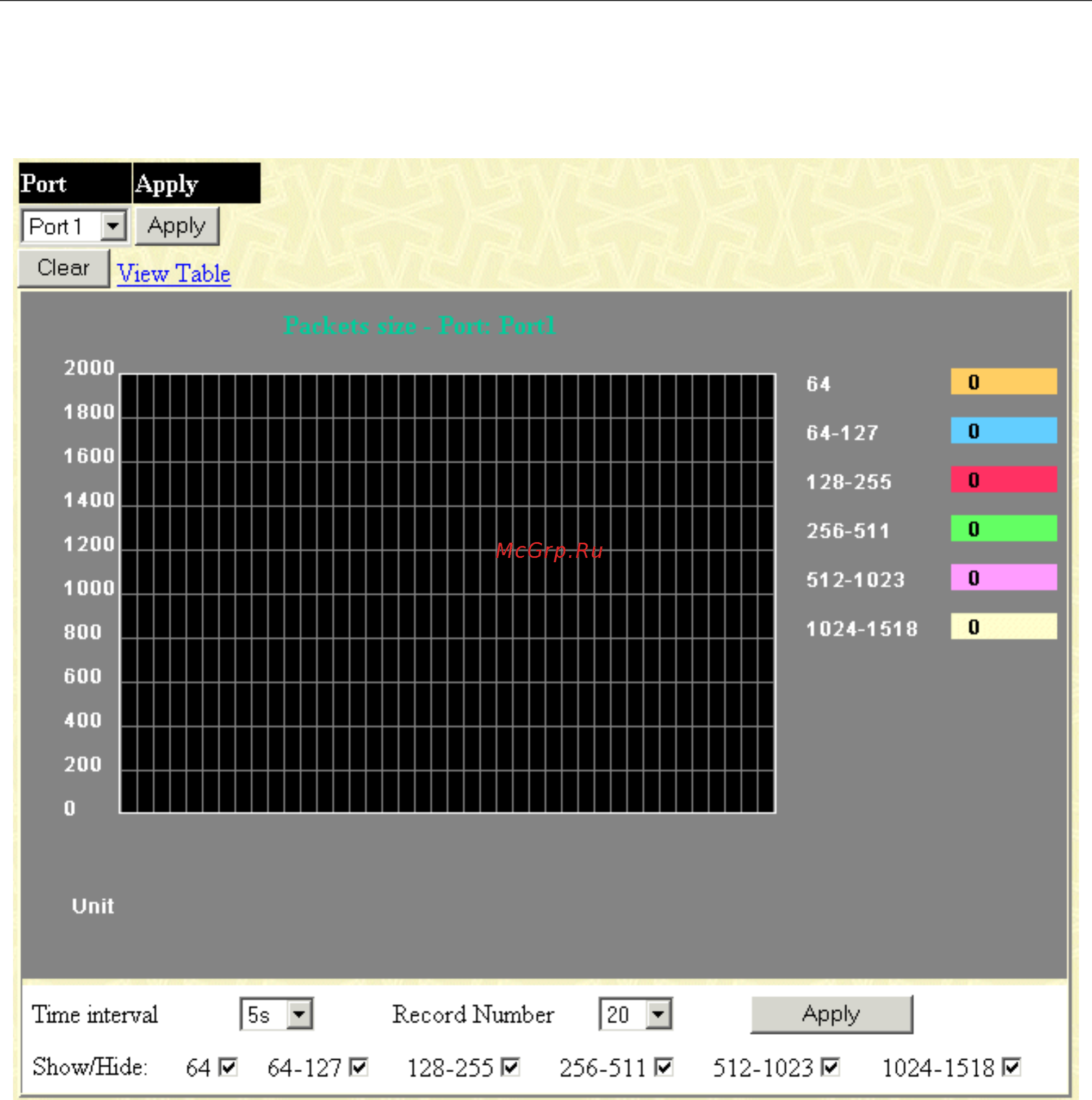

Figure 11-6. Packet Size Analysis window (line graph)
103
