DGS-3048 Gigabit Ethernet Switch Manual

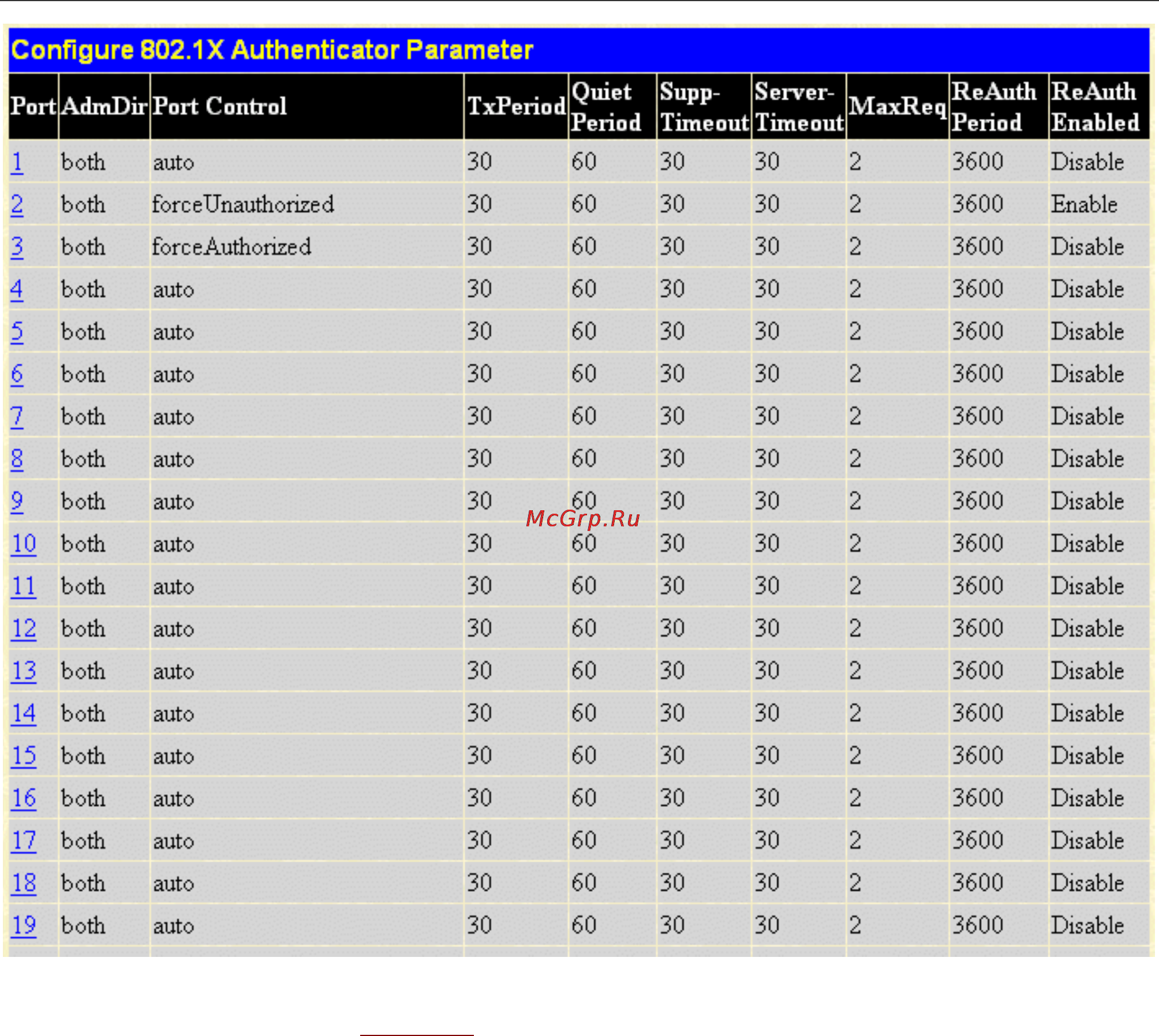

Figure 10- 7. 802.1x Authenticator Parameter Window
To configure the parameters, click the
port number link.
82
