5D-Link DIR-685 User Manual
Section 1 - Product Overview
Hardware Overview

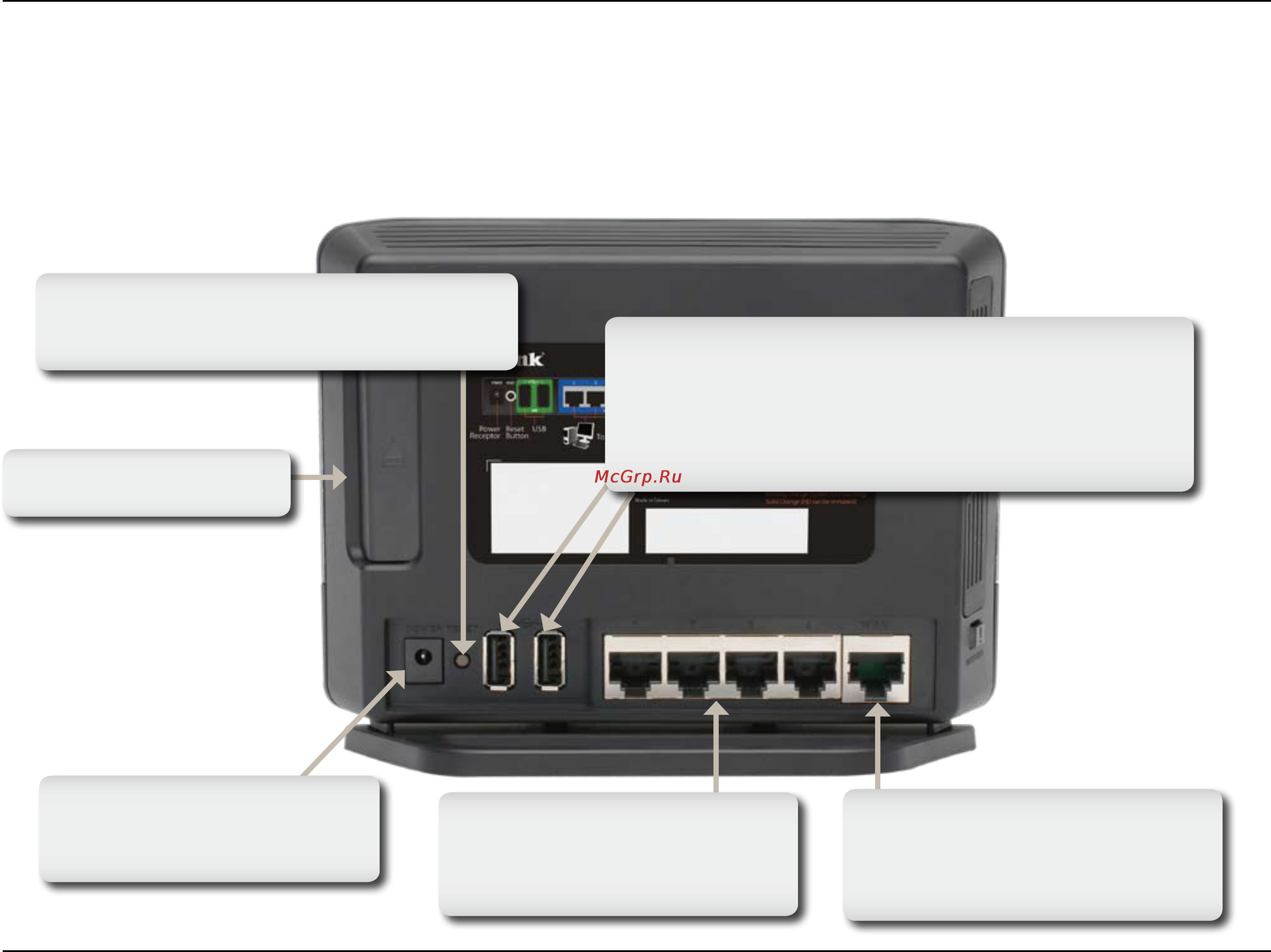

Connections
Reset
Pressing the Reset button restores the router to
its original factory default settings.
LAN Ports (1-4)
Connect Ethernet devices such as
computers, switches, and hubs to
the Gigabit ports.
WAN Port
The auto MDI/MDIX WAN/Internet
port connects the Ethernet cable to
the cable or DSL modem.
Power Receptor
The supplied power adapter
connects to this socket.
USB Ports
Connect a USB 1.1 or 2.0 ash drive to congure the wireless
settings using WCN. You may also use the USB port(s) to
connect devices such as printers, scanners, and USB external
drive/thumb drives to share on your network, or connect 3G
USB adapters.
Eject Button
Press to eject the hard drive.
