19D-Link DIR-685 User Manual
Section 7 - LCD Screen Options
The send and receive rate of your wireless trafc.
The send and receive rate of your network (LAN) trafc.
The send and receive rate of your Internet (WAN) trafc.
Wireless:
Network:
Internet:

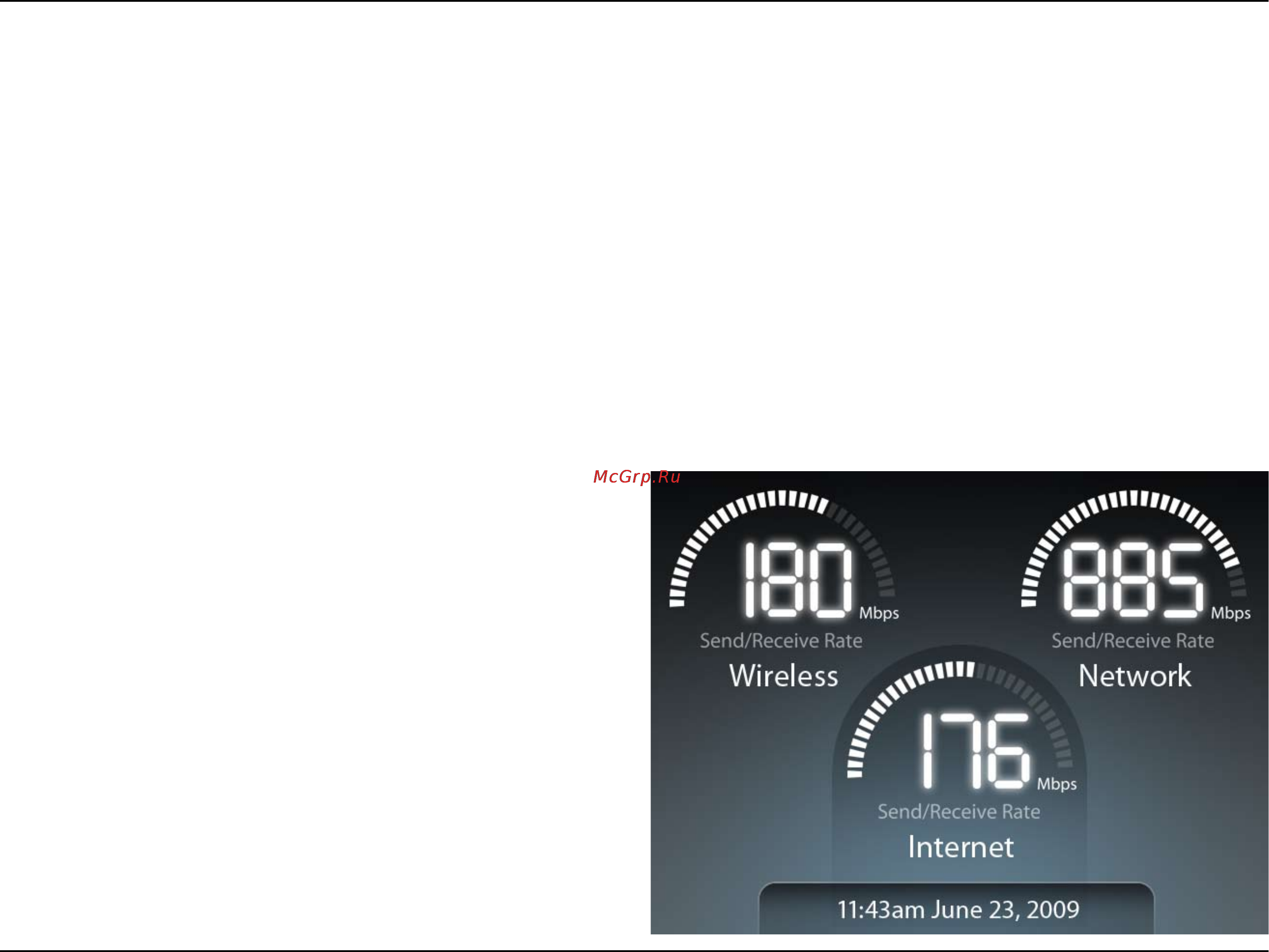

Router Statistics
LCD Screen Options
The Router Statistics displays basic information about router performance.
