D-Link DIR-685 [61/149] Network setup
![D-Link DIR-685 [61/149] Network setup](/views2/1044553/page61/bg3d.png)
56D-Link DIR-685 User Manual
Section 3 - Configuration
Tick this checkbox to enable the DHCP server
on your router. Untick to disable this function.
Enter the starting and ending IP addresses for
the DHCP server’s IP assignment.
Note: If you statically (manually) assign IP
addresses to your computers or devices, make
sure the IP addresses are outside of this range
or you may have an IP conict.
The length of time for the IP address lease.
Enter the Lease Time in minutes.
Displays the Host Name, IP Address and the
time the DHCP lease will expire for all the clients
that have received DHCP IP addresses from
the router.
Enable DHCP
Server:
DHCP IP Address
Range:
DHCP Lease
Time:
DHCP Client List:

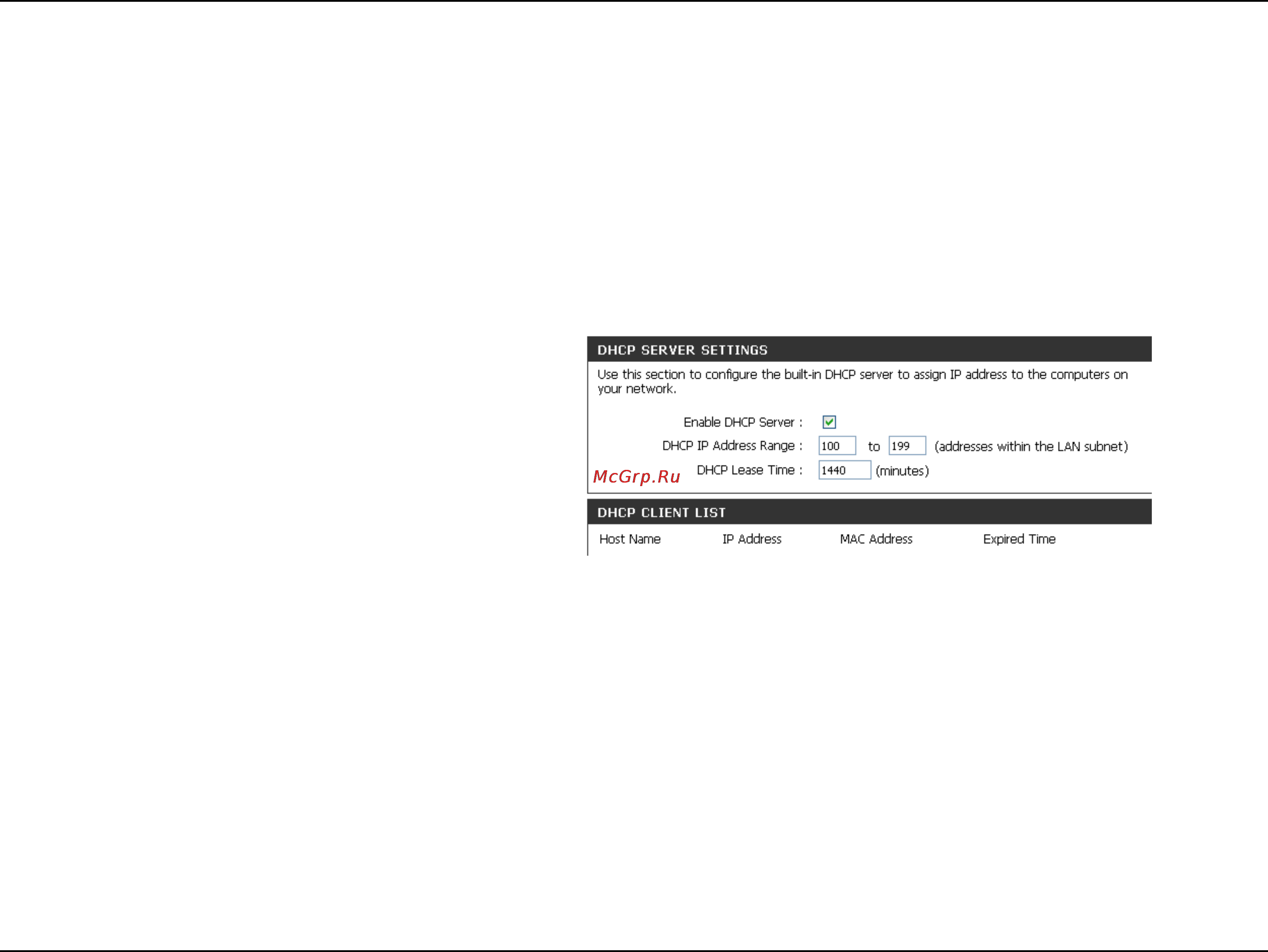

DHCP Server Settings
DHCP stands for Dynamic Host Control Protocol. The DIR-685 has a built-in DHCP server. The DHCP Server will
automatically assign an IP address to the computers on the LAN/private network. Be sure to set your computers to be
DHCP clients by setting their TCP/IP settings to “Obtain an IP Address Automatically.” When you turn your computers
on, they will automatically load the proper TCP/IP settings provided by the DIR-685. The DHCP Server will automatically
allocate an unused IP address from the IP address pool to the requesting computer. You must specify the starting and
ending address of the IP address range.
Network Setup
