D-Link DIR-685 [94/149] Upnp av server
![D-Link DIR-685 [94/149] Upnp av server](/views2/1044553/page94/bg5e.png)
89D-Link DIR-685 User Manual
Section 3 - Configuration

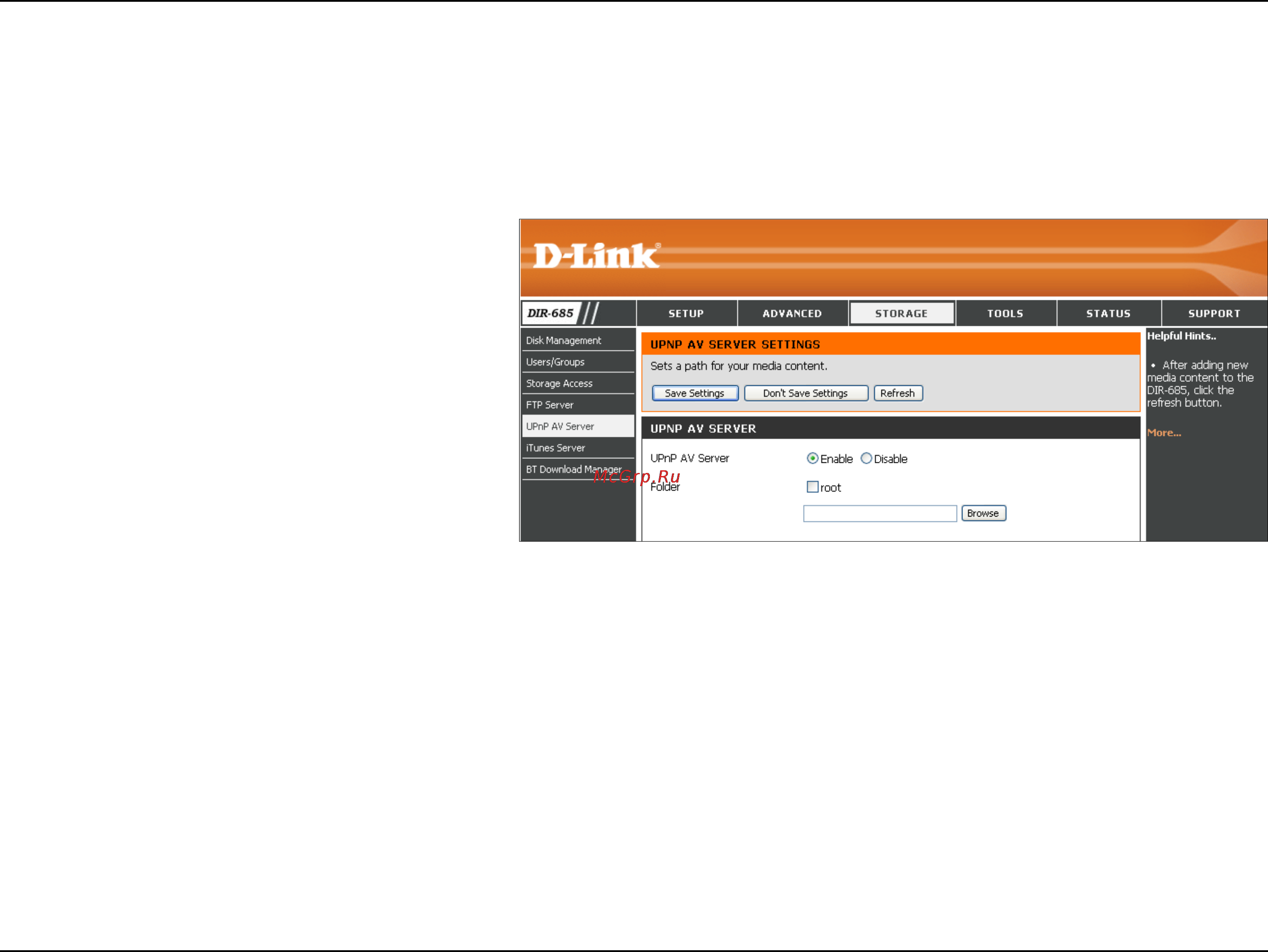

UPnP AV Server
UPnP AV Server:
Folder:
Select Enable or Disable to turn
the DIR-685 UPnP AV server on
or off.
The DIR-685 features a UPnP AV Server. This server provides the ability to stream photos, music and videos to UPnP
AV compatible network media players. If the server is enabled, the DIR-685 will be automatically detected by UPnP
AV compatible media players on your local network.
Specifies the folder or directory
that will be shared by the UPnP
AV server. Select root to share
all les on all volumes, or uncheck
the box and click Browse to select
a specic folder.
