77D-Link DIR-685 User Manual
Section 3 - Configuration

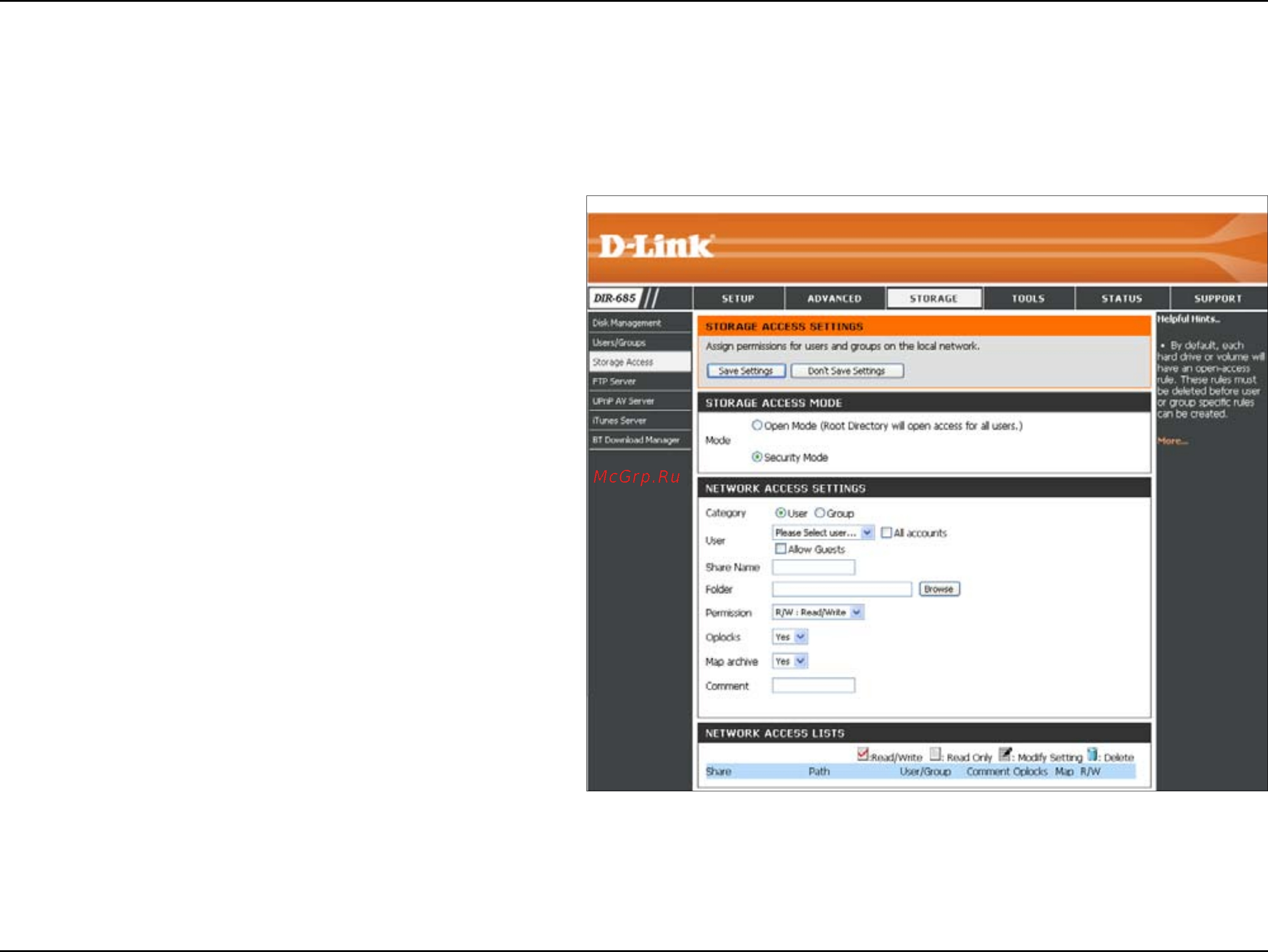

Storage Access
The Storage Access settings allow you to assign users and groups to specic folders or volumes. By default, all volumes
are open to anyone on the local network with read/write access. Before specic user or group rules can be created,
the default rules must be deleted.
Storage Access
Mode:
Category:
User / Group:
Folder:
Permission:
Choose Open Mode to grant all users
unrestricted access to the hard drive or
volume connected to the DIR-685.
Choose Security Mode to reveal more
parameters that allow you to configure
the access rights for the connected hard
drives.
Determines whether the access rule will apply
to a group or individual user.
Select the user or group for the access rule
or you can select All Accounts. If selecting
the User category, tick the Allow Guests
checkbox to allow Guest accounts access to
the hard drive or volumes.
Browse to open and select the folder or
directory you are controlling access to.
Set the user or group permission to Read
Only or to R/W: Read/Write.
