D-Link DIR-685 [27/149] Wired status
![D-Link DIR-685 [27/149] Wired status](/views2/1044553/page27/bg1b.png)
22D-Link DIR-685 User Manual
Section 7 - LCD Screen Options
The MAC address of the router (LAN).
The IP address of the router (LAN).
The subnet mask of the router.
Displays whether the router’s DHCP server is enabled or disabled.
Displays the connection status of each of the 4 LAN ports.
MAC Address:
IP Address:
Subnet Mask:
DHCP Status:
Cable Status Port
1/2/3/4:

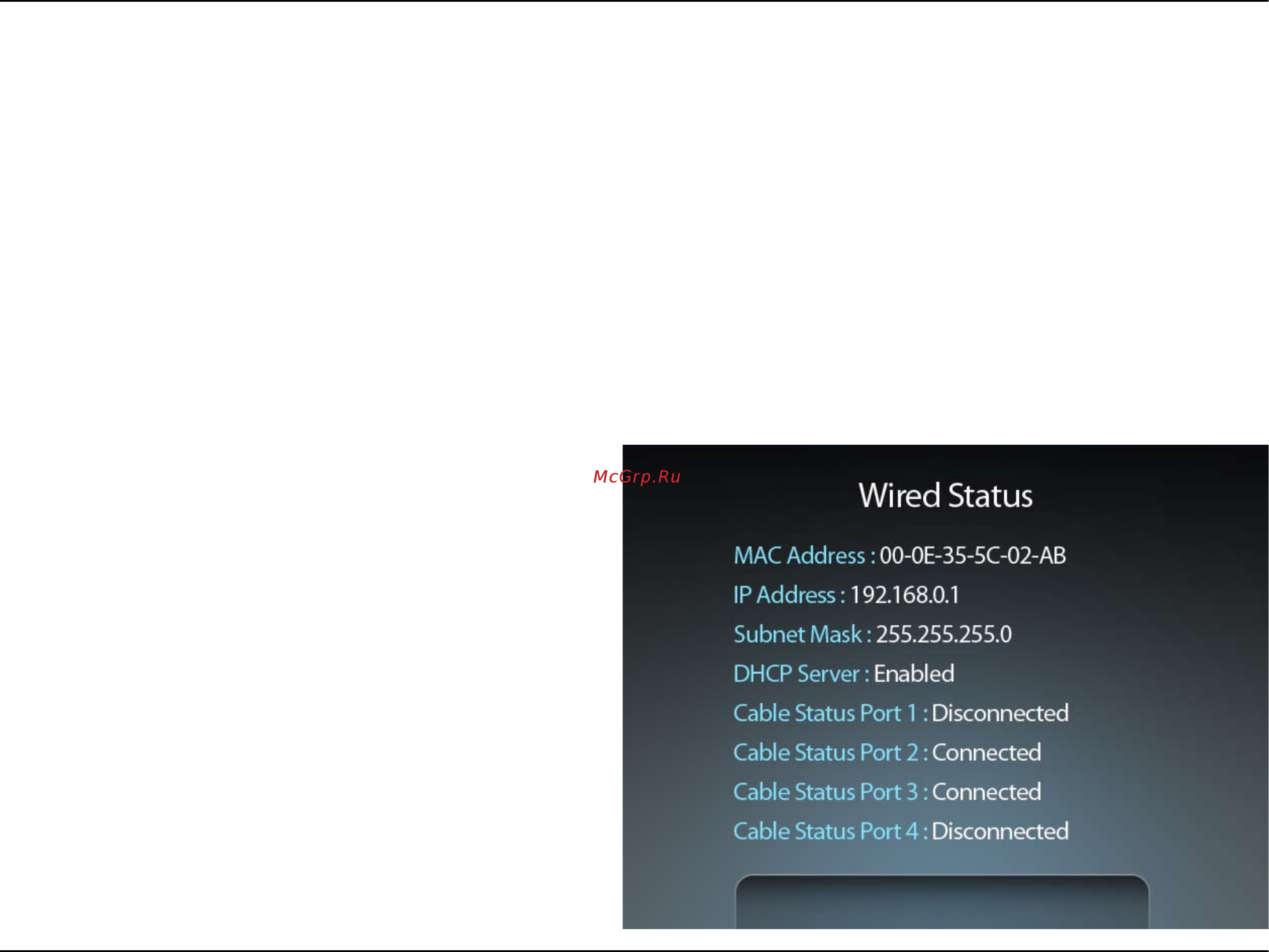

Wired Status
The Wired Status screen displays information about the wired network.
