D-Link DIR-685 [26/149] Internet status
![D-Link DIR-685 [26/149] Internet status](/views2/1044553/page26/bg1a.png)
21D-Link DIR-685 User Manual
Section 7 - LCD Screen Options
The Internet connection type (Dynamic, PPPoE, PPTP, L2TP, or Static).
The connection status of the Internet port.
The connection status of the Internet.
The amount of time that the router has been connected to the Internet.
The MAC address of the Internet port on the router.
The IP address of the router (Internet port).
The subnet mask of the router.
The gateway IP address of the router.
Connection Type:
Cable Status:
Network Status:
Connection Time:
MAC Address:
IP Address:
Subnet Mask:
Gateway:

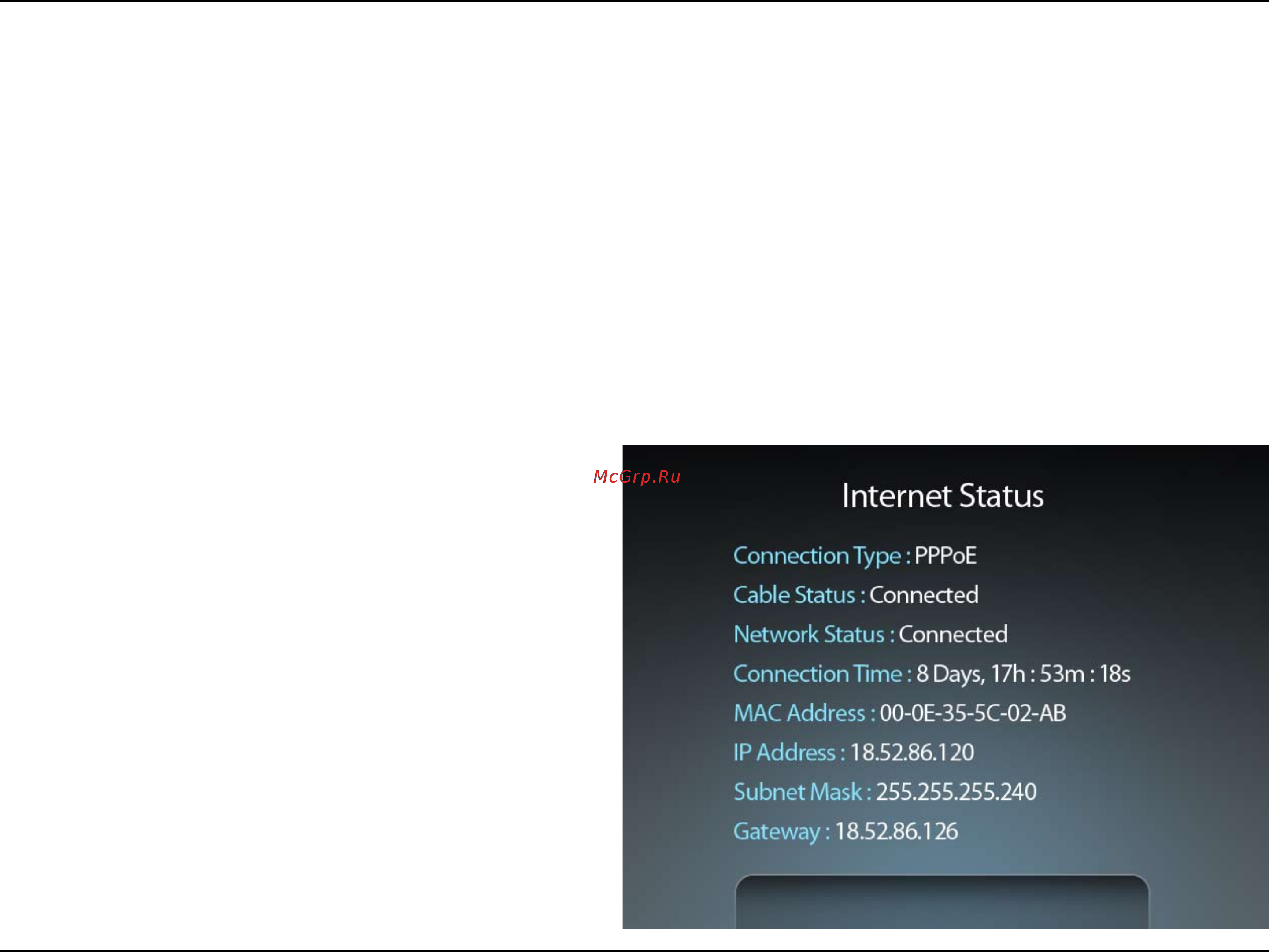

Internet Status
The Internet Status screen displays IP address information and information about the WAN/Internet connection.
