40D-Link DIR-685 User Manual
Section 3 - Configuration

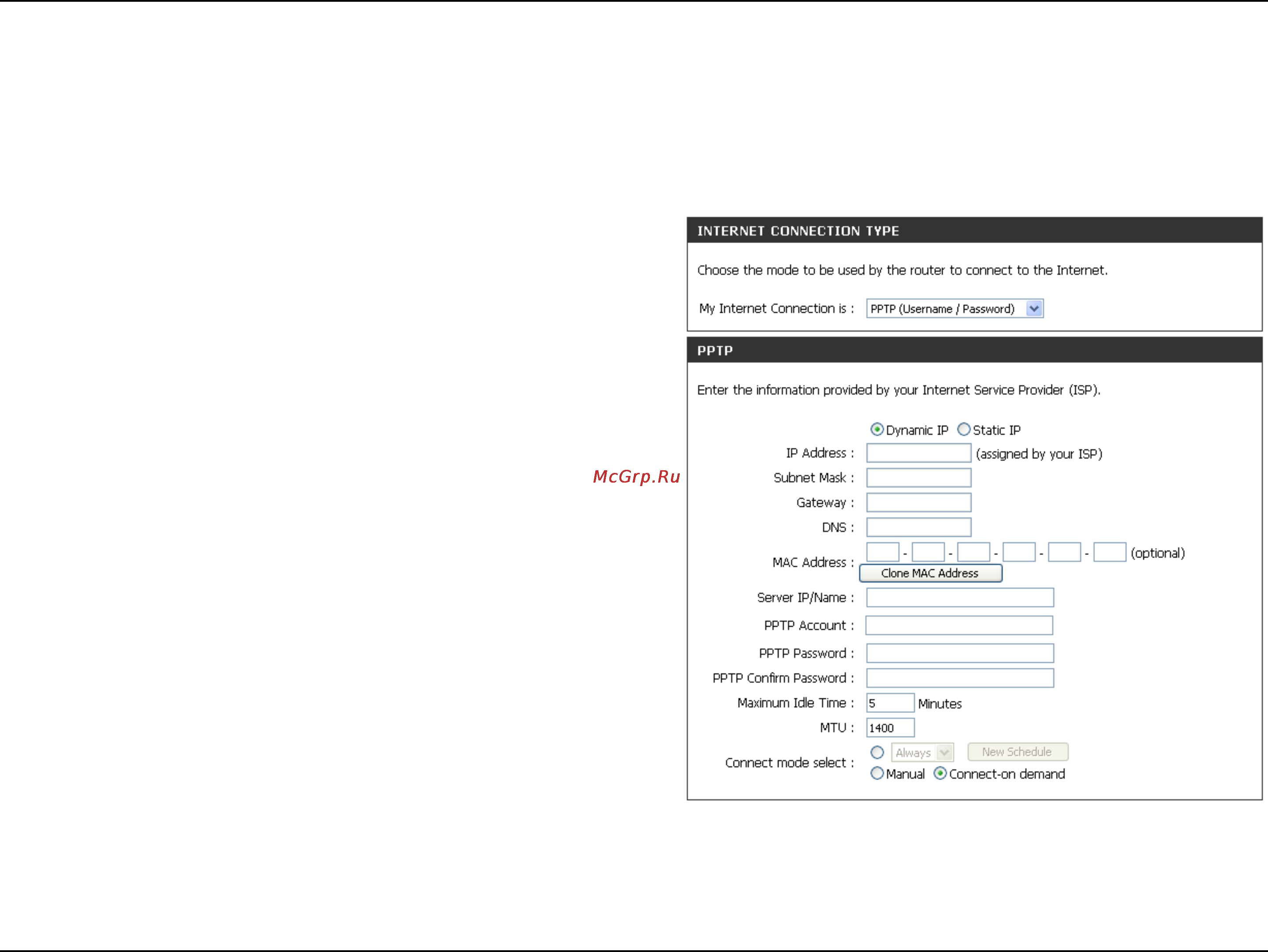

Manual Internet Configuration
PPTP
Choose PPTP (Point-to-Point-Tunneling Protocol ) if your ISP uses a PPTP connection. Your ISP will provide you with
a username and password. This option is typically used for DSL services.
Address Mode:
IP Address:
Subnet Mask:
Gateway:
DNS:
MAC Address:
Server IP/Name:
PPTP Account:
PPTP Password:
Select Static IP if your ISP assigned you the IP address,
subnet mask, gateway, and DNS server addresses. In most
cases, select Dynamic IP.
Enter the IP address (Static PPTP only).
Enter the Subnet Mask of the PPTP connection.
(Static PPTP only).
Enter the Gateway IP Address provided by your ISP.
Enter the IP address of the DNS Server supplied by your
ISP.
The default MAC Address is set to the WAN/Internet port’s
physical interface MAC address on the Broadband Router.
It is not recommended that you change the default MAC
address unless required by your ISP. You can use the
Clone MAC Address button to replace the WAN/Internet
port’s MAC address with the MAC address of your Ethernet
card.
Enter the IP address or DNS Name of the
PPTP Server provided by your ISP.
Enter your PPTP username.
Enter your PPTP password and then retype
the password in the PPTP Conrm Password
box.
