D-Link DIR-685 [66/149] Application rules

61D-Link DIR-685 User Manual

Section 3 - Conﬁguration

To enable an Application Rule, tick the checkbox

next to the corresponding rule.

Enter a name for the rule. You may select a

pre-dened application from the drop-down

menu and click <<.

This is the port used to trigger the application. It

can be either a single port or a range of ports.

This is the port number on the Internet side that

will be used to access the application. You may

dene a single port or a range of ports. You

can use a comma to add multiple ports or port

ranges.

Select the protocol of the rewall port (TCP,

UDP, or Any).

Enable checkbox:

Application

Name:

Trigger:

Firewall:

Trafﬁc Type:

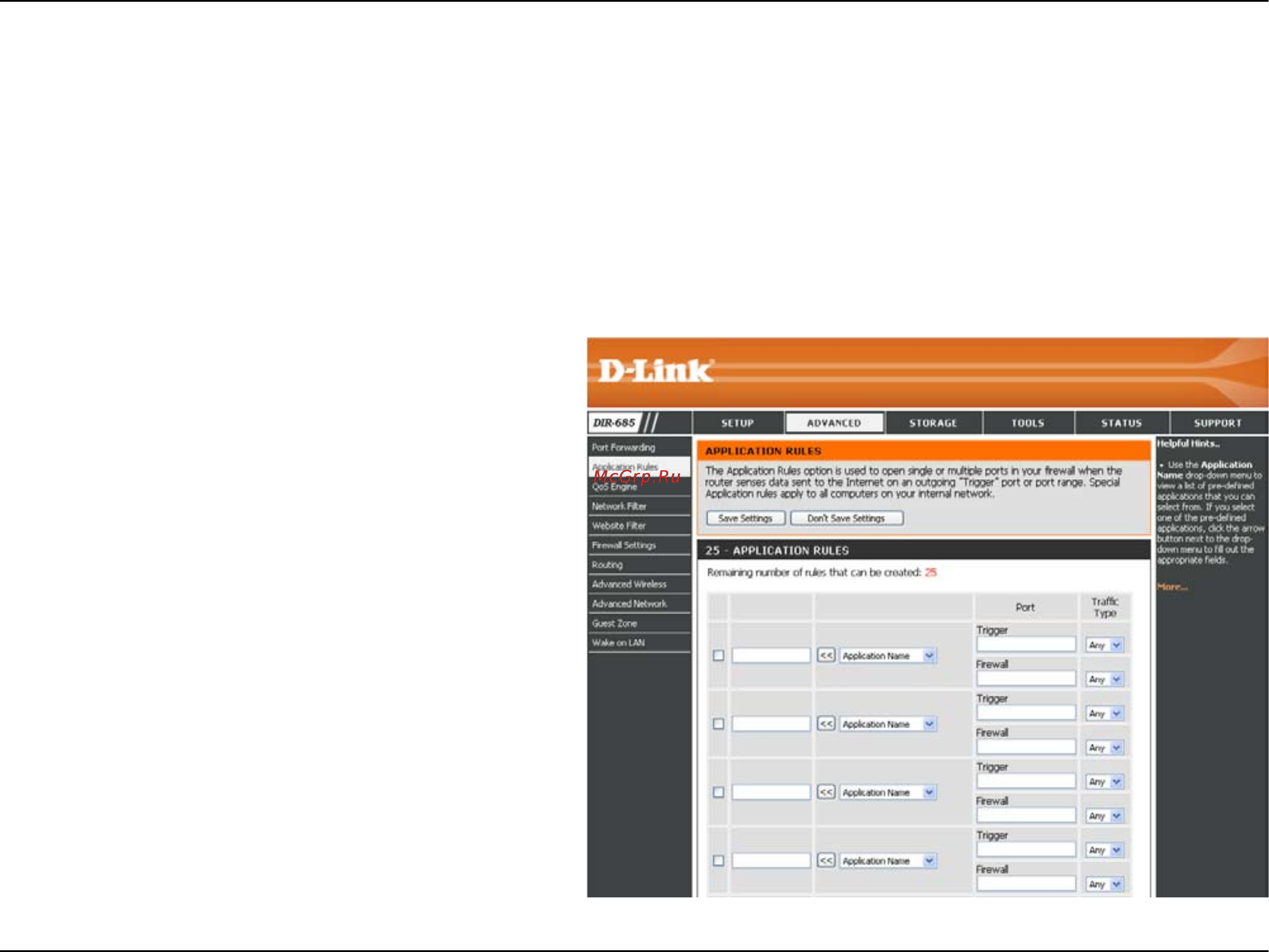

Application Rules

Some applications require multiple connections, such as Internet gaming, video conferencing, and Internet telephony.

These applications have difculties working through NAT (Network Address Translation). Application Rules makes

some of these applications work with the DIR-685. If you need to run applications that require multiple connections,

specify the port normally associated with an application in the “Trigger Port” eld. Select the protocol type as TCP or

UDP. Then enter the rewall (public) ports associated with the trigger port to open them for inbound trafc.

The DIR-685 provides some predened applications in the table on the bottom of the web page. Select the application

you want to use and enable it.
