116D-Link DIR-685 User Manual
Section 4 - Security
Connect Using WCN 2.0 in Windows Vista
®
The router supports Wi-Fi protection, referred to as WCN 2.0 in Windows Vista
®
. The following instructions for setting
this up depend on whether you are using Windows Vista
®
to congure the router or third party software.
When you rst set up the router, Wi-Fi protection is disabled and uncongured. To enjoy the benets of Wi-Fi protection,
the router must be both enabled and congured. There are three basic methods to accomplish this: use Windows
Vista’s built-in support for WCN 2.0, use software provided by a third party, or manually congure.
If you are running Windows Vista
®

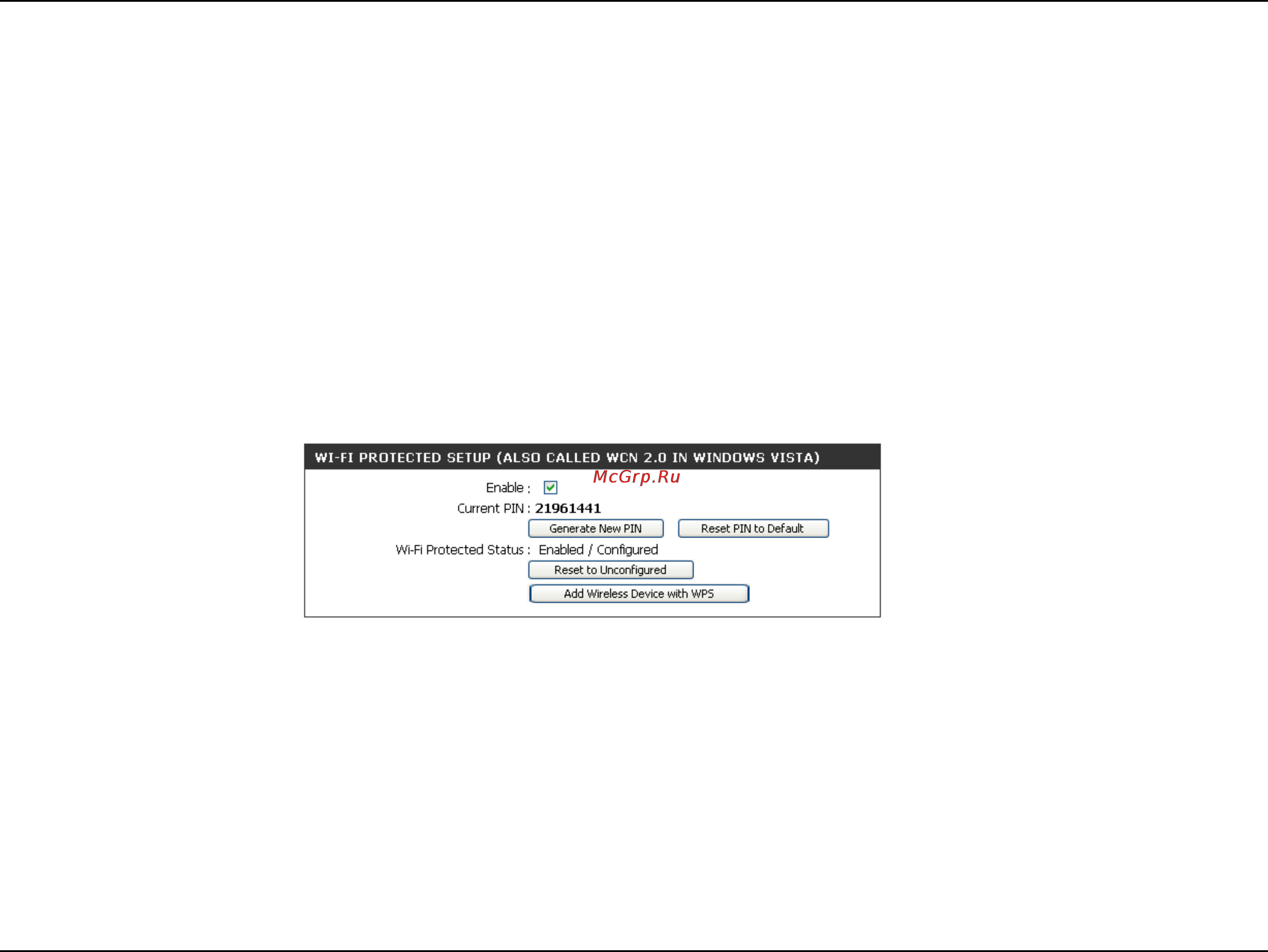

, log into the router and tick the Enable checkbox in the Wireless Setup > Wi-Fi
Protected Setup window. Use the Current PIN that is displayed in the Wi-Fi Protected Setup section or create a
new PIN by clicking the Generate New PIN button. Click the Reset PIN to Default button to reset the PIN to default
settings.
If you are using third party software to set up Wi-Fi Protection, carefully follow the directions. When you are nished,
proceed to the next section to set up the newly-congured router.
