100D-Link DIR-685 User Manual
Section 3 - Configuration

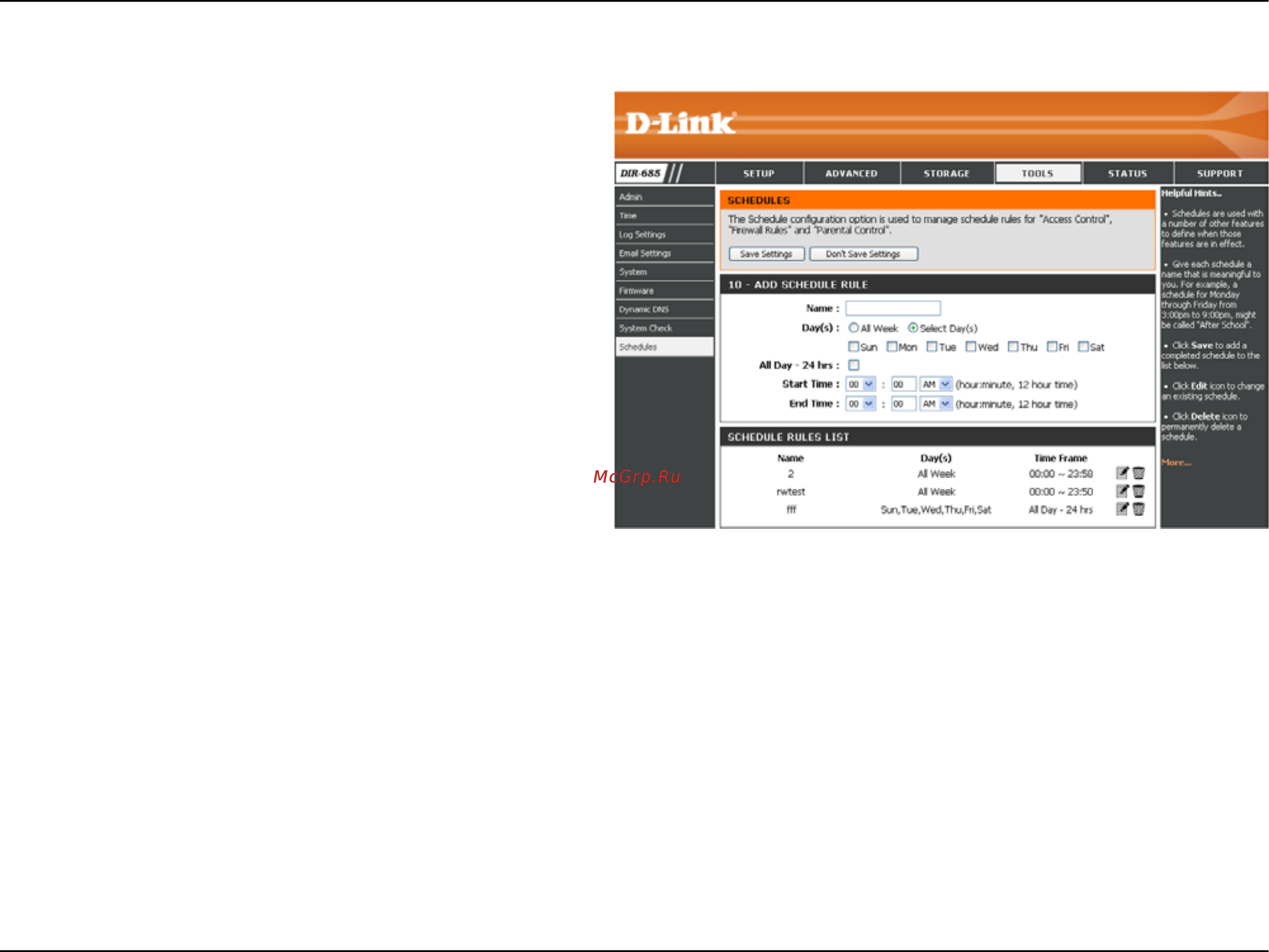

Enter a name for your new schedule.
Select a day, a range of days. You may also
choose All Week to include every day.
Tick All Day - 24hrs or enter a start and end time
for your schedule.
Click Save to save your schedule. You must click
Save Settings at the top for your schedules to
go into effect.
The list of schedules will be listed here. Click
the Notepad icon to make changes or click the
Trashcan icon to remove the schedule.
Name:
Days:
Time:
Save:
Schedule Rules
List:
Schedules
