69D-Link DIR-685 User Manual
Section 3 - Configuration
Set the transmit power of the antennas.
Beacons are packets sent by an Access Point
to synchronize a wireless network. Specify
a value. 100 is the default setting and is
recommended.
This value should remain at its default setting
of 2432. If inconsistent data ow is a problem,
only a minor modication should be made.
The fragmentation threshold, which is specied
in bytes, determines whether packets will be
fragmented. Packets exceeding the 2346 byte
setting will be fragmented before transmission.
2346 is the default setting.
(Delivery Trafc Indication Message) 1 is the default setting. A DTIM is a countdown informing clients of the next window for
listening to broadcast and multicast messages.
Select Short Preamble or Long Preamble.
Clear To Send (CTS) is a mechanism that wireless devices use when the surrounding environment is ‘dirty’ (i.e. many senders
and receivers over the same wireless frequency).
When the CTS Mode is set to Always the transmitting device will need to send out an RTS (Request To Send), and the
intended receiving device needs to send out a CTS (Clear To Send), before the actual data can be sent.
Setting the CTS Mode to Auto indicates that the router will decide whether or not the CTS mechanism should be used or
not, depending on the current environment and data length.
Transmit Power:
Beacon interval:
RTS Threshold:
Fragmentation:
DTIM interval:
Preamble Type:
CTS Mode:

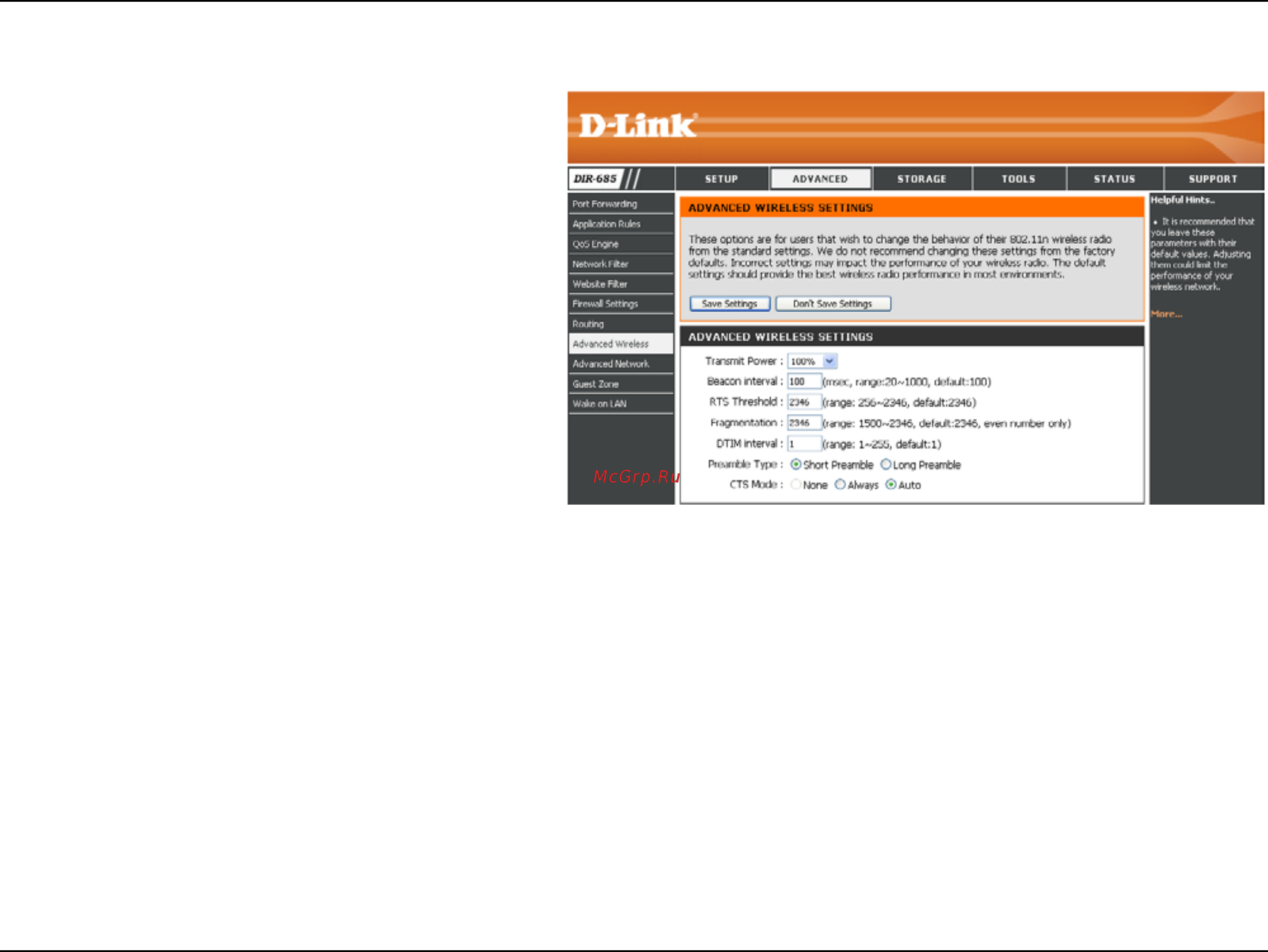

Advanced Wireless
