64D-Link DIR-685 User Manual
Section 3 - Configuration

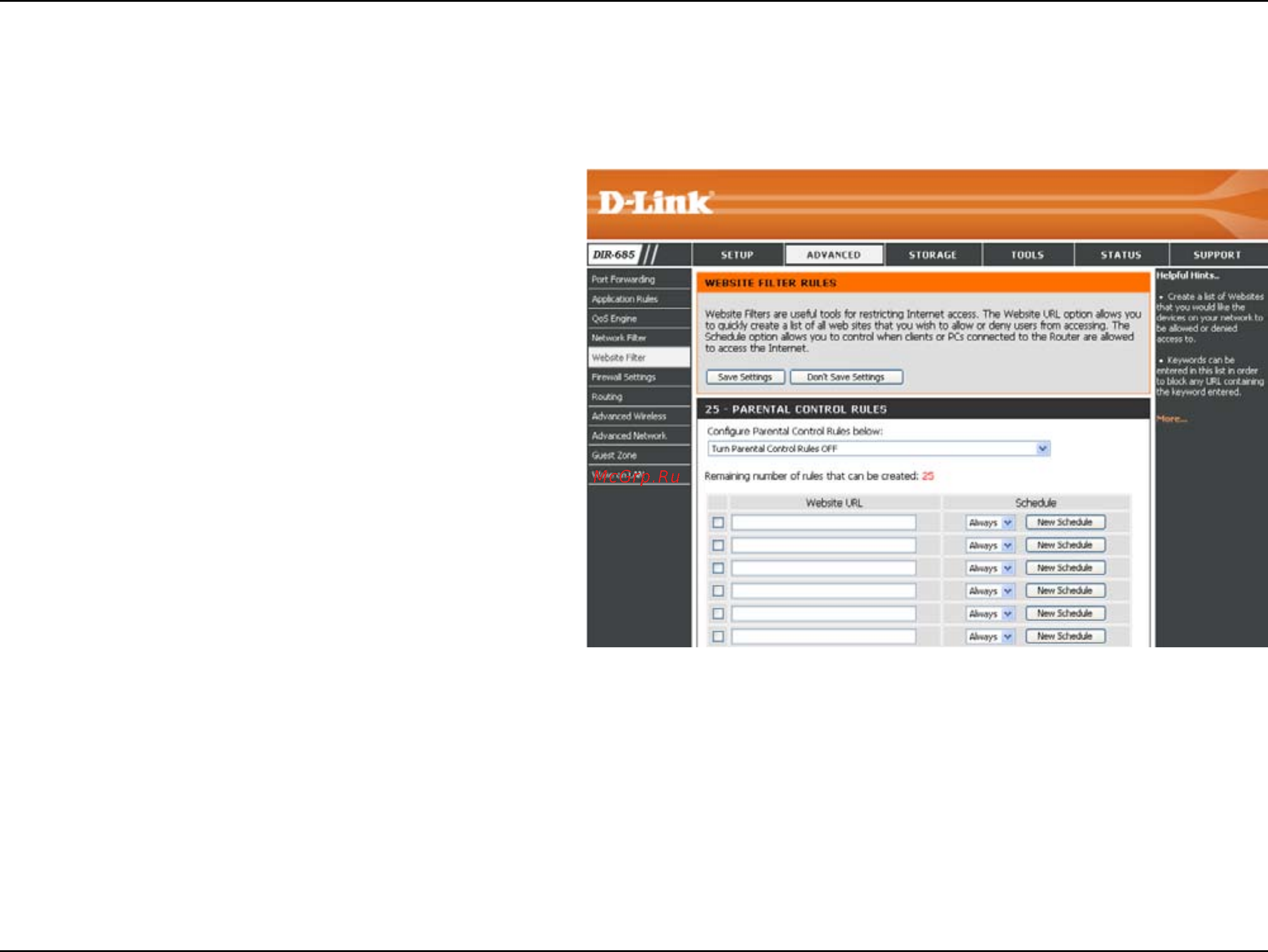

Website Filter
Website Filters are used to allow you to set up a list of allowed Web sites that can be used by multiple users through
the network. To use this feature select to Allow or Deny, enter the domain or website and click Save Settings.
Use the drop-down menu to select one of
the following rules:
Turn Parental Control Rules OFF•
Turn Parental Control Rules ON and •
ALLOW computers access to ONLY these
sites
Turn Parental Control Rules ON and •
DENY computers access to ONLY these
sites
To enable a Website Filter rule, tick the
checkbox next to the corresponding rule.
Enter the URL of the Website you would like
to lter.
Use the drop-down menu to dene when
the Website Filter will be enabled. The
schedule may be set to Always, which will
allow the particular service to always be
enabled. Click the New Schedule button to
list the Schedules that have been dened in
the Tools > Schedules window (see page
88 for instructions on how to create a New
Schedule).
Configure
Parental Control
Rules:
Enable
checkbox:
Website URL:
Schedule:
