35D-Link DIR-685 User Manual
Section 3 - Configuration

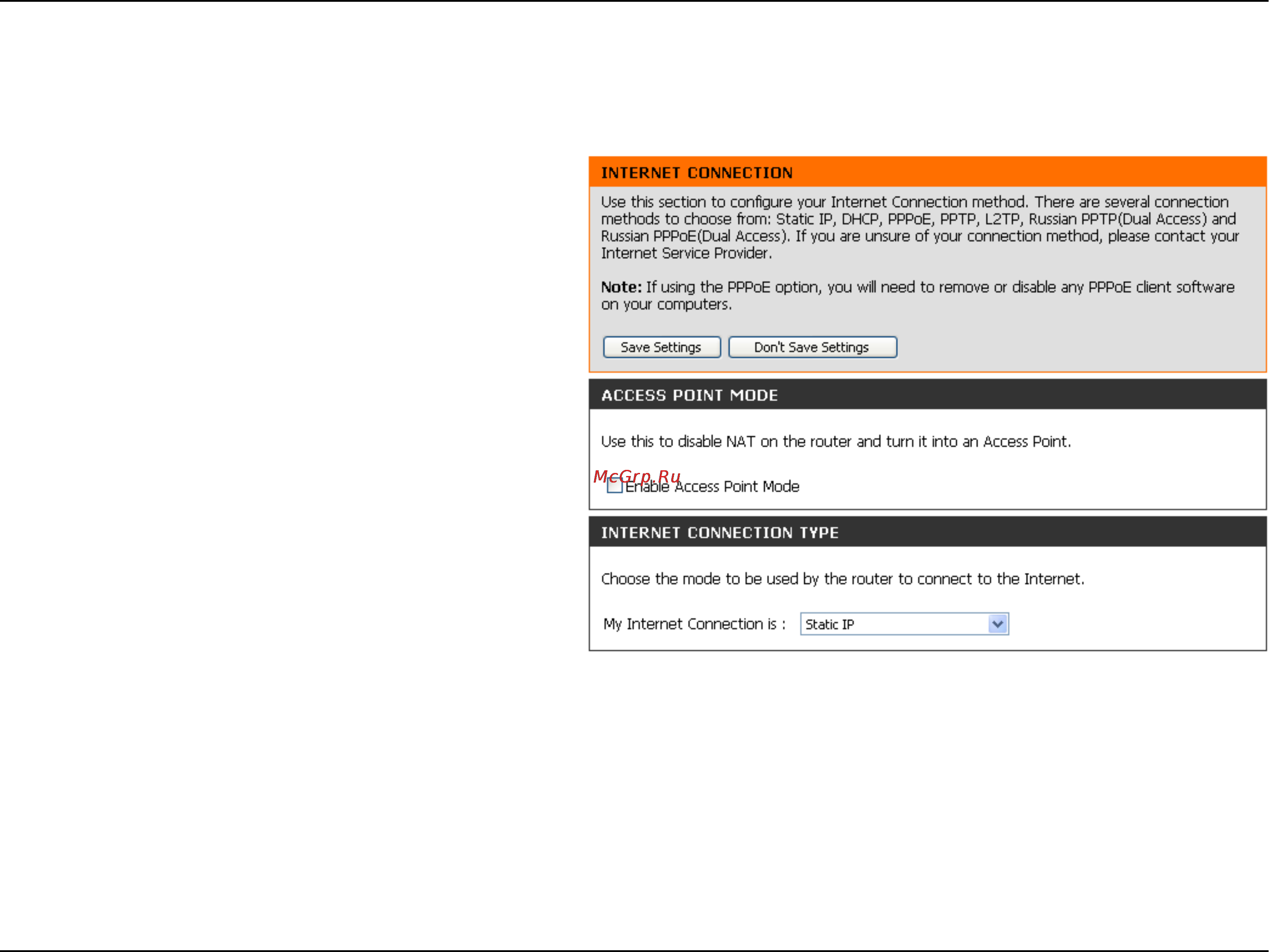

Tick the Enable Access Point Mode checkbox
if you want to disable NAT on the router and turn
it into an Access Point.
Use the My Internet Connection is drop-down
menu to select the mode that the router should
use to connect to the Internet.
Access Point
Mode:
Internet
Connection
Type:
Manual Internet Connection Setup
