109D-Link DIR-685 User Manual
Section 4 - Security

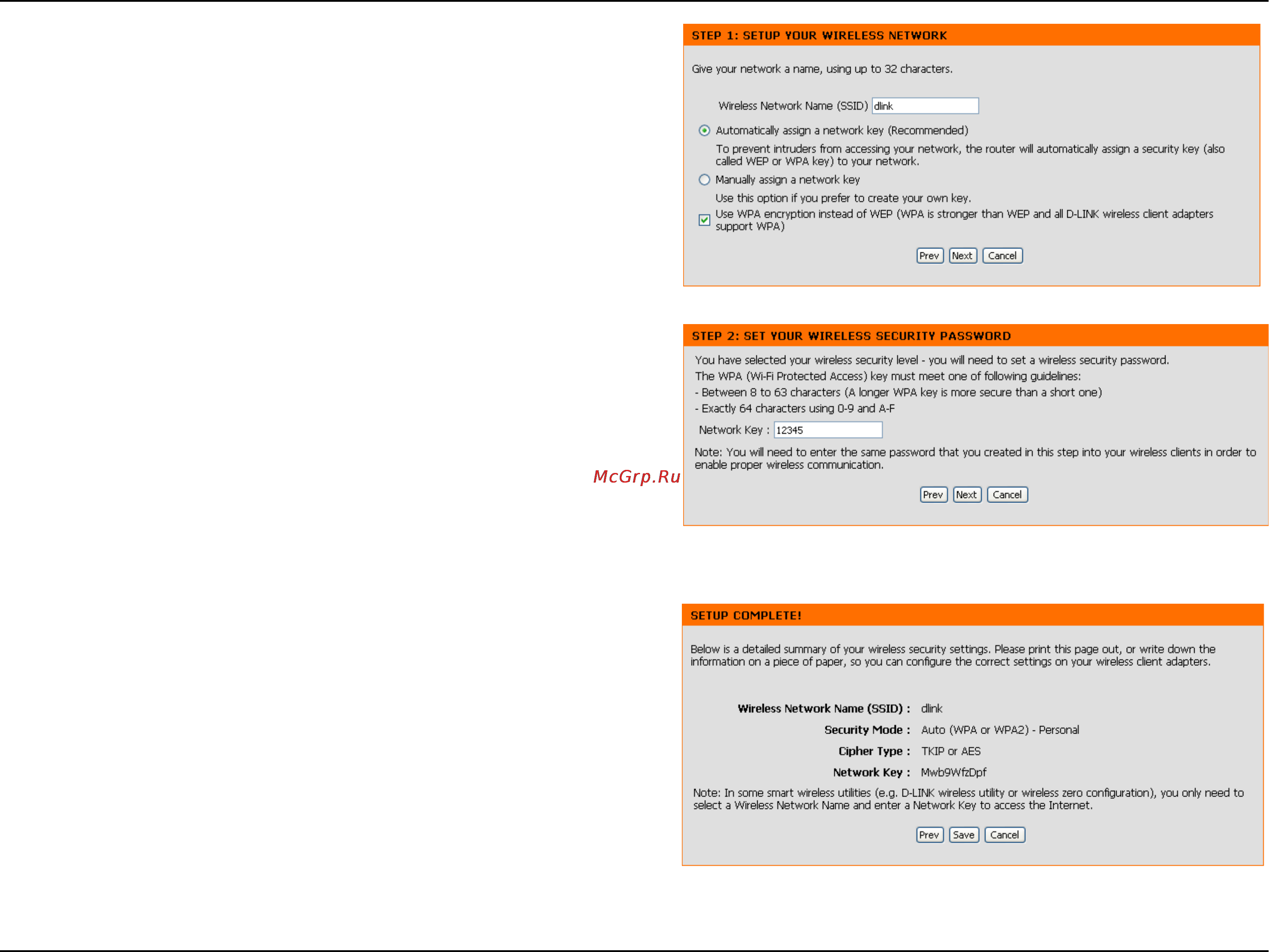

The summary window will display your settings. If you
chose the Automatic option, write down the security key and
enter this on your wireless clients. Click Save to save your
settings.
If you selected Manually, the following screen will appear.
Type a Wireless Security Key in the • Network Key eld.
Click • Next to complete the Wireless Setup Wizard
Type your desired wireless network name (SSID).
Automatically: Select this option to automatically
generate the router’s network key and click Next to
complete the Wireless Setup Wizard.
Manually: Select this option to manually enter your
network key and click Next.
