DLB-1200 Network Load Balancer User Manual
2
、
I
NSTALLATION
2-1、Requirements
♦ One or two DSL or Cable modems, each with an Internet Access account
from ISP.
♦ Network cable. Use standard 10/100Base T network (UTP) cable with RJ45
connectors.
♦ TCP/IP network protocol must be installed on all PCs.

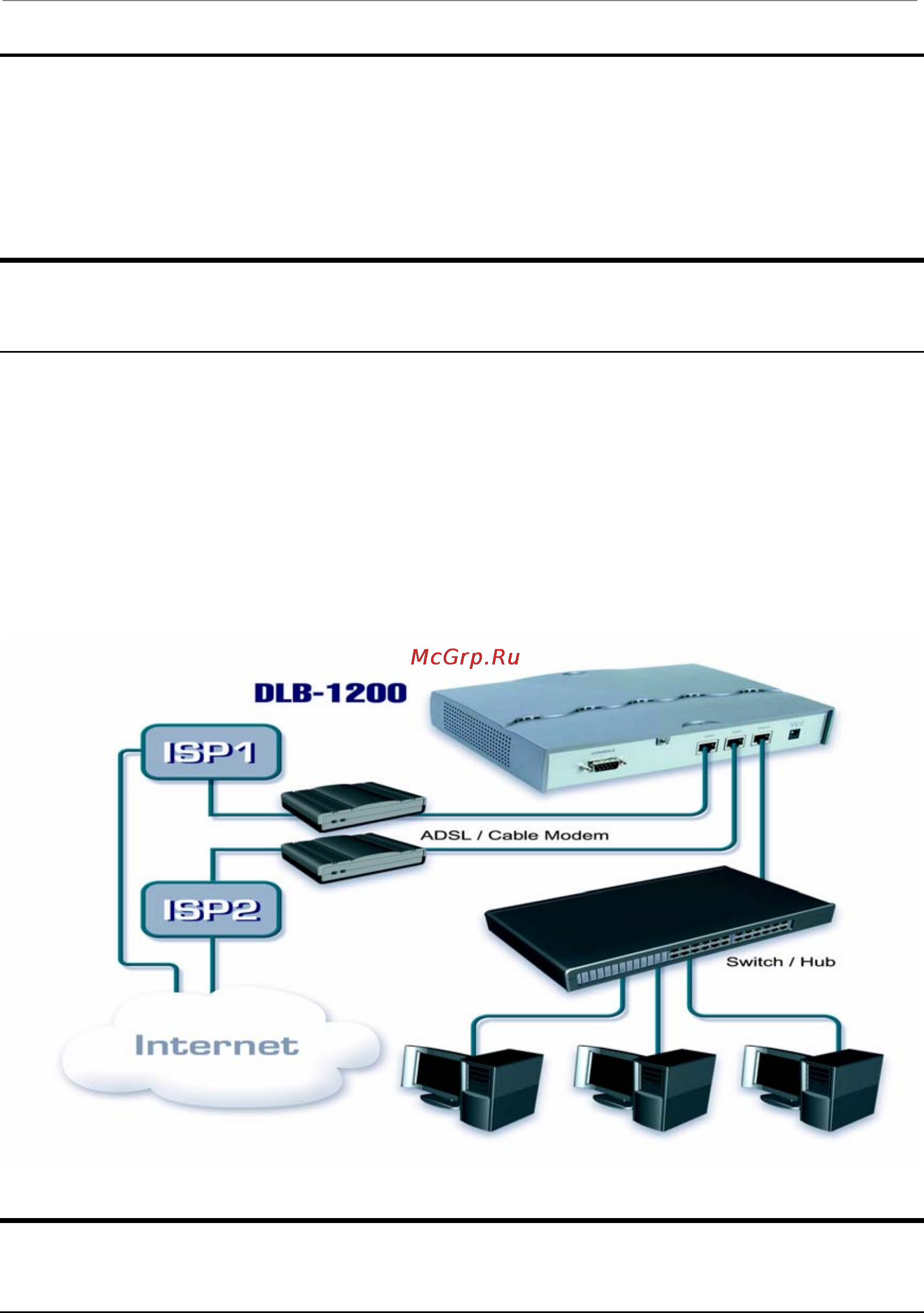

2-2、Procedure
1、Ensure the DLB-1200 and DSL/Cable Modem are power OFF.
2、WAN port connection
Please use a standard UTP cable or the cable supplied with your DSL/Cable Modem to
connect DLB-1200 and DSL/Cable Modem. If you have only one Broadband modem, connect
it to the "WAN 1 External Port".
9
