DLB-1200 Network Load Balancer User Manual
A
PPENDIX
A
Windows TCP/IP Setup
If using the default DLB-1200 settings, and the default Windows 95/98/ME/2000 TCP/IP
settings, no changes need to be made. By default, the DLB-1200 will act as a DHCP Server,
automatically providing a suitable IP Address (and related information) to each PC after the PC
boots up.
For all non-Server versions of Windows, the default TCP/IP setting is to act as a DHCP client.
If you wish to check your TCP/IP settings, the procedure is described in the following sections.
Checking TCP/IP Settings - Windows 9x/ME

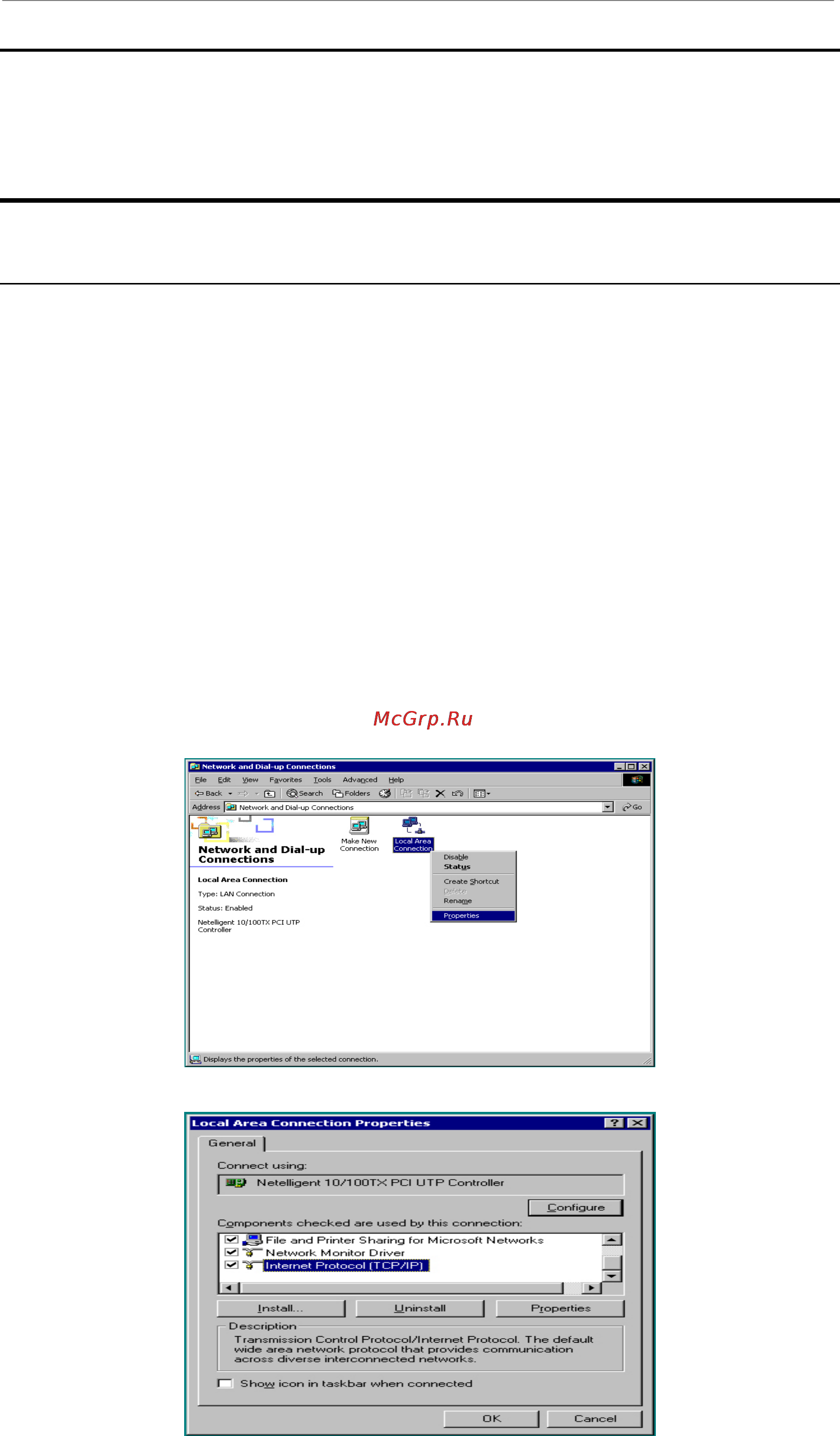

1、 Select Control Panel - Network and Dial-up Connections. You should see a screen like the
following.
2、Select the TCP/IP protocol for your network card.
37
